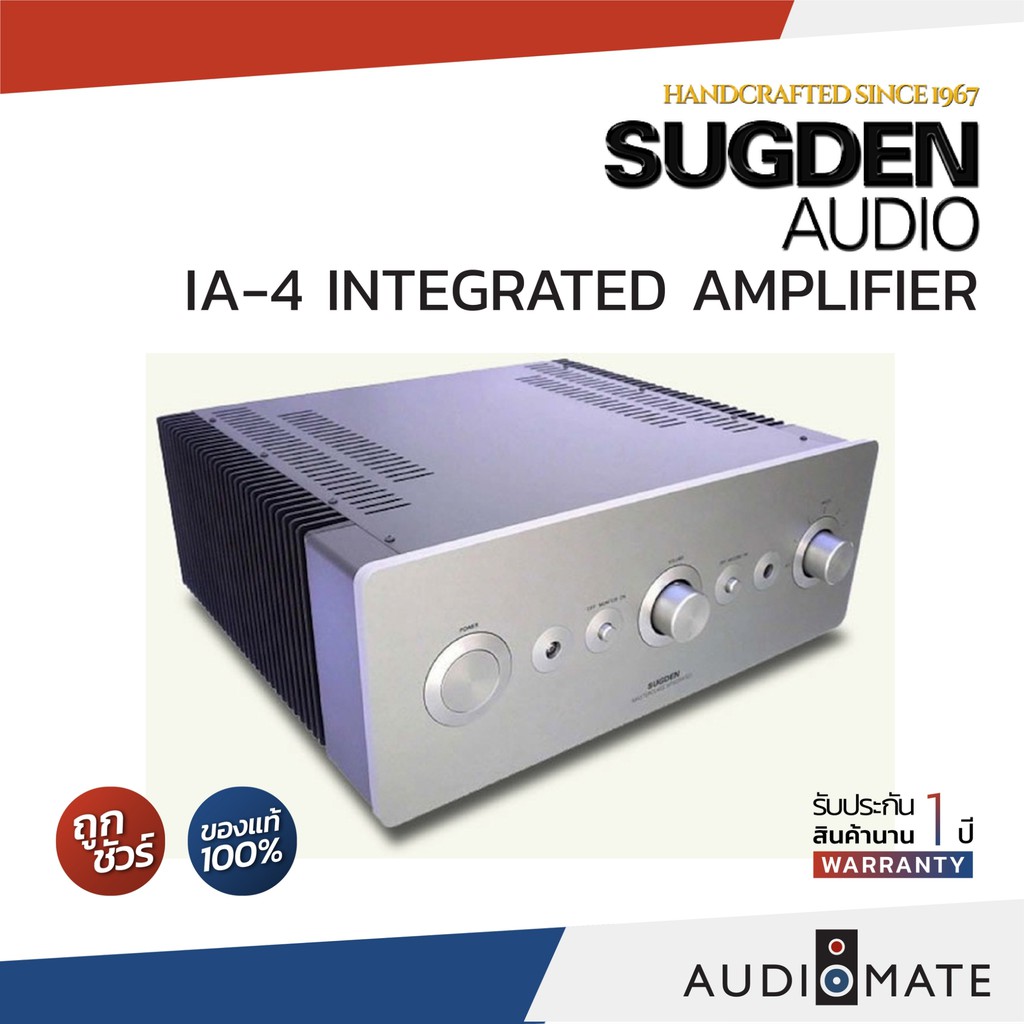

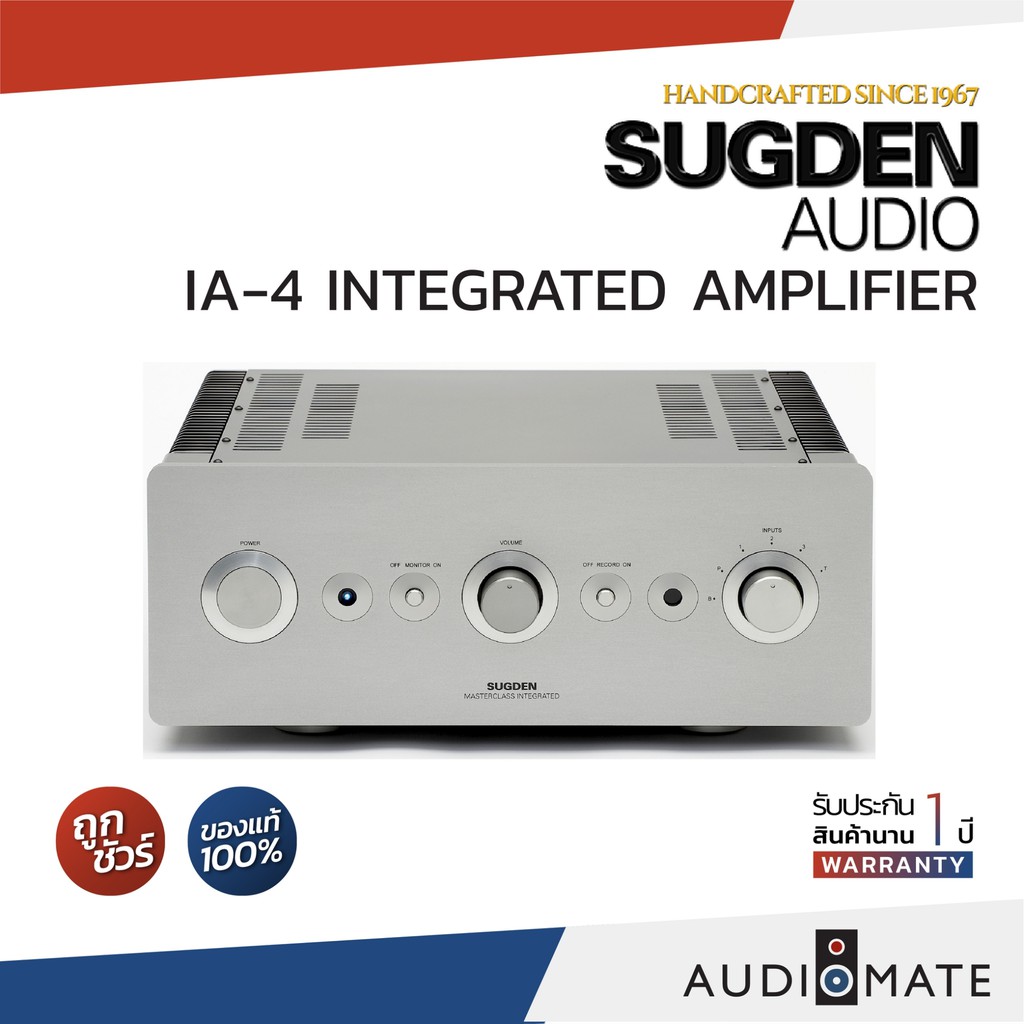

SUGDEN IA-4 (Avialable in Graphite Only**)

A large integrated, pure Class A, solid state power amplifier which can project and fill the an enormous holographic sound stage with music.

An extraordinary, organic, euphonic, acoustic performance from an integrated source. This ambitious concept of amplification combines a wide bandwidth state of the art preamplifier with an ultimate development of the original Sugden A21 pure Class A power stages.

The IA-4 is Sugdens flagship and most popular integrated amplifier. Weighing a substantial 20 kilos the IA-4 has a purposeful look and impressive build quality. Plenty of input and output facilities are on offer including a high quality phono stage. The class A power output circuit has been

upgraded from the A21 series with a larger power supply and improved soothing and output capacitors. Gold plated circuit boards, full relay switching and a precision input selector switch offer further detailing. The pre-amplifier section of the IA-4 is a bespoke design, with surprising clarity and detail.

The most noticeable feature is the ability to create a large performance with depth and height on any type of music.



Facilities

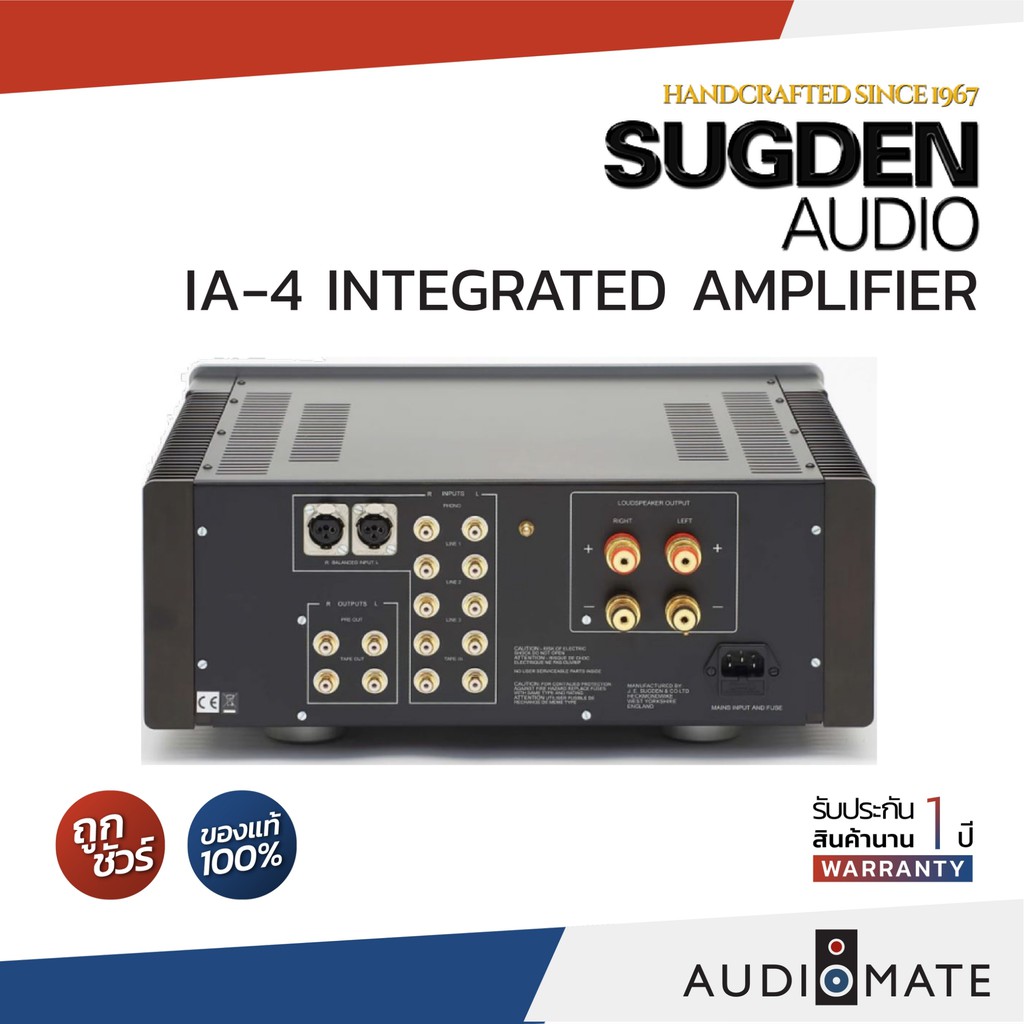

Inputs ​

Three line

level, tape, MM phono, balanced



Outputs

Variable

pre-out, fixed out, loudspeaker out


Volume Control

Remote control RC5

compatible


Tape

Monitor

and record off


​Specifications


Line Input sensitivity

125mV

Phono Input Sensitivity

2mV (MM)

Power Output

33 Watts per channel

Frequency Response

+/-1dB 14Hz-200kHz

Bandwidth

6Hz-300kHz

Signal to Noise

>84dB

Gross Weight (packed)

20kgs

Dimensions

165 x 430 x 440mm (hwd)
