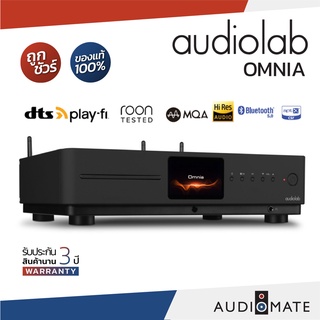

Audiolab Omnia 50W ALL IN ONE CD and Streaming System

The All Encompassing Audio Solution
Blurring the lines that generally differentiate hi-fi and lifestyle, Omnia brings all of the pedigree that helps make audiolab electronics the connoisseur’s choice. Yet, indulgence in design, material aesthetics, and useability mean it has all of the functionality to make it a sleek, convenient and easy-to-use center-piece, for an uncompromising home audio system.

The audiolab Omnia maintains the award-winning, instantly recognisable, audiolab design cues. Unfussy yet striking in appearance, the curved, brushed aluminum chassis is ‘typical audiolab’ but evolved to suit the modern-day living environment. Omnia is attractive but discreet, offering the perfect balance for living rooms and listening rooms alike.

In a world where music is more available than ever and sources more varied than ever, Omnia doesn’t discriminate. However you listen to your music, Omnia has got you covered. To sum it up, the audiolab Omnia is a cd player, integrated amplifier, wireless streaming player, DAC, headphone amplifier, and pre-amp – in one single unit!

High-Performance CD Drive
Extremely robust and reliable; the Omnia’s CD drive builds on the class-leading 6000CDT CD transport with a read-ahead digital buffer to reduce disc-reading failures. Such is the performance of this CD mechanism, Omnia is able to play scratched and damaged CDs that are unreadable by conventional mechanisms.

General Description

Design Philosophy and Core Technology
- 2x50W (8ohm) / 2x75W (4ohm) Class AB
- ES9038Q2M 32-bit DAC
- 4.3" (800x480mm) large size full view IPS LCD
- Built in certi?ed hardware MQA Full decoder (PC USB, Coax/Optical)
- CD playback compatible with CD, CD-R, CD-RW discs
- USB memory device support (MP3/WMA/AAC/WAV)
- DTS Play-Fi technology (IEEE 802.11 a/b/g/n/ac)
- Streaming service support includes Amazon Music, Spotify, TIDAL, KKBox, SiriusXM, Napster, Internet Radio, Deezer, iHeartRadio, PANDORA, Qobuz, QQmusic and more
- Multi-room / multi speaker group support
- Bluetooth 5.0 (aptX/aptX LL) streaming
- Low Noise Moving Magnet Phono stage
- Dedicated Current-Feedback Headphone AMP
- Integrated / PRE-POWER / PRE only Modes
- Android / iOS / Kindle Fire / Windows PC Control Support
USB firmware upgrade input
Inputs
- 3 x Analogue, 1 x Phono (MM) , 1 x Power Ampli?er, 2 x SPDIF (Coax),
- 2 x SPDIF (Optical), 1 x DTS Play-Fi Streaming, 1xPC USB(USB B),
1xUSB HDD(USB A), 1 x Bluetooth(aptX/aptX LL), 1 x 12V Trigger
Outputs
- 1 x PRE Amplifer, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling FrequencyOptical / Coaxial:44.1kHz ---192kHz
Optical / Coaxial: 44.1kHz ---192kHz
PC USB: 44.1kHz - 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifer Section
- Gain+8dB (Line)
- +47dB (Phono MM)
- Input Sensitivity720mV (Line, Volume = 0dB)
- 3.1mV (Phone MM, Volume=0dB)
- Input Impedance10K (Line)47K // 100pF (Phono MM)
- Total Harmonic Distortion (THD)< 0.0004% (1KHz @ 2V, Volume = 0dB)
- Frequency Response20Hz-20kHz (+/-0.1dB)
- Output Voltage2.3V max. (Volume = 0dB)
- Output Impedance100 ohm
- Signal-to-Noise Ratio>110dB (Line,A-weighted)
- 76dB (Phono MM,A-weighted)
- DAC D to A ConverteES9038Q2M
- Total Harmonic Distortion (THD)< 0.0006% (1KHz @ 0dBFS)
- Output level (0dBFS, 1KHz)2.1Vrms
- Max. Sampling FrequencyOptical, Coaxial: 192KHz
- Ethernet,Wi-Fi: 192KHz
- USB A:48kHz
- PC USB: PCM768kHz, DSD512
- Signal-to-noise Ratio (S/N)114dB (A-weighted)
- Power Amplifier Section
- Gain+29dB
- Rated Power Output2 x 50W (8 ohm, THD < 1%) 2 x 75W (4 ohm, THD < 1%)
- Frequency Response20Hz-20kHz (+/-0.3dB)
- Total Harmonic Distortion (THD)< 0.003% (1kHz @ 40W / 8ohm)
- Input Sensitivity720mV
- Signal-to-Noise Ratio (S/N)110dB (A - weighted)
- Max. Output Current9A
- Headphone Amplifier
- Total Harmonic Distortion (THD)< 0.01% (1kHz, 50mW )
- Output Impedance10ohm
- Load impedance20-600 ohm
General
- Standby Power Consumption< 0.5W
- Net Weight9.1kg
- Gross Weight11kg
- Dimensions (mm) (W x H x D)440 x156 x 327
- Carton Size (mm) (W x H x D)540 x 412 x 210
- FinishBlack / Silver
- Power Requirements (depending on region)220-240V ~ 50/ 60Hz100-120V ~ 50/ 60Hz
- Standard AccessoriesPower Cord, Remote Control, User Manual, Antennas, etc.
