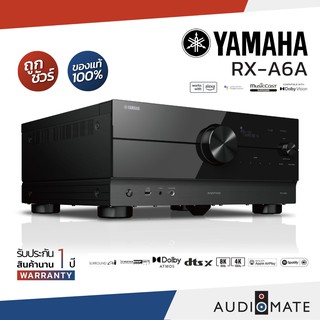

YAMAHA RX-A6A 9.2-Channel MusicCast A/V Receiver

Movie and video game lovers will enjoy immersive multichannel sound with the Yamaha AVENTAGE RX-A6A 9.2-Channel MusicCast A/V Receiver. It delivers up to 150W of power per channel at 8 ohms and features Dolby Atmos and DTS:X compatibility for object-based audio support. Built-in Bluetooth and AirPlay 2 support allows the receiver to wirelessly stream music from compatible sources, such as smartphones and tablets, while Yamahas Compressed Music Enhancer helps to deliver optimized sound quality.

Onboard Wi-Fi and Ethernet connectivity allows the AVENTAGE RX-A6A to access music from your network or the internet. Amazon Alexa, Google Assistant, and Apple Siri compatibility via your voice assistant-enabled devices on the same network let you control certain functions of the receiver with just your voice. With seven HDMI inputs and three outputs, this receiver can act as a video switcher for your HD source components. It will pass through HDR 4K UHD signals for enhanced viewing of compatible content when paired with a compatible display. YPAO R.S.C. multipoint sound optimization calibrates the receiver to your speakers and room setup for a tailored listening experience.

Features
Up to 150W per Channel at 8 Ohms
YPAO R.S.C. Multipoint Sound Calibration
4K UHD Pass-Through
HDR10, Dolby Vision, HLG Pass-Through
7 x HDMI-In / 3 x HDMI-Out with eARC
Stereo XLR Input and Pre-Output
Built-In Wi-Fi and Bluetooth
Alexa, Google Assistant, Siri Control
Apple AirPlay 2 Connectivity
Front-Panel USB Connectivity


Specs

Amplifier
Channels9.2
Power Output per Channel2-Channel Driven:
150 W at 8 Ohms / 20 Hz to 20 kHz / 0.06% THD
165 W at 8 Ohms / 1 kHz / 0.09% THD
1-Channel Driven:
185 W at 8 Ohms / 1 kHz / 0.9% THD
200 W at 6 Ohms / 1 kHz / 0.9% THD
230 W at 4 Ohms / 1 kHz / 0.9% THD
Frequency Response10 Hz to 100 kHz +0/-3 dB (Direct, Pure Mode)
Speaker Impedance4 to 8 Ohms
Tone ControlBass (50 Hz): ±6 dB
Treble (20 kHz): ±6 dB
Damping Factor>120
Audio Processing
DTS CompatibilityDTS, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X
Dolby CompatibilityDolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
Auro 3D SupportNo
Upmixing TechnologyDTS Neural:X, Dolby Atmos Height Virtualization Technology
Supported File Formats11.2 MHz DSD, 2.8 MHz DSD, 5.6 MHz DSD, AAC, AIFF, ALAC, FLAC, MP3, WAV, WMA
DAC384 kHz / 32-Bit (ESS SABRE ES9026PRO)
Video
HDR CompatibilityHDR10, Dolby Vision, Hybrid Log Gamma
Pass-Through Support4K60p
UpscalingNone
GUIYes
Connectivity
Rear A/V Inputs7 x HDMI 2.1
1 x 3RCA Component
2 x RCA Composite
3 x Optical TOSLINK
2 x Digital Coaxial
1 x Stereo XLR
5 x Stereo RCA
1 x Stereo RCA (Phono) with Ground Screw
Rear A/V Outputs3 x HDMI 2.1
1 x Stereo XLR Pre-Out
1 x 11-Channel RCA Pre-Out
1 x Stereo RCA Zone 2
1 x Stereo RCA Zone 3
2 x RCA Subwoofer
Front I/O1 x USB Type-A
1 x 1/4" / 6.35 mm Headphone Output
1 x 1/8" / 3.5 mm Setup Mic Input
Other Rear I/O1 x FM Antenna Terminal Input
1 x AM Antenna Terminal Input
2 x Bluetooth/Wi-Fi Antenna Terminal
2 x 1/8" / 3.5 mm (12 V Trigger) Output
1 x 1/8" / 3.5 mm (Remote) Input
1 x 1/8" / 3.5 mm (Remote) Output
1 x RJ45 (Ethernet)
Speaker Connectors11 x Binding Post Pairs
HDCP SupportVersion 2.3
HDMI Compression ModesNot Specified by Manufacturer
Audio Return Channel (ARC)ARC, eARC
HDMI CECYes
Media Card SlotNone
Bi-Amp CapabilityYes
Input ImpedancePhono: 47 Kilohms
RCA: 47 Kilohms
XLR: 200 Kilohms
Input Sensitivity Phono: 4.5 mV
RCA: 250 mV
XLR (Attenuator Off): 260 mV
XLR (Attenuator On): 520 mV
Rated Output / Impedance Pre-Out, Subwoofer Pre-Out: 1 V / 470 Ohms
Zone 2 Line-Out, Zone 3 Line-Out: 470 mV / 470 Ohms
Analog: 2 V / 470 Ohms
Signal to Noise Ratio Phono: 95 dB (Direct Mode / IHF-A)
Pre-Amp: 110 dB (Direct Mode / IHF-A)
Wireless Connectivity
Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Wireless Security AES, WEP, WPA2-PSK
Bluetooth4.2
Bluetooth ProfilesA2DP, AVRCP
Supported Audio Codecs AAC, SBC
Bluetooth Range32.8 / 10 m
Wireless Audio Protocols AirPlay 2, Music Cast
Control
Virtual Assistant Support Amazon Alexa, Apple Siri, Google Assistant
Tuner Section
Tuner Type AM, FM
Number of Tuner Presets FM: 40 Stations
Radio Frequencies AM: 530 to 1710 kHz
FM: 87.5 to 107.9 MHz
Sensitivity FM Mono at 50 dB: 3 µV / 20.8 dBf
Signal to Noise Ratio FM:
68 dB (Stereo)
69 dB (Mono)
Power
AC Input Power120 VAC, 60 Hz
Power Consumption Active: 500 W
CEC Standby: 1.9 W
Network Standby: 1.8 W
Bluetooth Standby: 1.7 W
Standby: 0.4 W
Physical
Dimensions (W x H x D)17.1 x 7.6 x 17.4" / 43.5 x 19.2 x 44.2 cm
17.1 x 10.7 x 17.4" / 43.5 x 27.1 x 44.2 cm (Antenna Up)
Weight41.2 lb / 18.7 kg
Warranty Length Limited 1-Year Warranty
