Features

Level and impedance matching function
Output impedance: > 600 Ohms
Signal pass through connector
Output connector: XLR balanced
Battery LED indicator
Distortion: (THD) < 0.005% at 1kHz, 0dBu
Phantom power LED indicator
Max Input: +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
Output Noise: <-100dB unweighted

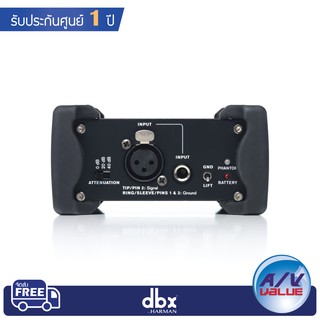

TS and XLR inputs and outputs
Frequency response: 10Hz to 70kHz, +0dB/-3dB
Attenuation control
Phantom Power: +18 volts DC to +48 volts DC
Ground lift switch
Main/Standby: 9V battery
Input Impedance: >250k Ohm
Metal Chassis

Specifications

Input Impedance
> 250k Ohm
Max Input
+12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
Connectors
Two Parallel 1/4" jack connectors and a parallel XLR connector (unbalanced), 1/4" Jack: Tip Hot, Sleeve Ground; XLR Jack: Pin 2 Hot, Pins 1 & 3 Ground
Output Impedance
> 600 Ohms
Output Connectors
XLR balanced
Distortion
(THD) < 0.005% at 1kHz, 0dBu
Output Noise
<-100dB unweighted
Frequency Response
10Hz to 70kHz, +0dB/-3dB
Main/Standby
9 Volt battery
Phantom Power
+18 Volts DC to +48 Volts DC
