Feature:
1. Versatile Display: The S900 display has multiple functions and can be used as a trip computer, displaying various data in color such as remaining battery, average speed, maximum speed, clock, total and one way distance.
2. Noise Free Operation: The brushless gear hub motor adopts aluminum alloy rims and undergoes fine processing, which has a strong bearing capacity and realizes noise free operation, allowing you to fully enjoy the riding pleasure.
3. Good Heat Dissipation: The controller housing is made of high quality metal with flute design, which can protect the internal circuit due to its good heat dissipation function, thus avoiding thermal overload.
4. 5 Size Rims: Bicycle modified front drive motor kit contains 20in rim spokes, 24in rim spokes, 26in rim spokes, 27.5in rim spokes, 28in/29in rim spokes and 700C three can be shared.
5. Easy to Maintain: The electric bicycle moped mountain bike is modified and converted into a motor, which has high efficiency and greatly improves the riding pleasure, suitable for cyclists who like challenges.

Specification:
Item Type:E Bike Motor Kit
Material: Stainless Steel, Aluminum Alloy, Plastic
Product Size: (Manual Measurement Allowable Error)
Controller Box:Approx. 8 x 5 x 3cm / 3.1 x 2.0 x 1.2in
Meter:Approx 11 x 6cm / 4.3 x 2.4in

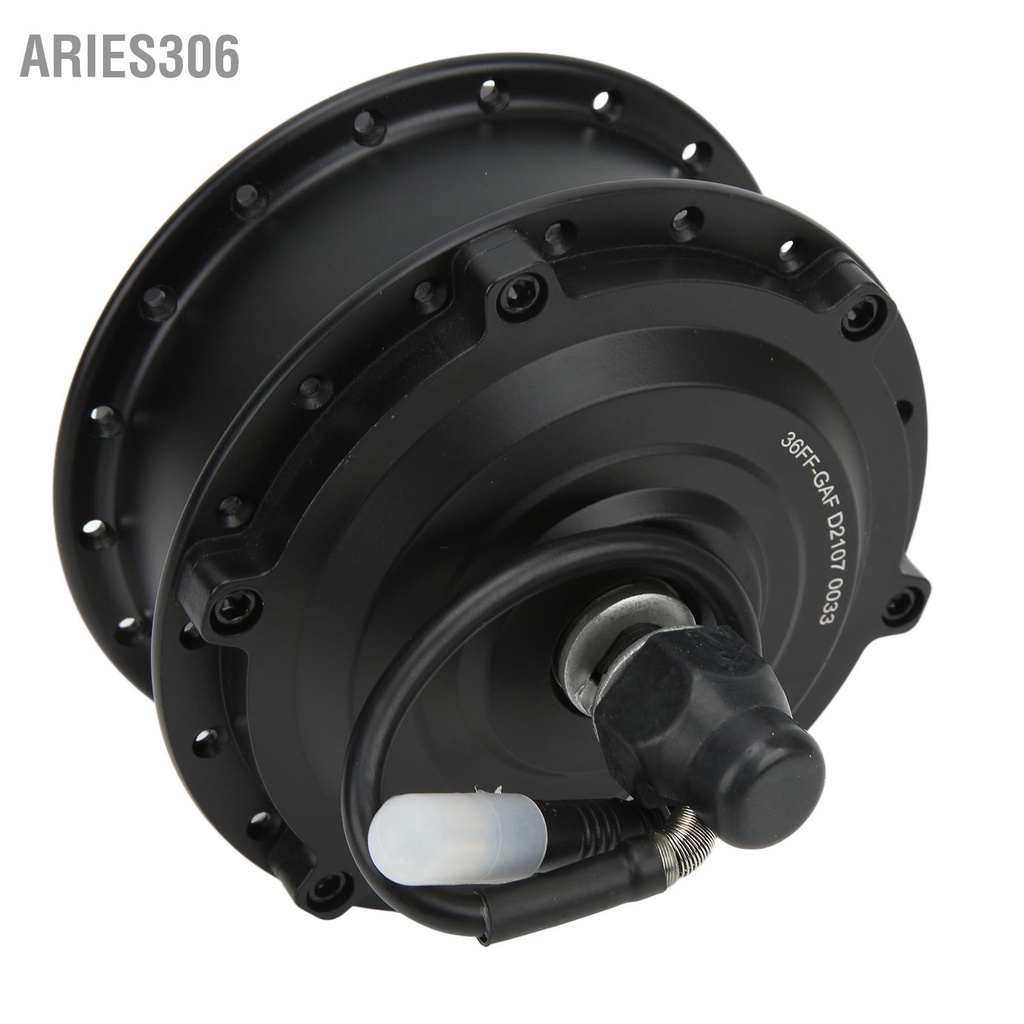

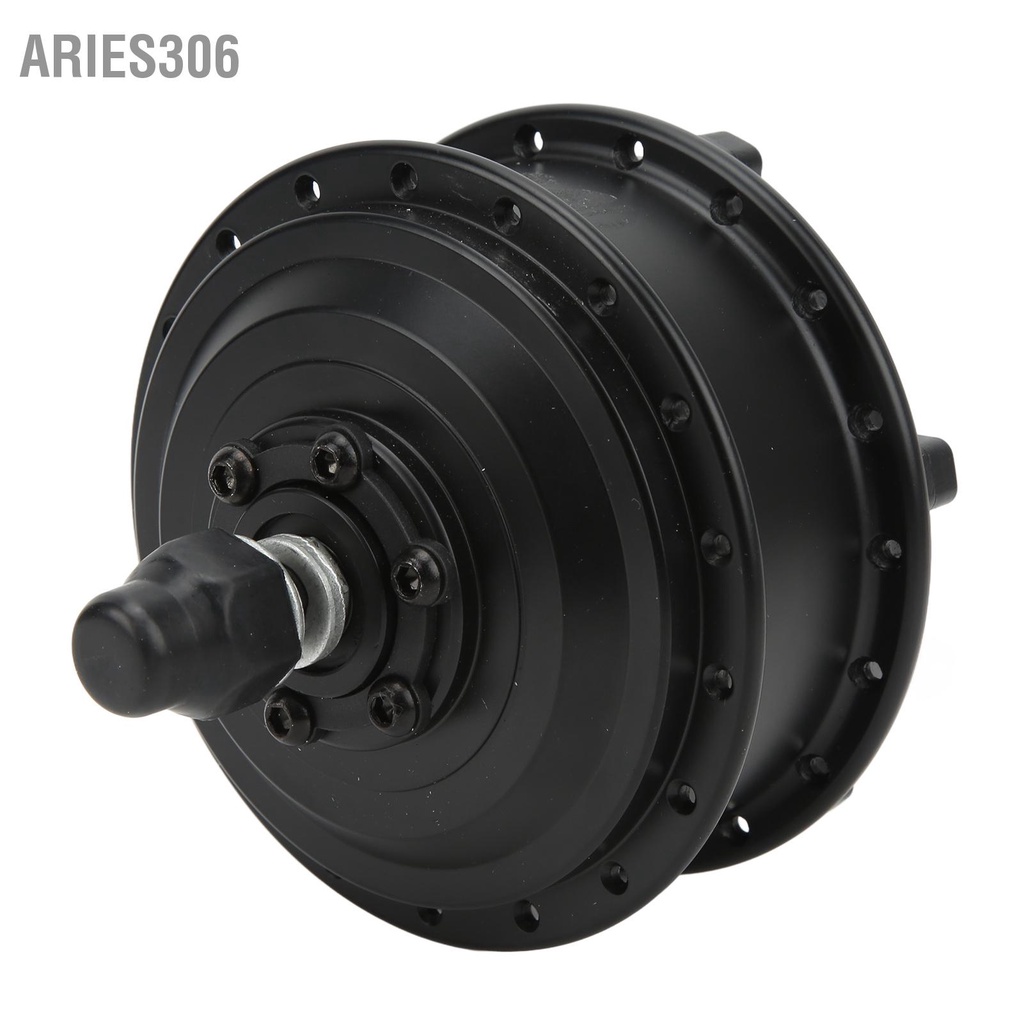

Motor Type: Front Drive Motor
Motor Connector: Waterproof Connector (9pin)
Motor Rated Voltage: 36V
Motor Rated Power: 250W
Motor Speed: About 25-28km/h
Motor Speed: 207-270 RPM
Motor Torsion (N.M): 29-31.2 N.M
Motor Opening Size (mm):Approx. 100mm / 3.9in
Motor Matching Controller Current: 15A
Motor Rim: P19D
Motor Torsion Arm: M14
Brake Disc for Motor:Approx. 160mm / 6.3in
Motor Brake Type: V Brake / Disc Brake Universal
Motor Location: Front Drive
Motor Structure: Brushless Gear Hub Motor
Motor Magnet Height: 24H
Motor Magnet Pole Number: 20
Motor Operating Temperature: -20℃~45℃
Controller Rated Voltage: DC 36V/48V
Controller Maximum Current: 15A
Controller Speed Setting: 1-4.2V
Controller Brake Input: Low Level
Controller Booster: 1:5
S900 Meter Function Description:
Display Function: Speed Display, Power-assisted Gear Display, Battery Indicator, Fault Prompt, Total Mileage, Single Mileage, Headlight Display, Single Driving Time Display.
Control and Setting Functions: Power Switch Control, Headlight Switch Control, 6km/h Jog Control, Wheel Diameter Setting, Maximum Speed Setting, Idle Automatic Sleep Time Setting, Backlight Brightness Setting, Voltage Level Setting, Pas Connection.
Controller Wire Color Definition:
Black Single Big Head Cable: Waterproof Motor Cable (9pin)
Red, Black Single Bulk Cord: Power Cord
Red, Blue, Black, Green, and Yellow Single Row Five Wire Port: Instrument Line
Black and Yellow Lines (two): Power off Brake Handle Line
Red and Black Lines: Throttle Dial Line
Brown Black Yellow Wire: Pas Booster Sensor Wire
Black and Red Wires (two): Light Wires

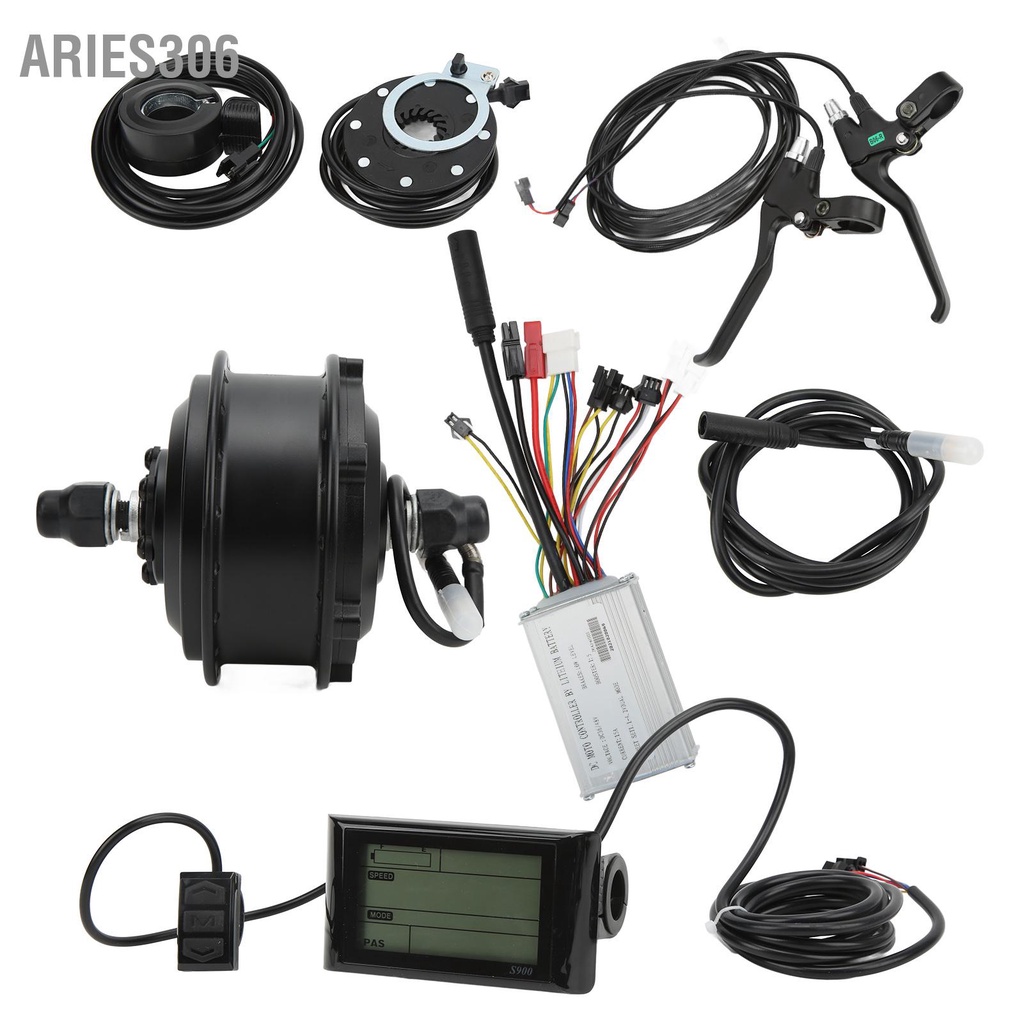

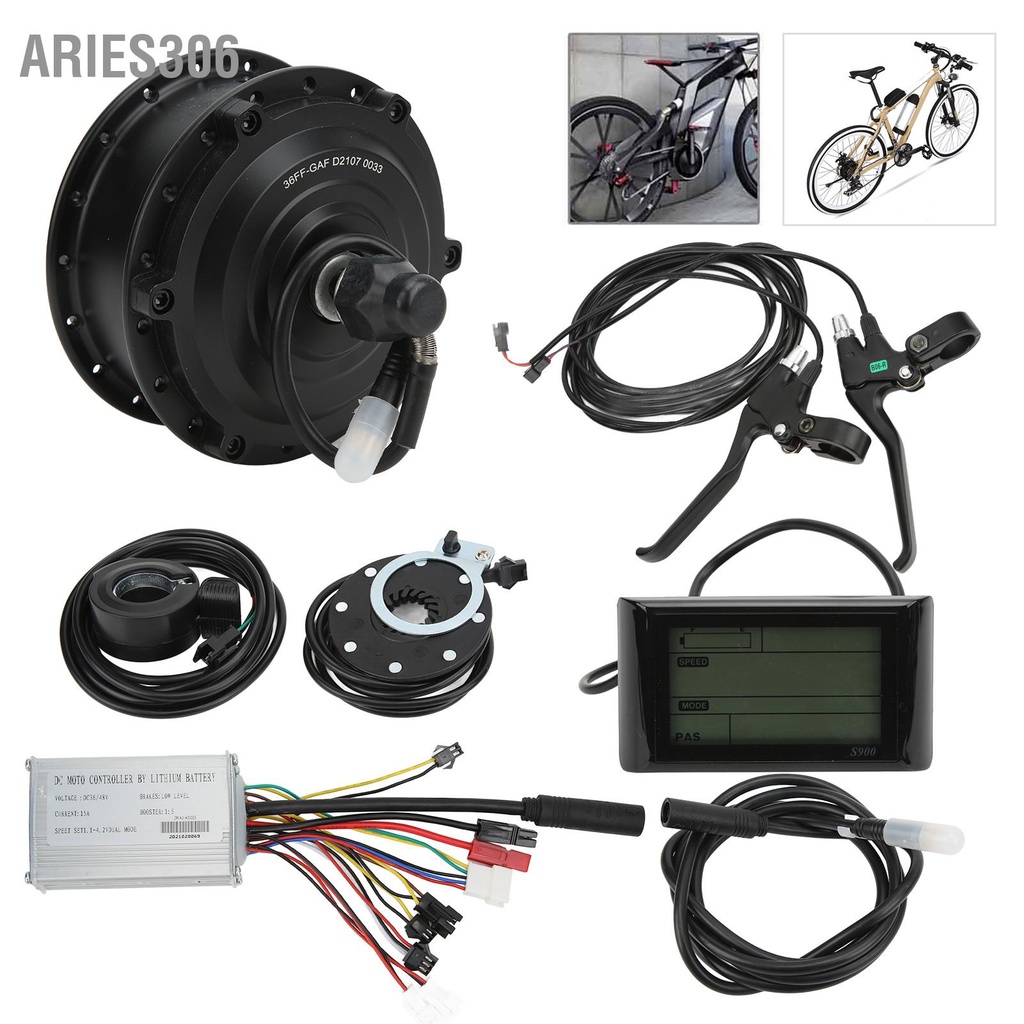

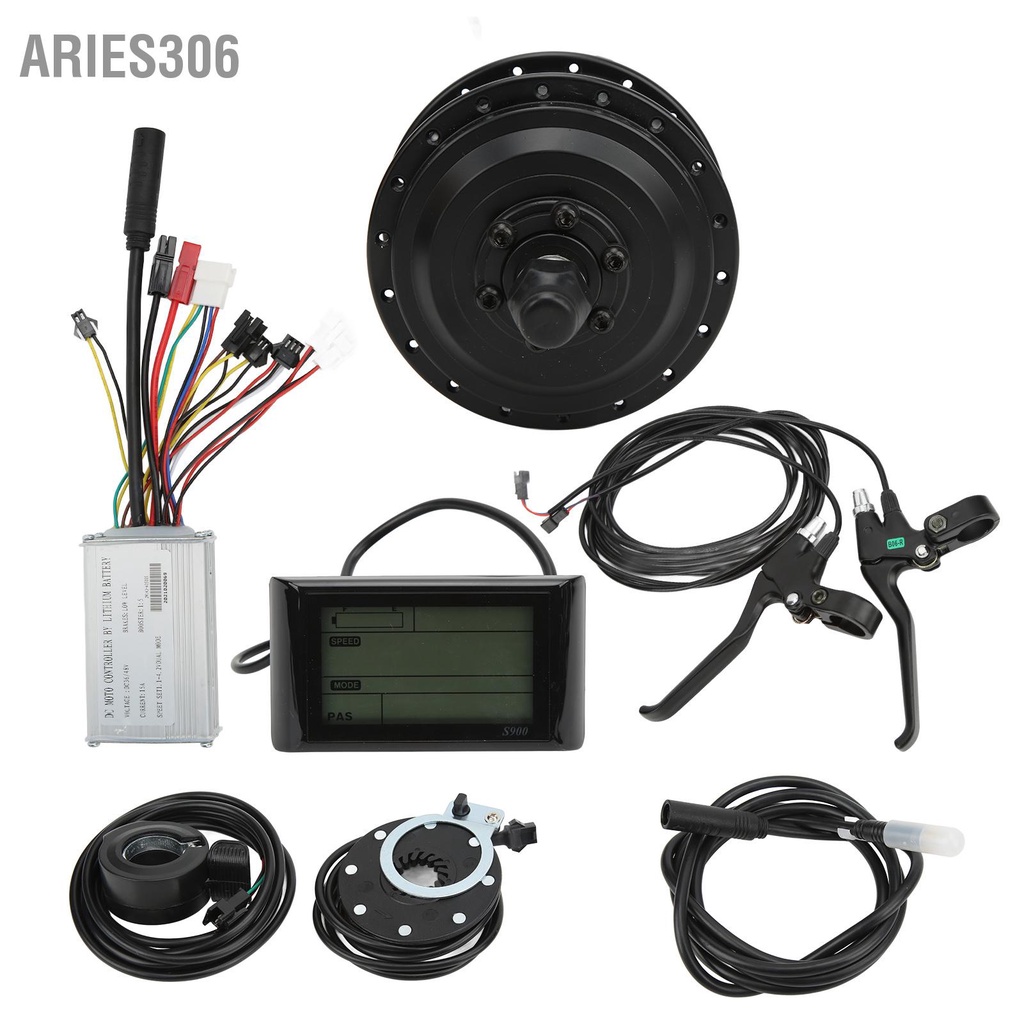

Package List:
1 x Motor1 x Controller1 x Meter2 x Electrocar Crank 1 x Throttle Dip
1 x Booster Sensor1 x Motor Extension Cord40 x Spokes40 x Spoke Nut Cover1 x Spoke Installation Tool1 x User Manual
