Feature:

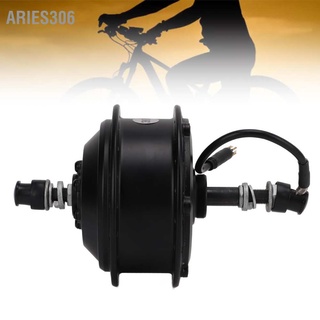

1. Packing List: 36V 250W front drive motor wheel fully waterproof kit includes 20 inch front drive motor wheel, 15A controller, LCD instrument, thumb throttle, D12 speed assist sensor, and one for two extension cables.
2. Aluminum Alloy Rim: After fine processing, the edges of the rim are effectively strengthened, appearing light, strong carrying capacity, and far more comfortable than other types of motors.
3. Heat Dissipation Function: Controller shell is made of metal with groove design. Due to its good heat dissipation function, it can protect the internal circuit and avoid thermal overload.
4. Stability Control: Brushless motor controller can provide stable speed and sensitive braking and direction change control.
5. Full Waterproof Kit Connector: Waterproof function to ensure maximum durability in any weather conditions, high performance wires and waterproof interfaces are durable, ensuring low failure rate for long term use.
6. Modification and Maintenance: Modification and conversion of electric bicycles and mountain bikes greatly improve the fun of riding, suitable for cyclists who like challenges, and DIY modified electric bicycles.

Specification:
Item Type: Electric Bicycle Front Drive Motor Wheel Kit
Material: Stainless Steel + Aluminum Alloy
Weight: Approx.5150g/181.7oz
Color: As Pictures Shown
Motor Wheel Suitable Tire Size: 50.8cm/20in
Motor: Front Drive Motor
Voltage: 36V
Power: 250W
Speed: 25-28 Km/h
Speed: 207-270 Rpm
Torque: 29-31.2 N.M
Opening Size: Approx. 100mm/3.9in
Connector Type: Waterproof Connector
Matching Controller Current: 15A
Rim: P19D
Moment Arm: M14
Disc Brake: Approx. 160mm/6.3in
Motor Structure: Gear Motor
Magnet Height: 24H
Number of Poles of Magnet: 20
Brake Type: V Brake/disc Brake Universal
Controller Wire Color Definition:
1. Black Big Head Long Wire: Motor Wire
2. Red and Black Single Short Wires: Power Cord
3. Black Big Head Short Line (Fine Hole): One for Four, One for Five (9 Cores)
4. Black Line and Red Head: Light Line
5. Black Wire and Yellow Head: PAS D12 Speed Assist Sensor Wire

Package List:
1 x Front Drive Motor Wheel1 x Controller1 x Instrument
1 x Thumb Throttle1 x One for Two Extension Cord1 x D12 Speed Assist Sensor Wiring1 x D12 Speed Assist Sensor Sheet1 x D12 Speed Assist Sensor Ring2 x Cable Tie1 x Wiring Manual

Note:
For front wheel modification, the power and voltage must match.
