MASTERFUL SOUND, EXTRAORDINARY CREATIVE POWER

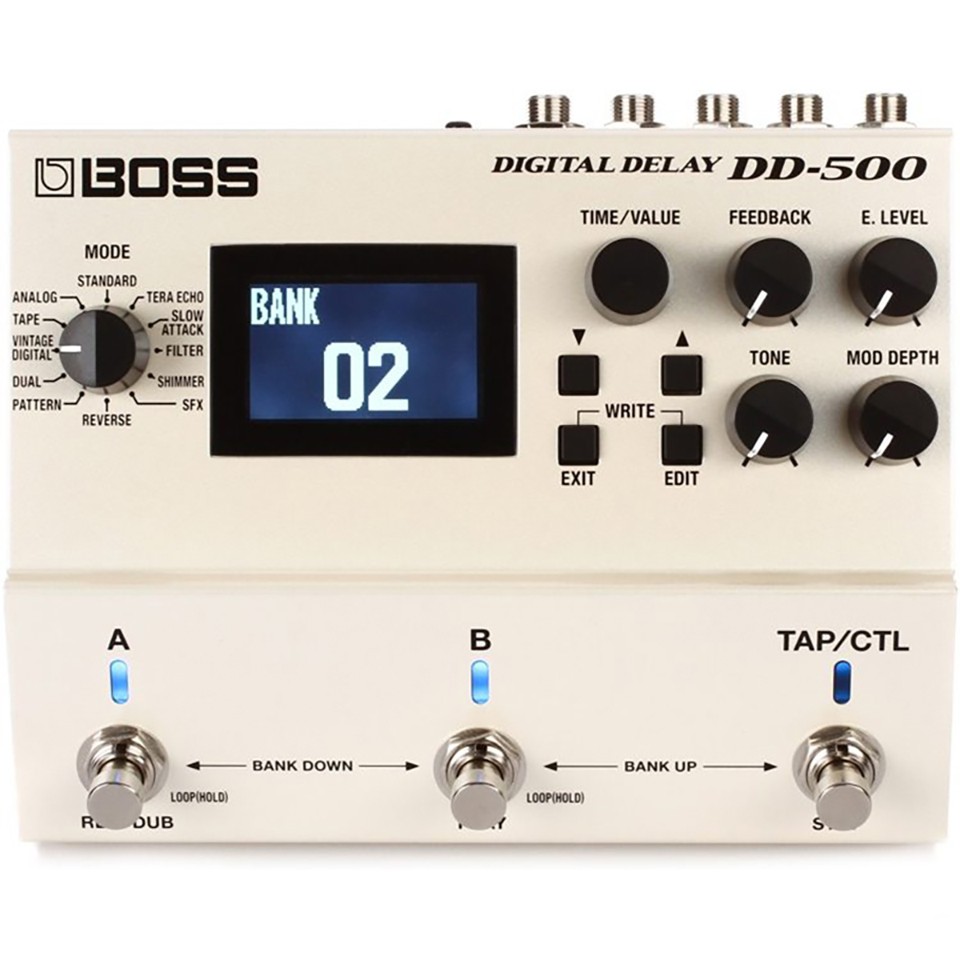

Filled with newly developed BOSS technology, the DD-500 is the most powerful and versatile stompbox delay ever created. This incredible sound-creation toolbox

offers 12 distinctive delay modes with exceptional audio quality, plus deep editing controls, a graphic display, patch memories, MIDI, and much more.

From basic echo to dead-on emulations of classic delays to incredibly lush spatial textures that take your breath away, the DD-500 will launch your music places you never thought possible.

DD-500 Version 2 Software: New and Improved Control Parameters, Routing Options, and Effects for Increased Performance Flexibility

The feature-packed Version 2 software update brings powerful new performance enhancements and unparalleled flexibility to

the DD-500. Even more control has been added, with an improved A/B simultaneous mode for advanced routing as well as new Series and Parallel modes.

Five new effect types have been added to the current delay algorithms, plus many updated parameters common to all modes. The update also offers lots of user-requested features, including additional MIDI controls,

new modulation types, a feedback loop function for inserting external effects, adjustable input and output levels, selectable EQ position, and more.

Studio-level sound with class-leading 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
12 versatile delay modes from vintage to modern deliver unlimited creative possibilities
Unrivaled real-time expression with customizable control settings for onboard and external switches
Graphic LCD for easy, intuitive operation while performing and editing
Onboard patch memories and hands-on controls
Equipped with a built-in Phrase Looper, MIDI, USB, and more
Selectable buffered-bypass or true-bypass operation
Runs on four AA-size batteries or PSA-series AC adapter
Dedicated editor software availableDD-500 Version 2 Software Newly Added Features
Improved A/B Simul mode with more flexible control and input/output options
Five newly added effects, including vintage Binson Echorec 2, touch-responsive filter delay, and more
Additional detailed tone-editing parameters such as feedback damp and modulation mode
More flexible routing options with the new Insert Loop function, selectable EQ insertion position, expanded independent delay connection modes, and more
Enhanced effects with extended parameters and sound quality refinements, including stereo pitch shifters and overtone effects for Shimmer mode, effect targets for Slow Attack mode, and more


SPECS
SPECIFICATIONSSampling Frequency96 kHzAD/DA Conversion32 bitsProcessing32-bit floating pointDelay Modes12 modes
STANDARD
ANALOG
TAPE
VINTAGE DIGITAL
DUAL
PATTERN
REVERSE
TERA ECHO
SLOW ATTACK
FILTER
SHIMMER
SFXMaximum delay time10 sec.(depends on delay mode)Phrase loop60 sec. (96 kHz/MONO, 48 kHz/STEREO)
120 sec. (48 kHz/MONO)
Delay can be applied.Patches198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])PedalsFoot switch x 3 [A][B][TAP/CTL]KnobsMODE
TIME/VALUE
FEEDBACK
E.LEVEL
TONE
MOD DEPTHDisplayGraphic LCD (128 x 64 dots, backlit LCD) x 1Nominal Input LevelINPUT A/MONO, B: -10 dBuMaximum Input LevelINPUT A/MONO, B: +8 dBuInput ImpedanceINPUT A/MONO, B: 1 M ohmNominal Output LevelOUTPUT A/MONO, B: -10 dBuMaximum Output LevelOUTPUT A/MONO, B: +8 dBuOutput ImpedanceOUTPUT A/MONO, B: 2 k ohmsRecommended Load ImpedanceOUTPUT A/MONO, B: 20 k ohms or greaterBypassBuffered bypass or True bypass (with relays)ConnectorsINPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B USB-MIDI
MIDI (IN, OUT) connectors
DC IN jackPower SupplyAlkaline battery (AA, LR6) x 4
AC adaptorCurrent Draw200 mAExpected battery life under continuous use (These figures will vary depending on the actual conditions of use.)Alkaline: Approx. 7 hoursAccessoriesOwner’s manual
Leaflet “USING THE UNIT SAFELY”
Alkaline battery (AA, LR6) x 4Options (sold separately)AC adaptor: PSA series
Footswitch: BOSS FS-5U, FS-5L
Dual Footswitch: BOSS FS-6, FS-7
Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5SIZE AND WEIGHTWidth170 mm
6-3/4 inchesDepth138 mm
5-7/16 inchesHeight62 mm
2-1/2 inchesWeight (including battery)1.0 kg
2 lbs 4 oz.
