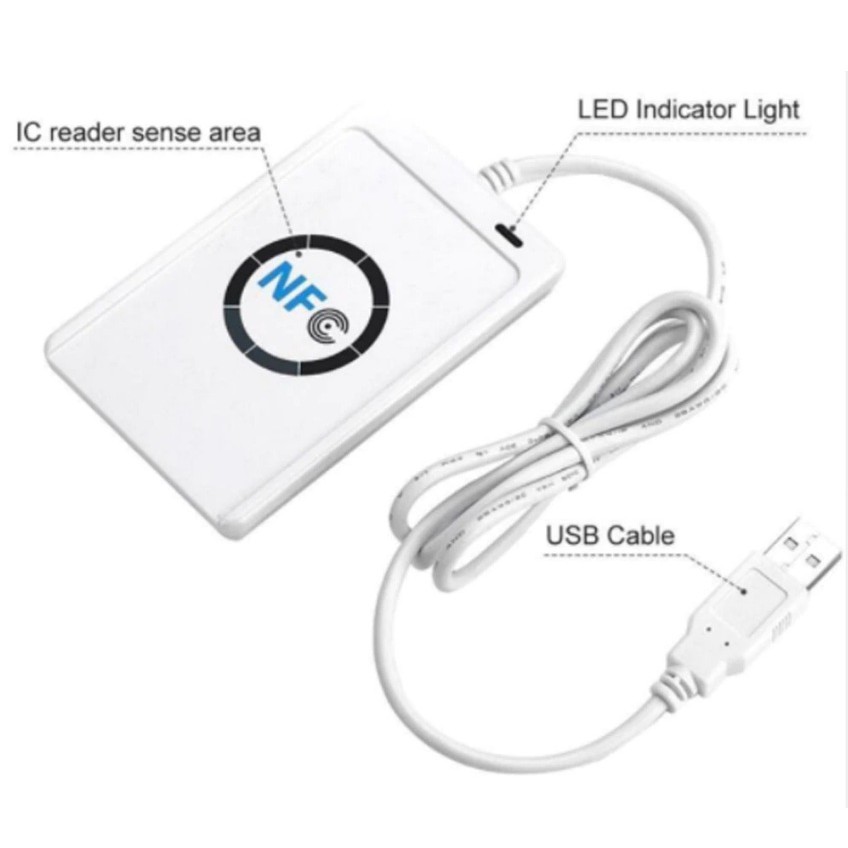

ACR122U Introduction

The ACR122U is a PC-linked contactless smart card reader/writer developed on the 13.56 MHz contactless technology.
It is the world’s first CCID-compliant contactless card reader/writer that follows both ISO 14443 and ISO 18092.
This device is designed to support not only MIFARE® and ISO 14443 Type A and B cards but also FeliCa and NFC tags.
By making use of up to 424 Kbps read/write speed for NFC tag access and up to 12 Mbps for USB full speed,
ACR122U can efficiently read from and write to various contactless cards/tags.
It is also PC/SC-compliant which allows interoperability across different applications and platforms.
You can experience the convenience in using ACR122U, with its compact size and the various features it offers,
For applications such as payment, access control, time and attendance, and mass transit.

Features

• USB Full Speed Interface
• CCID-compliant
• Smart Card Reader:
o Read/Write speed of up to 424 Kbps
o Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
o Supports ISO 14443 Part 4 Type A and B cards, MIFARE Classic®, FeliCa, and all four types of NFC (ISO/IEC 18092 tags)
o Built-in anti-collision feature (only one tag is accessed at any time)
• Built-in Peripherals:
o User-controllable bi-color LED
o User-controllable buzzer
• Application Programming Interface:
o Supports PC/SC
o Supports CT-API (through wrapper on top of PC/SC)

Application:

1. Network access control
2. Bank&paymen
3. NFC mobile ta
4. Public transportation terminal
5. Automatic fare collectio
6. Physical access contro
7. Customer loyalt
8. Time and attendanc
9. Contactless public phone
10. Vending machine

Operating System Support:
Win 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win
Server 2008, Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win
Server 2008 R2 x64, Windows CE 5.0, Linux, Mac (Please find the proper software to support it)


Packing Includes:

เครื่องอ่าน เขียน ACR122U NFC Contactless USB 1 ตัว
แผ่น Driver และ โปรแกรม SDK 1แผ่น
บัตร MFS50 1K UID CARD 5ใบ
