General information


Type
CPU / Microprocessor


Market segment
Desktop


Family


AMD A10-Series


Model number ?
A10-6800K


CPU part numbers



AD680KWOA44HL is an OEM/tray microprocessor
AD680KWOHLBOX is a boxed microprocessor with fan and heatsink




Frequency ?
4100 MHz


Maximum turbo frequency
4400 MHz


Boosted P states [1]
#1: 4400 MHz, 1.325V#2: 4300 MHz, 1.25V#3: 4200 MHz, 1.15V


Package
904-pin organic lidded micro Pin Grid Array (UOF904)


Socket
Socket FM2


Size
1.57" x 1.57" / 4cm x 4cm


Weight
1.4oz / 39g


Introduction date
June 4, 2013


Price at introduction
$142


Architecture / Microarchitecture


Microarchitecture
Piledriver


Processor core ?
Richland


Core stepping ?
RL-A1


CPUID
610F31


Manufacturing process
0.032 micron1.3 billion transistors


Data width
64 bit


The number of CPU cores
4


The number of threads
4


Floating Point Unit
Integrated (shared between two cores in each module)


Level 1 cache size ?
2 x 64 KB 2-way set associative shared instruction caches4 x 16 KB 4-way set associative data caches


Level 2 cache size ?
2 x 2 MB 16-way set associative shared exclusive caches


Level 3 cache size
None


Cache latency
3 (L1 cache)


Multiprocessing
Uniprocessor


Extensions and Technologies


MMX instructions
Extensions to MMX
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
SSE4a ?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
BMI1 / Bit Manipulation instructions 1
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
FMA4 / 4-operand Fused Multiply-Add instructions
TBM / Trailing Bit Manipulation instructions
XOP / eXtended Operations instructions
AMD64 / AMD 64-bit technology ?
AMD-V / AMD Virtualization technology
Turbo Core 3.0 technology




Security Features


EVP / Enhanced Virus Protection ?




Low power features


Core C1, C1E, C6 and CC6 states
Package S3, S4 and S5 states
PowerNow!




Low power P states [1]
#1: 3800 MHz, 0.9V#2: 3200 MHz, 0.675V#3: 2600 MHz, 0.45V#4: 2000 MHz, 0.25V


Integrated peripherals / components


Integrated graphics
GPU Type: Radeon HD 8670DShader cores: 384Base frequency (MHz): 844


Memory controller

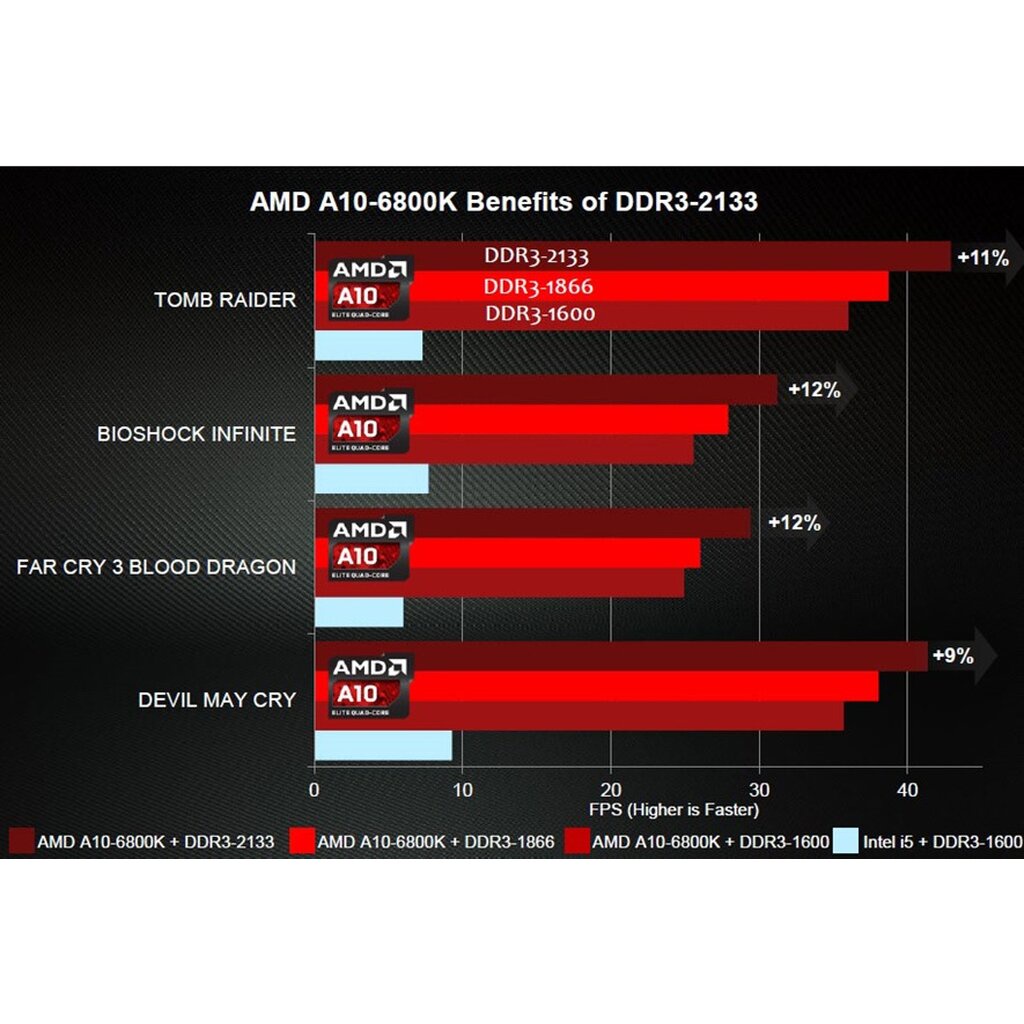

The number of controllers: 1Memory channels (per controller): 2Memory channels (total): 2Supported memory: DDR3-2133Maximum memory bandwidth (GB/s): 34.1


Other peripherals


PCI Express 2.0
Unified Video Decoder 3.2 ?




Electrical / Thermal parameters


Maximum operating temperature ?
74°C


Thermal Design Power ?
100 Watt


Notes on AMD A10-6800K





The processor has unlocked clock multiplier


[1] - These characteristics were measured on a single CPU, and they can vary slightly for other processors with the same model number
