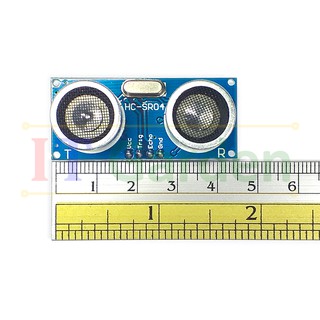

Module Ultrasonic HC-SR04 โมดูลวัดระยะทาง อัลตราโซนิก
ข้อมูลสินค้า
ราคา
38.00 บาท
ขายแล้ว
66 ชิ้น
ร้านค้า
Features:
Supply module with 5V, the output will be 5V while obstacle in range, or 0V if not. The out pin of this module is used as a switching output when anti-theft module, and without the feet when ranging modules.
Adopt IO trigger through supplying at least 10us sequence of high level signal.
The module automatically send eight 40khz square wave and automatically detect whether receive the returning pulse signal.
If there is signals returning, through outputting high level and the time of high level continuing is the time of that from the ultrasonic transmitting to receiving. Test distance = (high level time * sound velocity (340M/S) / 2.
Specification:
Model: HC-SR04
Sensor type: Ultrasonic ranging module
Impedance: 1 (Ohms)
Work Voltage: DC 5V
Static Current: <2mA
Level Output: 0-5V
Sensor Angle: ≤15 degree
Detecting Distance: 2-450cm
Size: 45 x 20 x 14 mm
