Description:

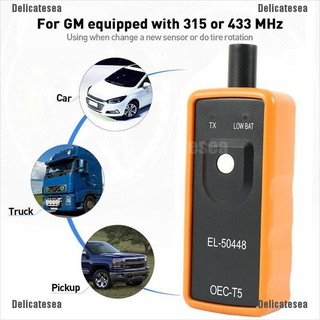

For GM vehicles equipped with a 315 or 433 MHz Tire Pressure Monitoring (TPM) system, a ""Sensor Re-Learn Procedure"" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using special tool EL-50448.Also works on 2014 GM models

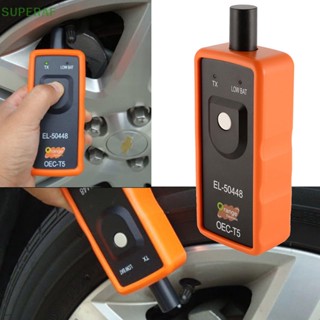

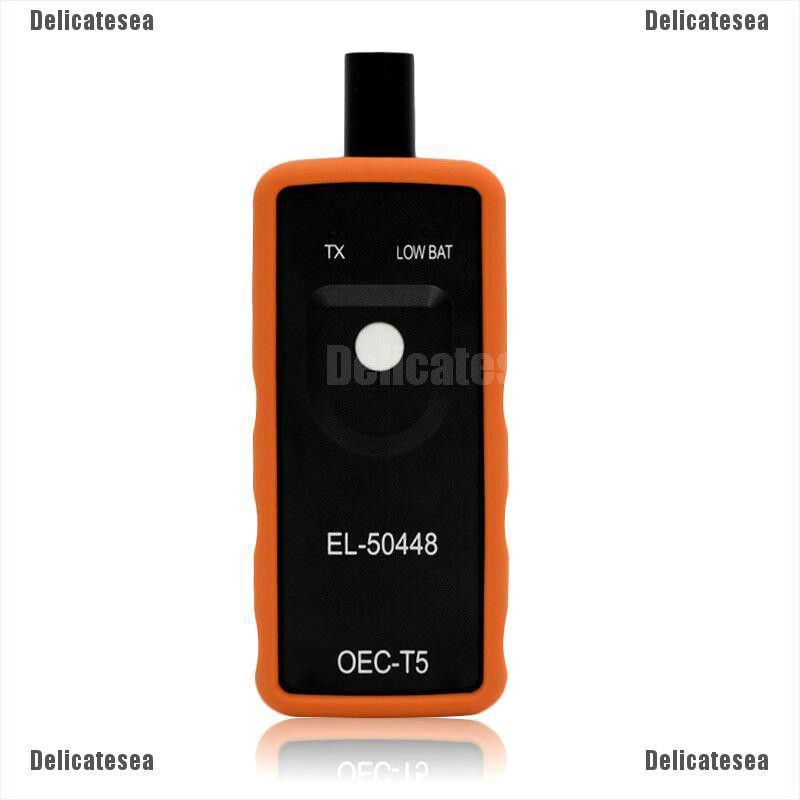

EL-50448 Tire Pressure Monitor Sensor TPMS Activation Tool OEC-T5
The tire pressure sensor on models in & after 2012 can be read, only with some specified diagnostic tools.
Before tire pressure monitoring system works normally properly, the body control module will record ID information of each position in the tire pressure sensor; and use the following methods to read the tire pressure sensor after replacing a tire or wheel speed sensor. Please refer to the specific methods as follows:
EL-50448 instructions:

EL50448 works on all General Motors (Buick, Cadillac, Chevrolet, GMC) products manufactured for the North American market. It wont work if youve purchased aftermarket sensors that are the wrong frequency. EL50448 fit for G.M most kind of vehicles, equipped with a 315 or 433 MHz Tire Pressure Monitoring (TPM) system. This re-learn procedure can be performed by using special tool EL-50448.

EL-50448 Specification:
Item Height:10 inch
Item Width:15 inch
Item Length:20 inch
Hardware Version:OEC-T5
Software Version:EL-50448
External Testing Certification:CE
Material Type:High quality plastic & metal

How to use EL 50448 TPMS Activation Tool
Step 1 - Enter leaning mode
Set the gearshift lever to ""P""
Put the ignition switch to “ON”
Enter the interface of tire pressure display by DIC
DIC shows ""Press Set / Ctrl to re-learn""
Press “Set / Ctrl”
The turn signal is lighted for 3 seconds and the horn beep sound twice to enter the learning mode

Step 2 - Read tire pressure sensor information
Start from the front-left wheel,
Make the J-46079 or Diagnostic Tool EL-50448 antenna up against the valve core position & close to the rim of the tire sidewall
El-50448 tire pressure tool starts by the start switch
Successful to read the tire pressure sensor information when the horn bleeps once

Step 3 - Same method to read other tire pressure information
Follow the instuction above to read tire pussure of the front-right, rear-right, rear-left wheels.
Turn signals is lighted for 3 seconds and the horn bleeps twice when the learning is complete.

For certain vehicles equipped with a Tire Pressure Monitoring (TPM) system, a ""Sensor Re-Learn Procedure"" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using special tool 50448


Please Kindly Note:
The package does not include the charger and battery.

Package Included:
1 x EL-50448 Tool
