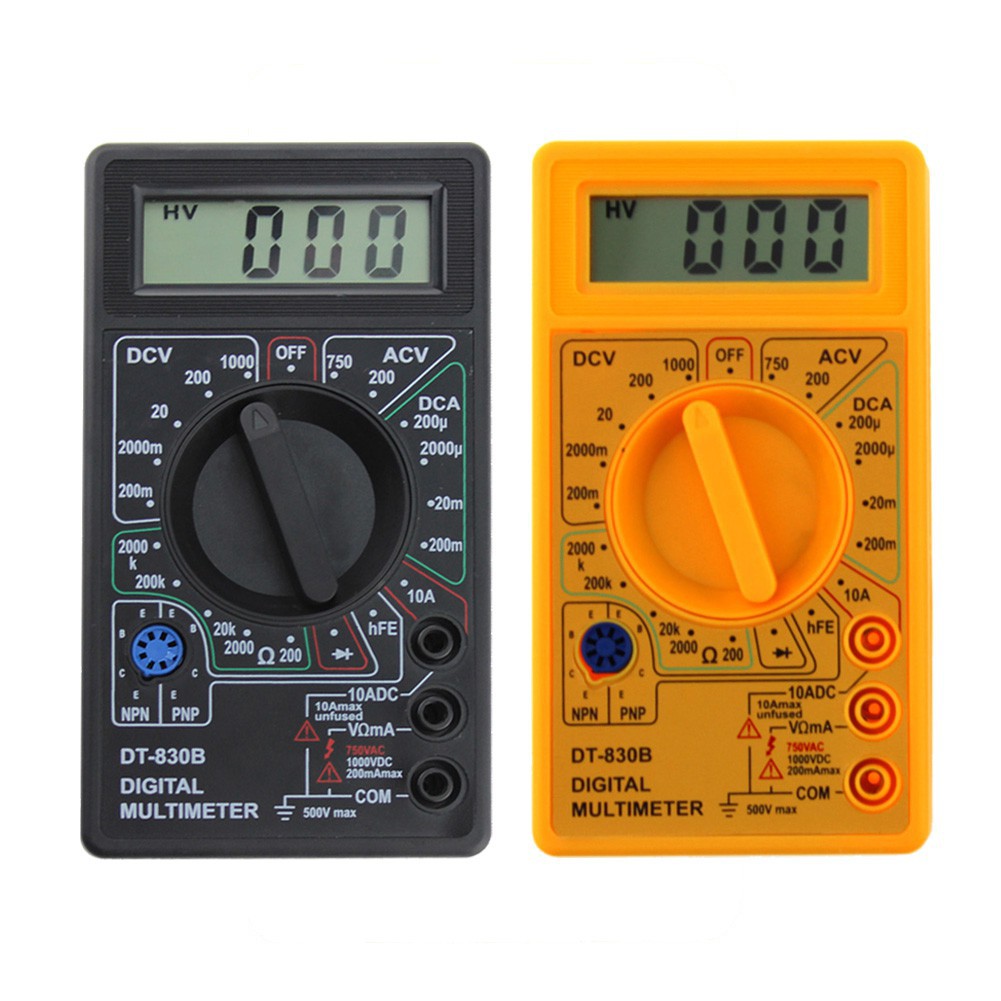

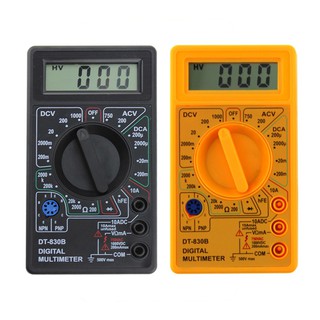

DT-838B LCD Digital Multimeter AC/DC 750/1000V Amp Volt Ohm Tester Meter



Description:

A practical tool for electrician use. It is easy to operate and the readings indicated directly on the screen. It can be used to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.



Features:

3 1/2 digits, 7segment, 0.5"high LCD Display.

Max display: 1999, Auto polarity display.

Small and compact design.

Overload protection on all ranges.

Sampling 2~3 times readings per second.

Diode assembly test / Temperature test/Transistor hFE test.

Low battery voltage indication.



Specification:

Model: DT838

Measuring range:

Max AC Current: 10A

Max AC Voltage range: 1000V

Max DC Voltage range: 750V

Resistance Measurement: 200 Ohm-2000K Ohm range

Temperature Test: -40-1000 ℃

Power Supply: 9V Battery (Not Included Here)

Color: Black, Yellow

Size: Approx. 123 x 67 x 20mm/4.84 x 2.63 x 0.78 (L*W*H)

Scale degree & Accuracy:

DC voltage: 200mV 100uv±(0.5% + 2)

2000mv 1mv

20v 10mv

200v 100mv

1000v 1v±(0.8% + 2)

AC voltage: 200V 100mv±(1.2% + 10)

750v 1v

DC current: 2000ua 1ua±(1% + 2)

20ma 10ua

200ma 100ua±(1.2% + 2)

10a 10ma±(2% + 2)

Resistance: 200Ω0.1Ω±(0.8% + 2)

2000Ω1

20kΩ10

200kΩ100

2000kΩ1000Ω±(1% + 2)

Temperature: -40-1000℃ 1℃±3%



Notes: Please allow 1-3mm error due to manual measurement and there will be different color as different display, please understand. Thanks.



Included:



1 x Digital Multimeter

2 x Temperature Probes

1 x User Manual
