The EK-MLC Phoenix 240 Radiator Core Module is a pre-filled radiator-pump combo unit. It features high-fin density EK-CoolStream radiator, high-static pressure EK-Vardar EVO fans, and high-quality custom liquid cooling grade SPC water pump. It sets the foundation for efficient and silent modular PC cooling in use with EK-MLC Phoenix CPU and GPU cooling modules.

Quick Disconnect Coupling or QDC is a special connector that allows for a quick and tool-less expansion of the system without the need for draining of the unit. This allows you to add a pre-filled QDC-enabled GPU or CPU cooling module to an EK-MLC Radiator Core Module. Quick Disconnect is a medical grade product with Zero Drop design, and the expansion of the modular liquid cooling system can be very quick, easy and safe.

This Radiator Core Module provides extreme cooling performance and exceptional build quality. An integrated Fan splitter hub reduces cable clutter and keeps the unit aesthetically clean. The pump and fans plug into the unit itself with only one PWM cable going into CPU Fan socket and while a single SATA Molex cable powers the complete unit. All-around PWM control provides minimal noise profile and performance on demand with the utilization of top-tier EK-Vardar EVO high-static pressure fan and market-proven EK-SCP liquid cooling pump.

EK-Vardar EVO features a unique Start-Stop function which ensures the user a true 0db noise environment. When fan curve is set to the minimum threshold point below 25-30% PWM duty cycle (depending on motherboard model), the motor and the electronics will turn off and the fan will simply stop spinning. EK-Vardar EVO restarts operation automatically as fan control ramps up its operational duty cycle past threshold start-stop point. This feature is very useful for preventing radiator dust buildup in idling PCs and to prolong the lifecycle of the fan itself.

Enclosed:

- EK-MLC Phoenix 240 Radiator Core Module
- Standard self-tapping fan mounting screws

Technical specifications:

- Dimensions: 295 x 133 x 68mm (L x W x H)
- Fan type: EK-Vardar EVO 120ER 2200 RPM (+/- 10%)
- Pump type: EK-SPC 60A 12V DC PWM Pump
- Tube length: 250mm
- Fitting type: 10mm Barb fitting
- QDC type: 10mm Barb fitting
- Coolant type: EK-CryoFuel Clear
- Total liquid capacity: -240ml

PLEASE NOTE:

The EK-MLC Radiator Core Module is not a standalone product!
In order to function, every EK-MLC Phoenix radiator core module requires at least one CPU or GPU cooling module!
If PWM cable is not connected to the motherboard, pump and fans will work at maximum speed.
It is normal for the EK-Vardar EVO fan to stop spinning at low workload and during PC idling.
The 0db Start-Stop function PWM threshold might vary from motherboard to motherboard model and even source PWM header.
The minimal rotation speed of the fan might vary from motherboard to motherboard model and even source PWM header.
For best results, EK recommends using the CPU_FAN header as the PWM signal source for controlling the fan.

EK-MLC Phoenix CPU Module - Intel/AM4 is a pre-filled and pre-assembled CPU cooling module water block designed specifically for the most popular Intel and AMD processors. Based on the EK-Supremacy series of CPU water blocks, it comes with an error-preventing mounting mechanism which results in a perfect installation and unparallel cooling performance. Low hydraulic restriction allows this product to work flawlessly with all EK-MLC Phoenix radiator core modules.

Quick Disconnect Coupling or QDC is a special connector that allows for a quick and tool-less expansion of the system without the need for draining of the unit. This allows you to add a pre-filled QDC-enabled GPU or CPU cooling module to an EK-MLC Radiator Core Module. Quick Disconnect is a medical grade product with Zero Drop design, and the expansion of the modular liquid cooling system can be very quick, easy and safe.

The EK-MLC Phoenix radiator core module is a pre-filled radiator-pump combo and it is sold separately. It features high-fin density EK-CoolStream radiator, high-static pressure EK-Vardar EVO fans, and high-quality custom liquid cooling grade SPC water pump. It sets the foundation for efficient and silent PC cooling. The radiator core module is available in many sizes, where the size and number of the fans is the factor of your choice.

Enclosed:
- EK-MLC Phoenix CPU Module - Intel/AM4
- EK-MLC Phoenix CPU Module - Intel/AM4 mounting mechanism

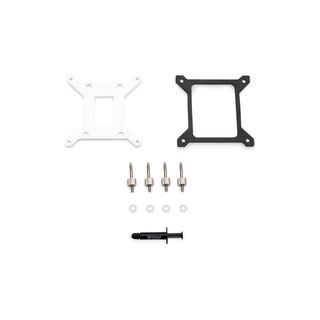

- Backplate system (Intel LGA-115x Backplate; rubber gasket)
- TIM / thermal grease: Thermal Grizzly Hydronaut (EKWB 1.0g)

CPU socket compatibility:

- Intel LGA-1200/1150/1151/1155/1156
- Intel LGA-1700
- Intel LGA-2011(-3)
- Intel LGA-2066
- AMD AM4

PLEASE NOTE:

The EK-MLC Phoenix CPU module - Intel/AM4 is not a standalone product!
In order to function, every CPU and GPU module requires at least one EK-MLC Phoenix radiator core module!
