SCT-013 CT 0-100A to 50mA Non-Invasive AC Current Sensor เซนเซอร์ วัดกระแสไฟฟ้า AC แบบครอบ 100A
ข้อมูลสินค้า
ราคา
175.00 บาท
ร้านค้า
รายละเอียดสินค้า
Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).

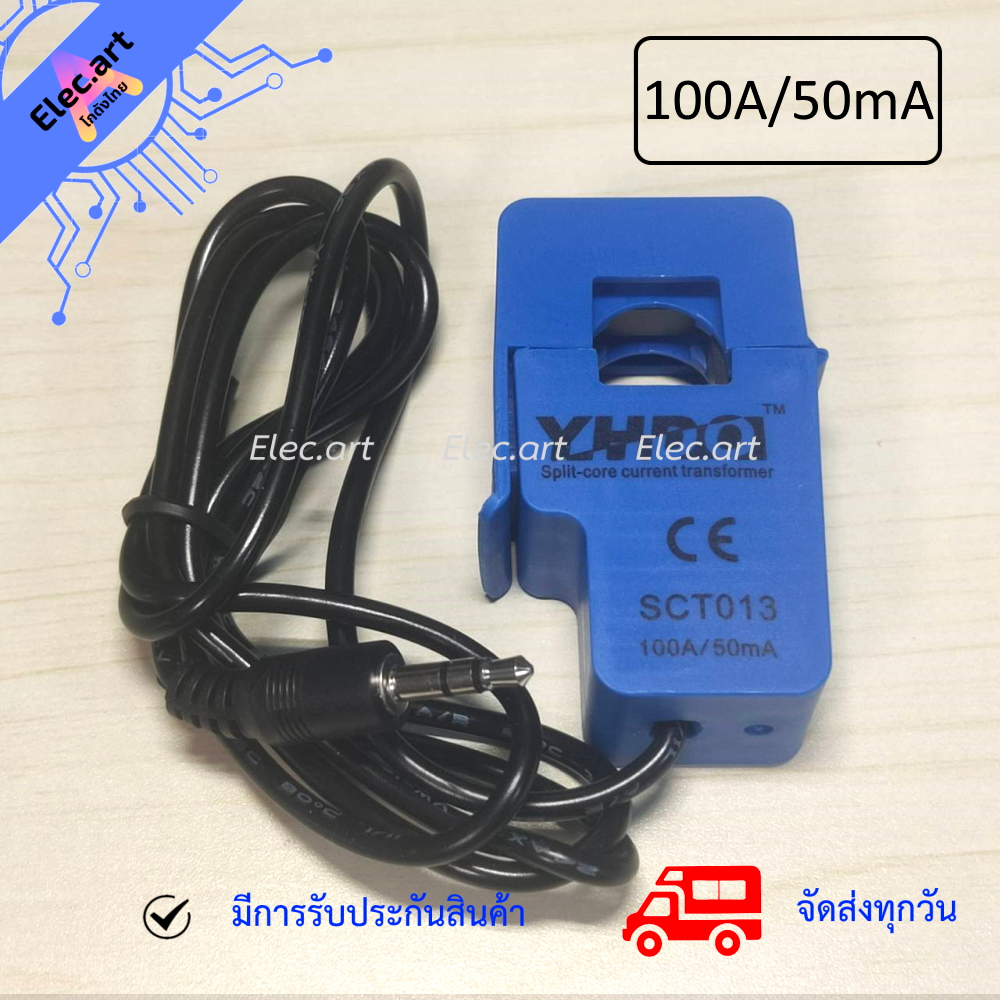

The split core type such as the CT in the picture above, is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.
Applications:
● Suitable for the current measuring
● Monitoring and protection of AC motor
● Lighting equipment
● Air compressor
Specifications:
● Input Current: 0~100A AC
● Output Mode: 0~50mA
● Non-linearity: ±3%
● Turn Ratio: 100A:0.05A
● Resistance Grade: Grade B
● Work Temperature: -25°C ~ ﹢70°C
● Dielectric Strength(between shell and output): 1000V AC/1min 5mA
● Leading Wire in Length: 1m
● Open Size: 13mm x 13mm
