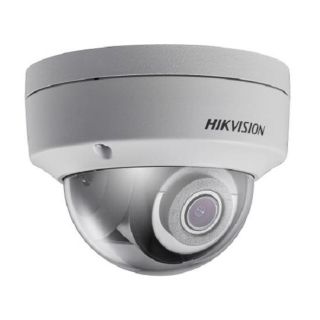

กล้องHIKVISION DS-2CD2143G0-I(S)
DS-2CD2143G0-I(S)
4 MP IR Fixed Dome Network Camera
 • 1/3" Progressive Scan CMOS

 • 2688 ×1520@30fps

 • 2.8/4/6/8mm fixed lens

 • Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

 • H.265+, H.265, H.264+, H.264

 • Three streams

 • 120dB WDR

 • 2 Behavior analyses, and face detection

 • BLC/3D DNR/ROI/HLC

 • IP67

 • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

 • 3-Axis adjustment

Camera
Image Sensor:
1/3" Progressive Scan CMOS
Signal System:
PAL/NTSC
Min. Illumination:
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter time:
1/3 s to 1/100,000 s
Slow shutter:
Support
Lens:
2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°
4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°
6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°
8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°
Lens Mount:
M12
Adjustment Range:
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night:
IR cut filter with auto switch
Wide Dynamic Range:
120 dB
Digital noise reduction:
3D DNR
Focus:
Fixed
Compression Standard
Video Compression:
H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:
256Kbps~16Mbps
Audio Compression:
-S: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams:
Yes
Max. Image Resolution:
2688 × 1520
Sub Stream:
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate:
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
Third Stream:
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:
BLC/3D DNR/ROI/HLC
Image Settings:
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Target Cropping:
No
ROI:
1 fixed region for main stream and sub-stream
Day/Night Switch:
Day/Night/Auto/Schedule/Triggered by alarm in (-S)
Network
Network Storage:
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility:
ONVIF (Profile S, Profile G),ISAPI
Interface
Audio:
with -S model：1 input (line in/mic.in), 1 output (line out), terminal block, mono sound
Communication Interface:
1 RJ45 10M / 100M Ethernet interface
Alarm:
with -S model：1 input, 1 output (max. 12 VDC, 30 mA), terminal block
On-board storage:
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:
Yes
Audio
Environment Noise Filtering:
Support(-S)
Audio Sampling Rate:
8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis:
Line crossing detection, intrusion detection
Line Crossing Detection:
Cross a pre-defined virtual line
Intrusion Detection:
Enter and loiter in a pre-defined virtual region
Recognition:
Face Detection
Gener
Operating Conditions:
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:
12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:
12 VDC, 0.5A, max. 6W
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Weather Proof:
IP67
IR Range:
Up to 30m
Dimensions:
Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)
Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
Weight:
Camera: Approx. 610 g (1.3 lb.)
With Package: Approx. 820 g (1.8 lb.)
