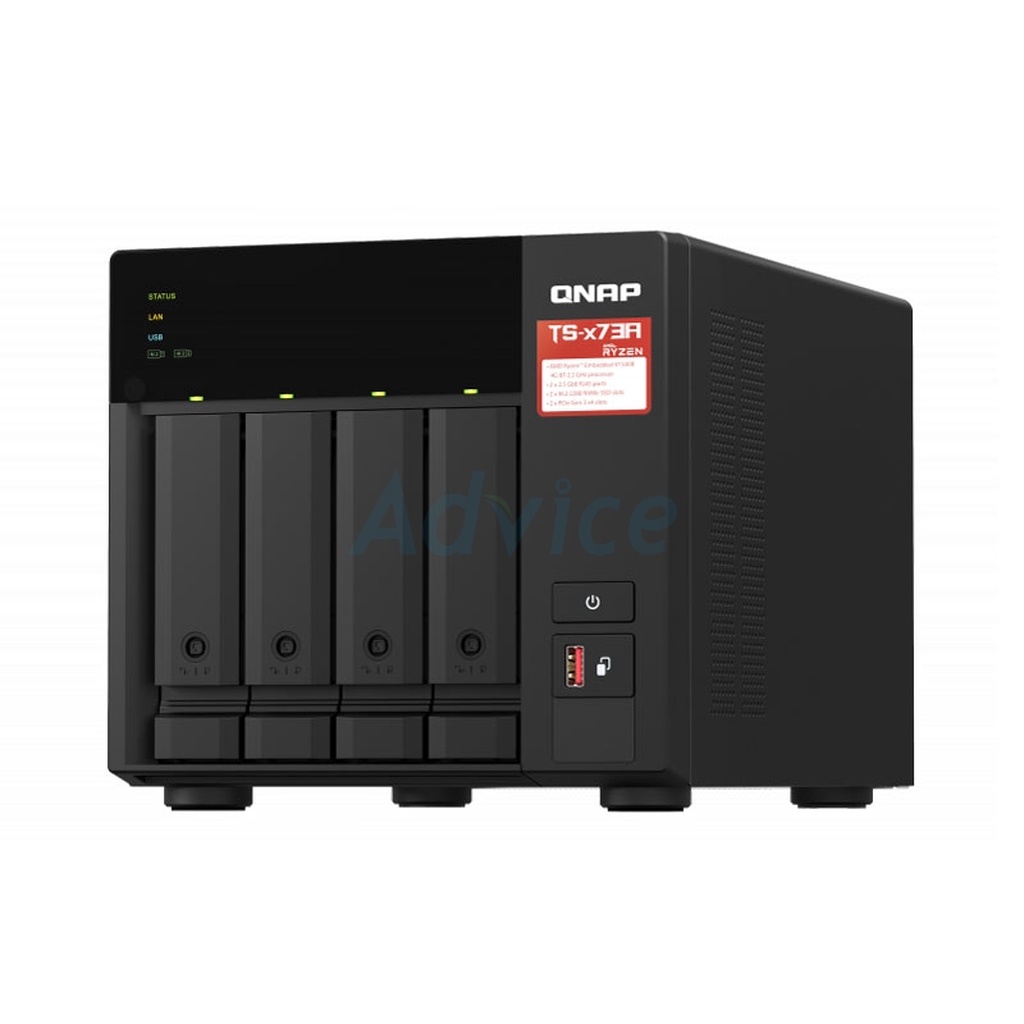

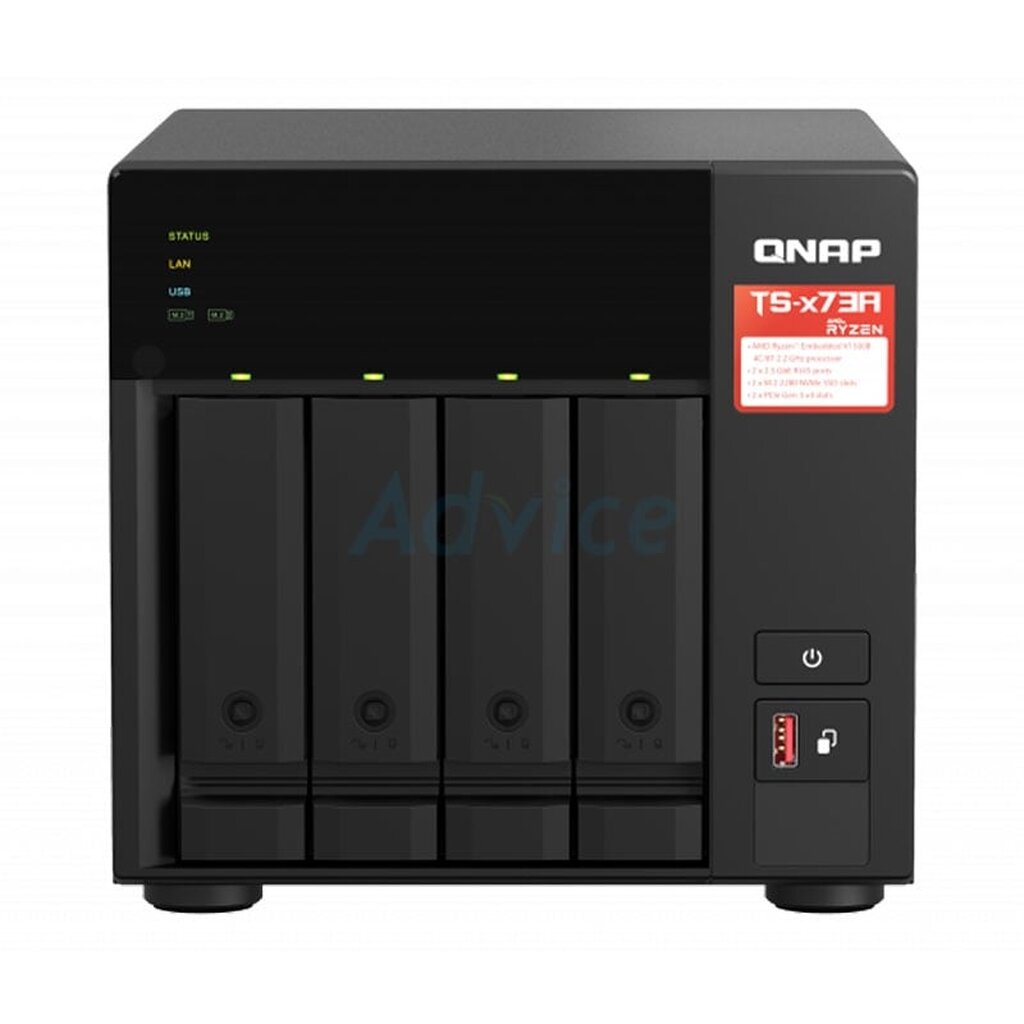

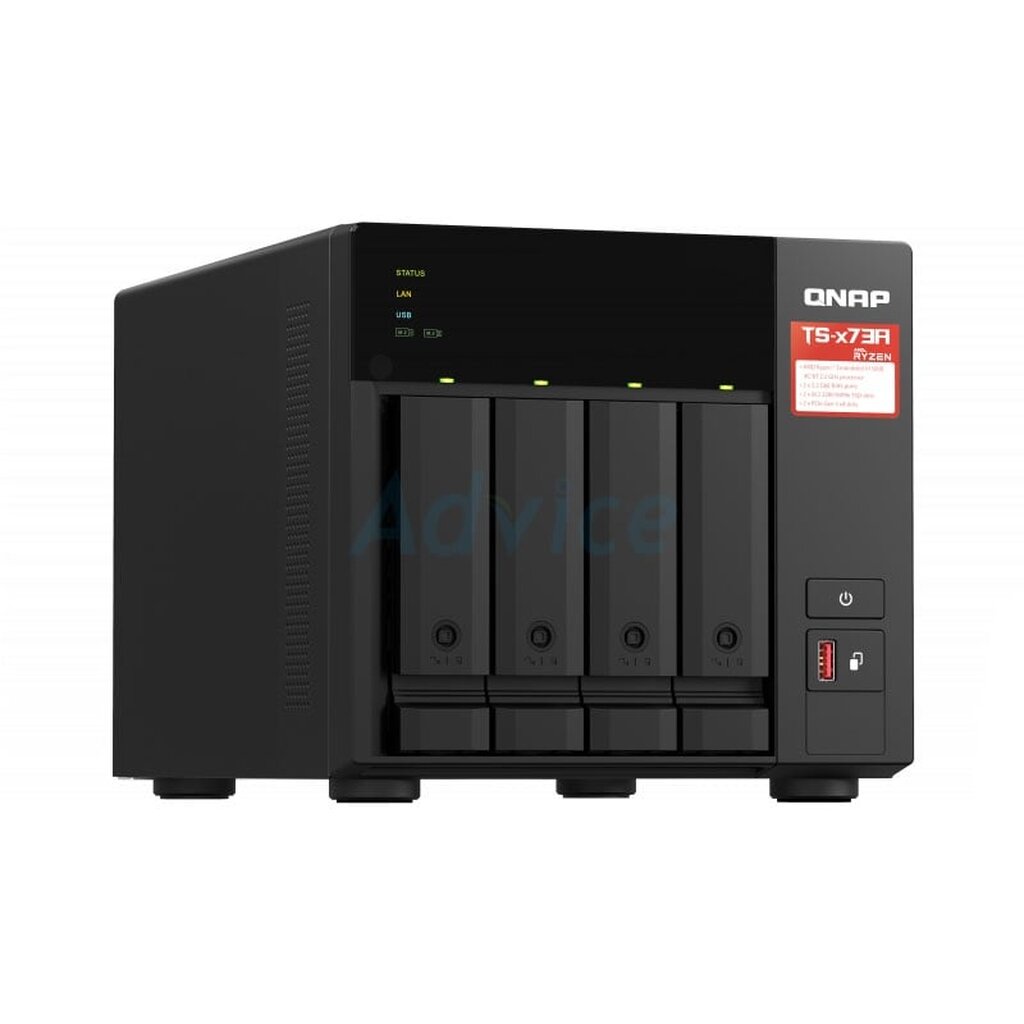

Brand QNAP
Model TS-473A-8G

CPU Model
AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor

Operating System QuTS hero h5.0.0

System Memory 8 GB SODIMM DDR4 (1 x 8 GB)

Drive Interface 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Number of Drives 4

Display Panel N/A

LED Indicators Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2

USB Interface 3 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
1 x Type-C USB 3.2 Gen 1 5V/1A 5Gbps

LAN Interface 2(2.5G/1G/100M)

Memory Slot 2

Buttons Power, Reset, USB Auto Copy

Networking 2.5 Gigabit Ethernet Port (2.5G/1G/100M)

RAID - 8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
- 6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity
- 4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity
- 3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity
- 2-bay: Single, RAID 0 (Stripe), 1

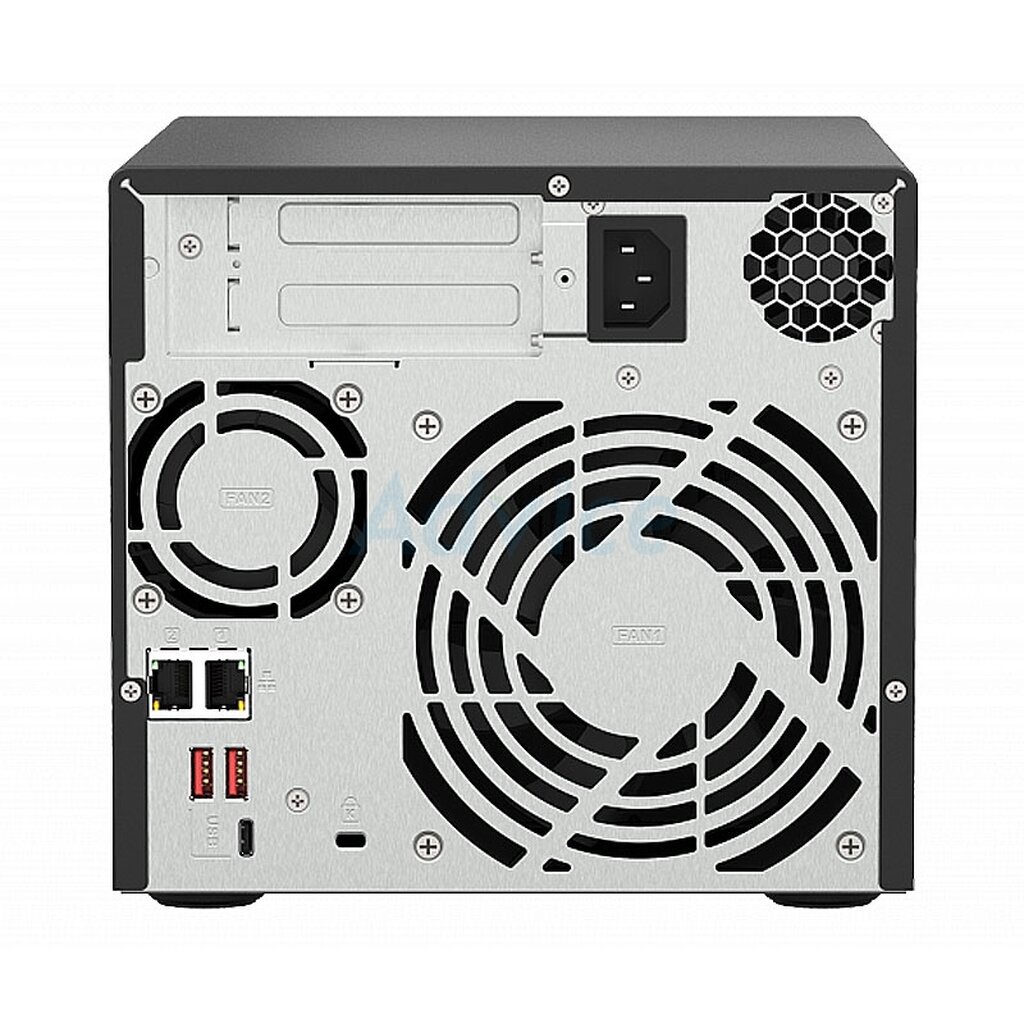

Cooling Fans System fan: 1 x 120mm
CPU fan: 1 x 60mm

Power Supply 250W, 100-240V AC, 50-60Hz, 3.5A

Power Consumption Power Supply Unit 250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption: HDD Sleep Mode19.576 W
Power Consumption: Operating Mode, Typical29.792 W

Environment Operating Temperature 0 - 40 C (32F - 104F)
Storage Temperature -20 - 70C (-4F - 158F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)

Packaging Content TS-473A
Ethernet cable x 1
Power Cord x 1
Flat head screw x 12 (for 3.5" HDD)
Flat head screw x 12 (for 2.5" HDD)
M.2 SSD Heatsink x 2
Drive tray keys x 2
Quick Installation Guide (QIG)



Dimension (W x D x H) : 18.80 x 19.93 x 28.00 cm
Net Weight 5.03 KG
Package Dimension (W x D x H) : 34.00 x 38.00 x 25.00 cm
Gross Weight 6.10 KG
Volume 32,300.00 cm3
รายละเอียดสินค้า NAS QNAP (TS-473A-8G, Without HDD.)
