Panel 100W
1. Schematic Display of Product
(Appearance and Port Instruction)
2. Function Description

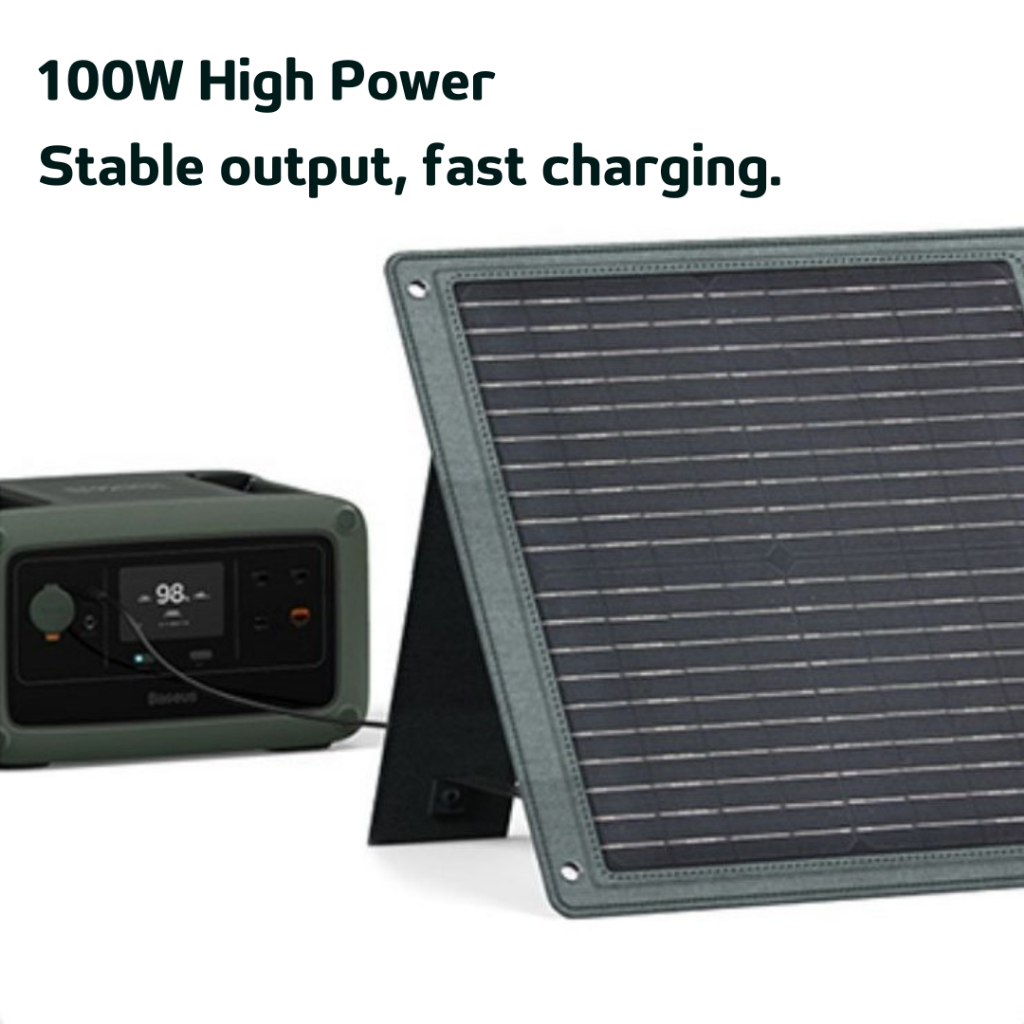

The maximum rated output power of this
product is 100W, when air mass at 1.5, power
density value at 1000W/m2 and temperature
at 25C.
3.Product Specifications
Name: Solar Panels 100W
Model No.: PETC-S100
Power Voltage: 18V
Power Current: 5.5A
Open-Circuit Voltage: 23.5V
Short Circuit Current: 6.1A
Operating Temperature Range:-10-65C
Net Weight: About 3.6kg
4. Package Including

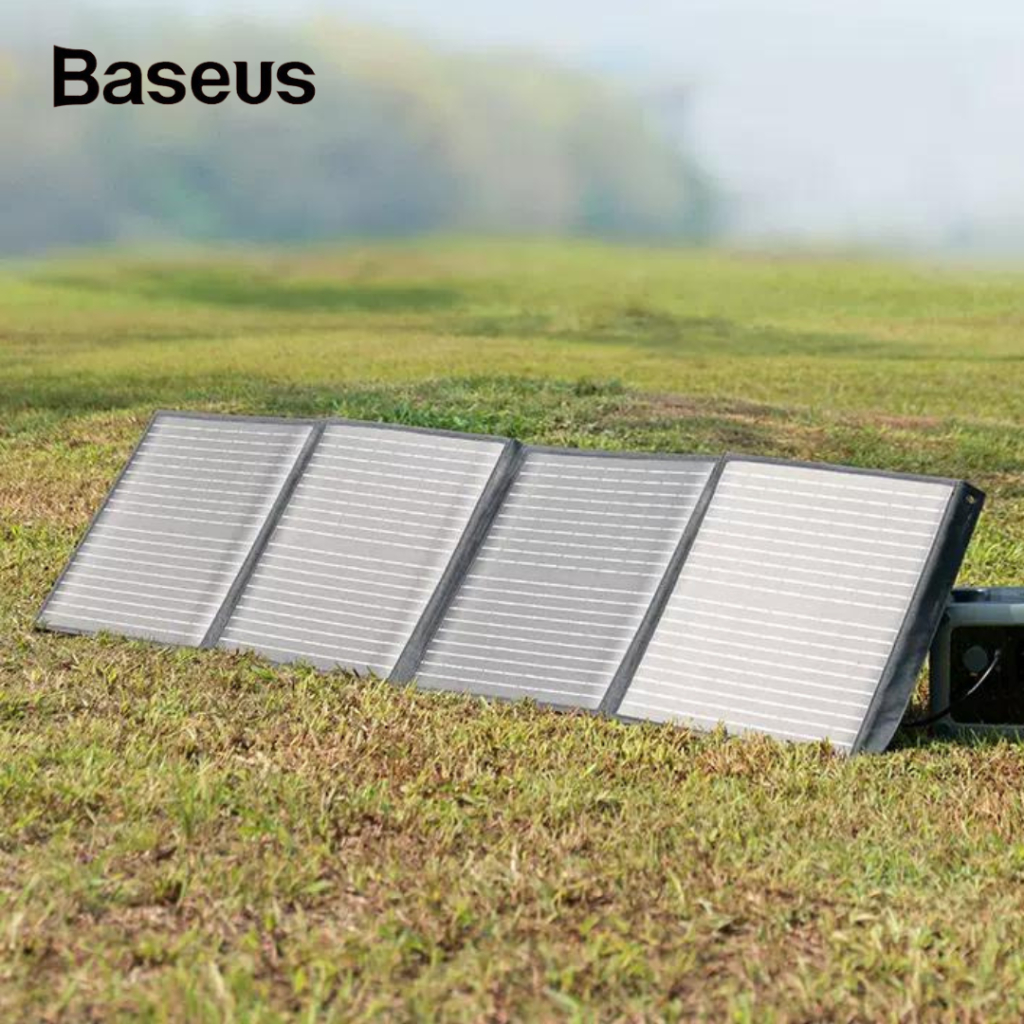

Baseus Energy Stack Solar Panel 100Wx 1
MC4 to 7909 Cable/Anderson Connectorx 1
5.Precautions
Please do not apply harsh physical actions to
the solar panels, like bashing, throwing,
squeezing, crashing, etc., for it may cause
irreversible damage to the panels.
Note:
The output power of the solar panels can be
influenced by many factors, like the incident
angle of the sunlight, the atmospheric
environment, the intensity of the sunlight,

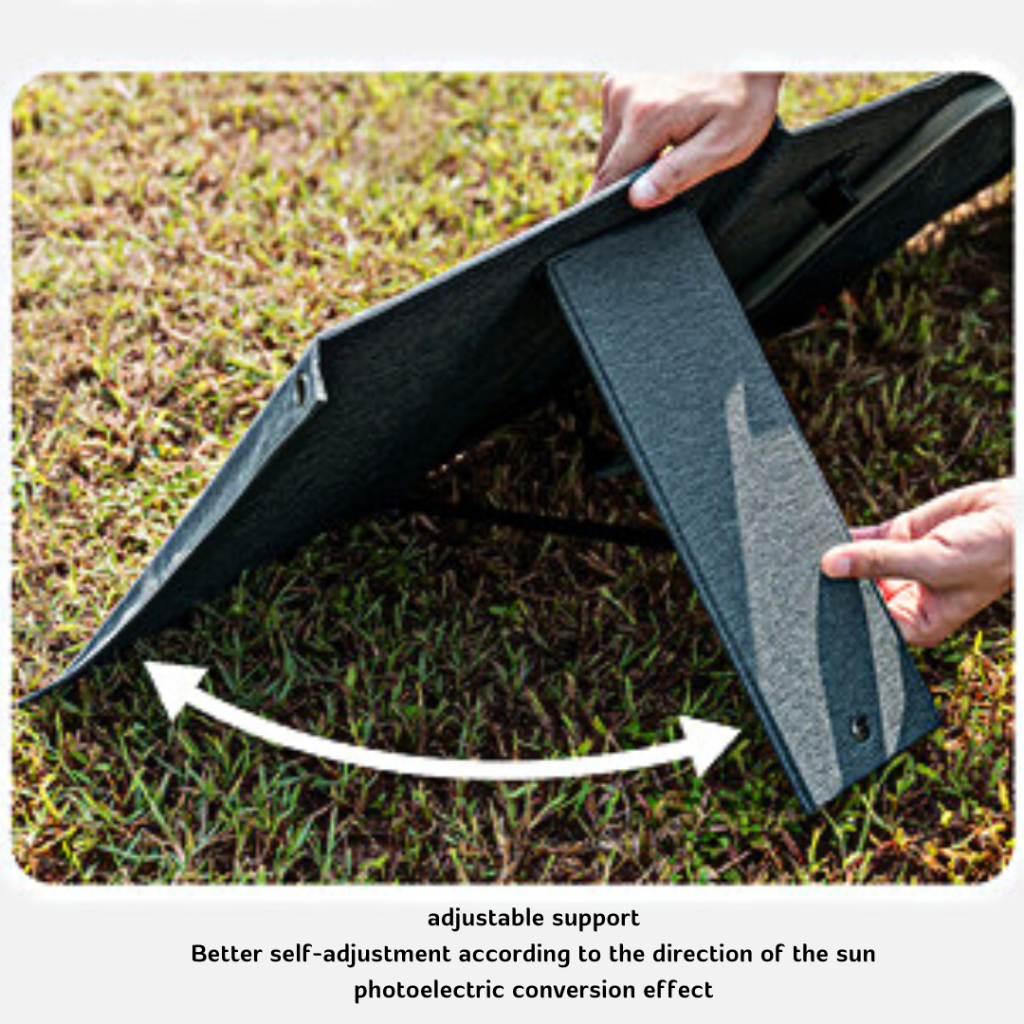

etc., Please adjust the solar panels manually
to the best lighting angle for optium output
efficiency.
