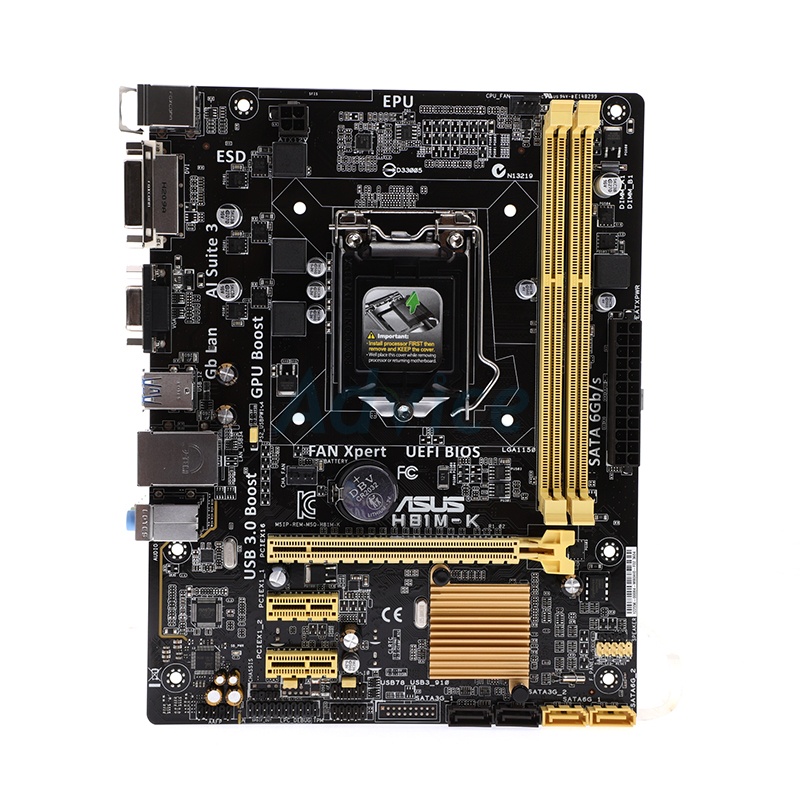

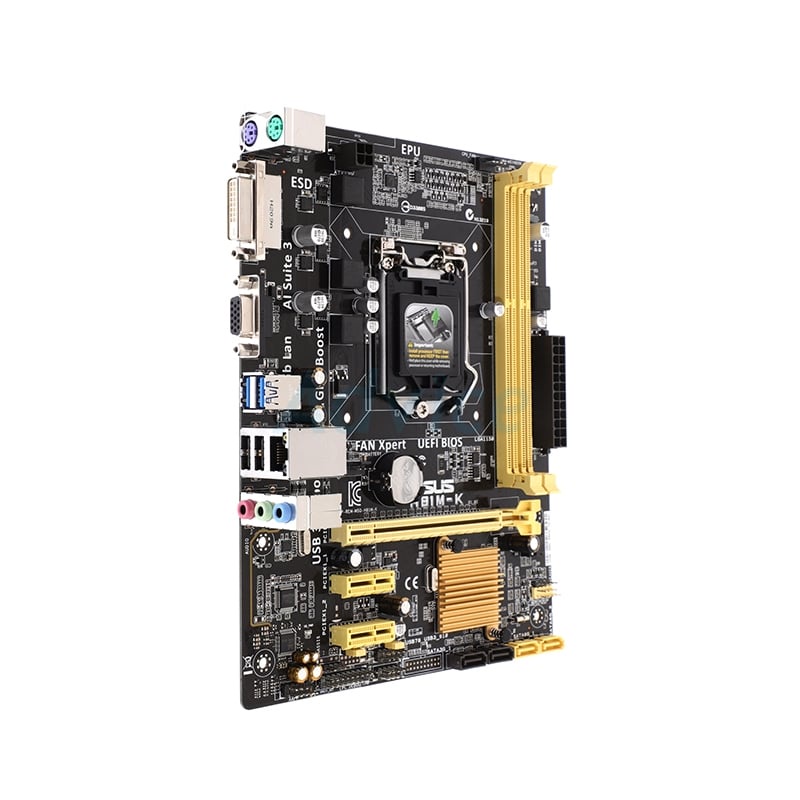

Model

H81M-K

CPU Support

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 22 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

CPU Brand

INTEL

Socket

1150

Chipset

Intel® H81

Memory Support

2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

Maximum Memory Bus

1600

Graphics

Integrated Graphics Processor

Multi-VGA output support : DVI/RGB ports

- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz

- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 1024 MB

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi Graphic Support

None

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *2

- Supports : Jack-detection, Front Panel Jack-retasking

Expansion Slots

1 x PCIe x16

2 x PCIe 2.0 x1

Maximum PCIe Version

PCIe 2.0

Storage

Intel® H81 chipset :

2 x SATA 6Gb/s port(s), yellow

2 x SATA 3Gb/s port(s), dark brown,

Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1

M.2 Storage Type Support

None

M.2 Slot

None

USB

Intel® H81 chipset :

2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)

Intel® H81 chipset :

6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

Internal I/O Connectors

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x SATA 6Gb/s connector(s)

2 x SATA 3Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Internal speaker connector(s)

1 x Clear CMOS jumper(s)

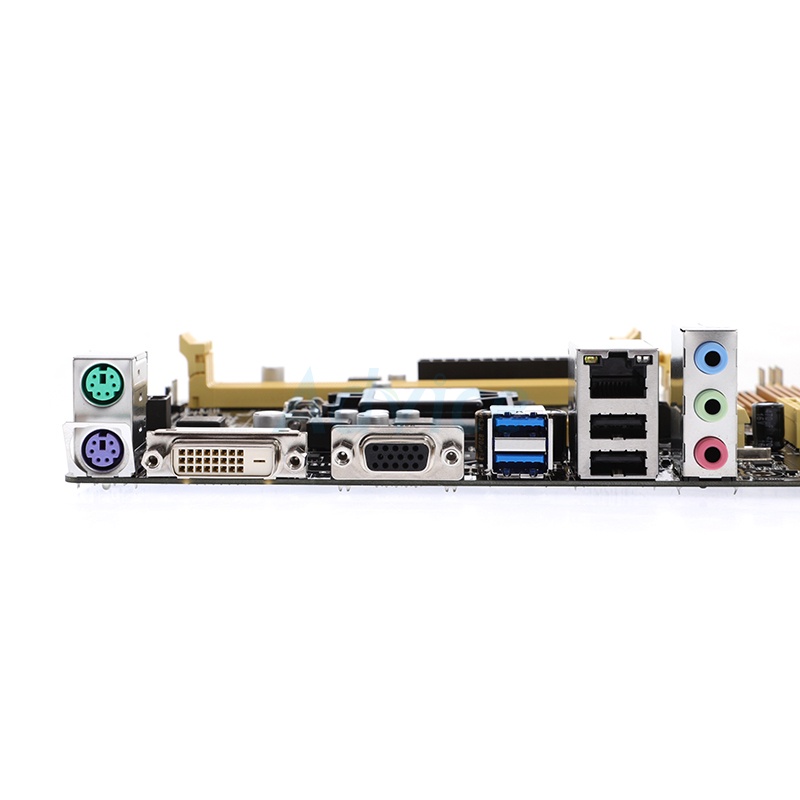

Back Panel Connectors

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x DVI

1 x D-Sub

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 1 (blue)

2 x USB 2.0

3 x Audio jack(s)

LAN

Realtek® 8111G, 1 x Gigabit LAN Controller(s)

Wireless Data Network

None

Form Factor

ATX

H/W Monitoring

N/A

BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Special Features

ASUS EPU :

- EPU

ASUS Exclusive Features :

- GPU Boost

- AI Suite 3

- Ai Charger

- Anti-Surge

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

- Network iControl

- USB 3.0 Boost

- Disk Unlocker

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution

- ASUS Fan Xpert

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

ASUS Q-Design :

- ASUS Q-Slot

Software Features

Drivers

ASUS Utilities

EZ Update

Anti-Virus Software (OEM Version)

Operating System Support

Windows® 8

Windows® 7

Package Contents

User´s manual

I/O Shield

2 x SATA 6Gb/s cable(s)
