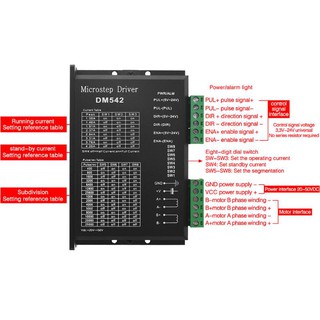

❤❤ DM542 Stepper Motor Driver For 57 86 Series 2-phase Digital Stepper Motor
ข้อมูลสินค้า
ราคา
458.00 388.00 บาท
ขายแล้ว
105 ชิ้น
ร้านค้า
The driver uses discrete components structure, as long as no over voltage and wiring is right, please rest assured that two-phase 4-wire, 6-wire, 8-wire can be used. 57 series 4.5A or less (including 4.5A) two-phase four-wire, six-wire, eight-wire stepper motor also can be used
Feature:
20KHz chopping frequency
Optical isolation signal input

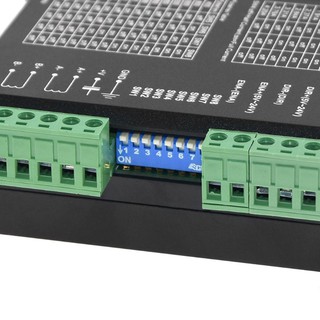

Output current DIP switch is adjustable
Bipolar constant current chopping method
High segmentation: 2,4,8,16,32,64,128,256. 5,10,25,50,125,200
TTL input signal compatible,while accepting differential signal input
Specifications:
Power supply:DC 24-60 (V)
Current maximum:4.5A
Output phase current:1.5A-4.5A
Logic input current:10-20mA
Operating temperature:-15℃—+45℃
Size:11.7*8.5cm/4.61*3.35inch
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Contents:
1 x DM542 stepper motor driver
