Feature:
1. All Metal Motor: The DC geared motor adopts all metal materials and precise machining to ensure stable operation and low noise.
2. Pure Copper Winding: The geared motor adopts pure copper winding, has low heat generation, and low loss, quiet and durable.
3. Metal Gear Box: The metal gear box is more wear resistant and rustproof, which greatly extends the service life of the motor.
4. Strong Magnetic Field: The thickened magnet has a strong magnetic field and a large torsion, and can prevent the signal from being interfered and spread out.
5. Wide Applications: Can be used for smart home appliances, office automation, auto parts, robots, industrial automation, etc.

Specification:

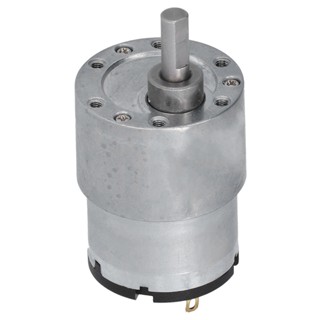

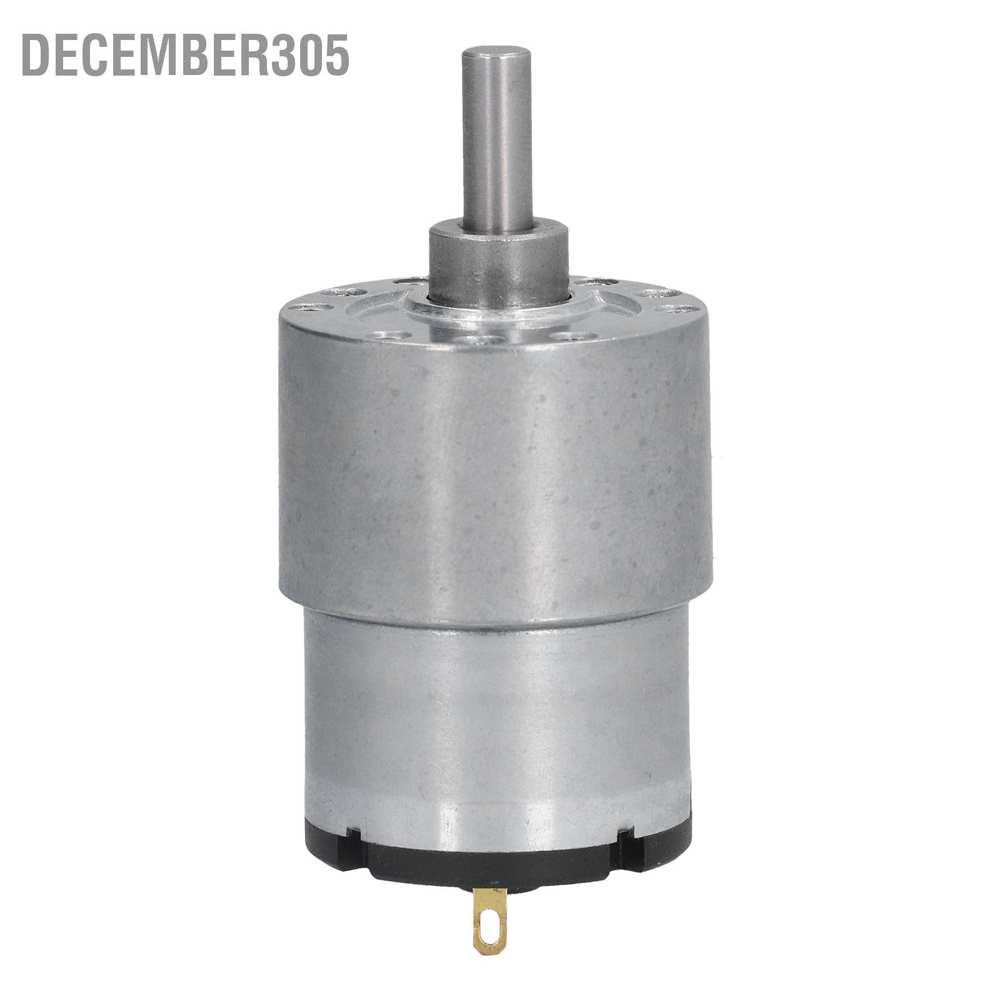

Item Type: Gear Motor
Material: Copper, metal, magnet
Uses: Can be used in smart home appliances, office automation, automobiles, medical treatment, personal care, robotics, electronic locks, industrial automation and other fields
Operating Voltage: DC 12V
Shaft Diameter: Approx. 6mm / 0.24in (D shaft)
Shaft Length: Approx. 15.5mm / 0.6in
CW and CCW: Support
Reduction Ratio
6.25
10
18.75
30
56.25
90
131
168
270
506
No Load Speed r/min
960
600
320
200
107
66
45
35
22
12
Rated Load KG.CM
0.1
0.15
0.3
0.9
2
3
4
5
8
16
Load Speed r/min
750
470
270
150
90
47
36
27
16
10
Rotation Torsion KG.CM
0.6
1
1.8
3
5.6
9
13
17
22
Prohibited
L Size mm
Approx. 19mm / 0.75in
Approx. 22mm / 0.87in
Approx. 24mm / 0.94in
Approx. 26.5mm / 1in
Approx. 29mm / 1.1in

Package List:
1 x Motor
