Model year

Model year
- 2022

Dimensions and Weight

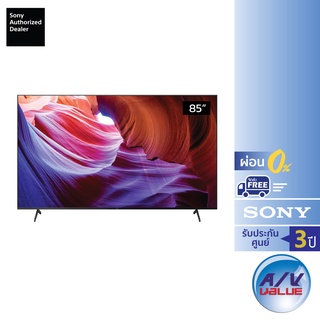

Screen Size (inch, measured diagonally)
- 85" (84.6")
STAND WIDTH (STANDRD POSITION)
- 61 3/4 inch (1,567 mm)
DIMENSION OF TV WITH STAND (SOUNDBAR POSITION) (W x H x D)
- 74.88 x 45.88 x 18.5" (1,901 x 1,165 x 469 mm)
STAND WIDTH (SOUNDBAR POSITION)
- 61 3/4 inch (1,567 mm)
Weight of Package Carton (Gross)
- 136.6 lb (62 kg)
Weight of TV without Stand
- 100.9 lb (45.8 kg)
VESA® Hole Pitch(W x H)
- 15.75 x 15.75 in (400 x 400 mm)
Dimension of TV without Stand (W x H x D)
- 74.88 x 43 x 2.88" (1,901 x 1,090 x 73 mm)
DIMENSION OF TV WITH STAND (STANDARD POSITION) (W x H x D)
- 74.88 x 44.38 x 18.5" (1,901 x 1,125 x 469 mm)
Weight of TV with Stand
- 104.7 lb (47.5 kg)
Dimension of Package Carton (W x H x D)
- 80.25 x 48.75 x 9.38" (2,035 x 1,238 x 237 mm)
SCREEN SIZE (CM, MEASURED DIAGONALLY)
- 215 cm

Connectivity

HDCP
- HDCP 2.3 (for HDMI™ 1/2/3/4)
USB drive format support
- FAT16/FAT32/exFAT/NTFS
Component Video (Y/Pb/Pr) Input(s)
- No
HDMI inputs total
- 4 (4 side)
Variable Refresh Rate (VRR)
- Yes (for HDMI™3/4)
Composite Video Input(s)
- Hybrid with S-Center Speaker Input x1 (Side, Mini jack)
RS-232C Input(s)
- 1 (Side)
Subwoofer Output(s)
-
Digital Audio Output(s)
- 1 (Side)
Auto Low Latency Mode (ALLM)
- Yes (for HDMI™3/4)
IF (satellite) input(s)
- No
USB HDD Recording
- No
HDMI Audio Return Channel (ARC)
- Yes (eARC/ARC)
RF (Terrestrial/Cable) Connection Input(s)
- 1 (Side)
Headphone Output(s)
-
WI-FI FREQUENCY
- 2.4 GHz/5 GHz (for Wi-Fi Direct: 2.4 GHz Only)
USB ports
- 2 (side)
USB playback codecs
- MPEG1: MPEG1/MPEG2PS: MPEG2/MPEG2TS (HDV, AVCHD): MPEG2, AVC/MP4 (XAVC S): AVC, MPEG4, HEVC/AVI: Xvid, MotionJpeg/ASF(WMV): VC1/MOV: AVC, MPEG4, MotionJpeg/MKV: Xvid, AVC, MPEG4, VP8.HEVC/WEBM: VP8/3GPP: MPEG4, AVC/MP3/ASF (WMA)/LPCM/WAV/MP4AAC/FLAC/JPEG, WEBM: VP9/AC4/ogg/AAC/ARW (Screen nail only)
Wi-Fi Standard
- Wi-Fi Certified 802.11a/b/g/n/ac
CHROMECAST BUILT-IN
- Yes
BRAVIA SYNC (INCLUDING HDMI-CEC)
- Yes
APPLE HOMEKIT
- Yes
Features specified in HDMI2.1
- 4K120/eARC/VRR/ALLM
Audio Output(s)
-
Bluetooth profile support
- Version 4.2, HID (mouse/keyboard connectivity)/HOGP (Low Energy device connectivity)/SPP (Serial Port Profile)/Advanced Audio Distribution Profile (stereo audio) 1/AVRCP (AV remote control)
Ethernet inputs
- 1 (Side)
APPLE AIRPLAY
- Yes

Sound (Speakers and Amplifier)

Speaker Configuration
- Full Range (Bass Reflex) x 2, Tweeter x 2
Speaker Type
- Acoustic Multi-Audio Sound Positioning Tweeter
Audio Power Output
- 10 W + 10 W + 5 W + 5 W

Sound (Processing)

ACOUSTIC AUTO CALIBRATION
- Room & User Position Compensation
Sound modes
- Standard, Dialog, Theater, Music, Sports, Dolby Audio
VOICE ZOOM
- Voice Zoom 2
Dolby audio format support
- Dolby™ Audio, Dolby™ Atmos
DTS audio format support
- DTS Digital Surround
Headphone 3D Surround Ready
- Yes
Simulated surround sound
- 3D Surround Upscaling
ACOUSTIC CENTER SYNC
- Yes (Sony-compatible Soundbar)
FM Radio
- No
Sound processing
- No

Features for​ PlayStation®5

Auto HDR Tone Mapping
- Yes
Auto Genre Picture Mode
- Yes

Accessories

Optional accessories
- Camera Unit (CMU-BC1) 4; Wallmount Bracket (SU-WL855) Depends on country selection

Whats In The Box

- Table Top Stand
- Voice Remote Control
- Batteries
- AC Power Cord
- Operating Instructions
- Quick Setup Guide
