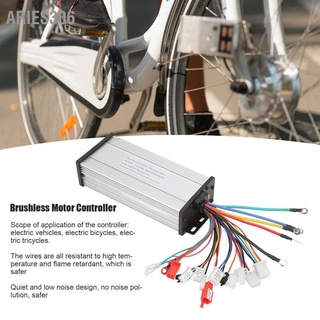

Aries306 48V 60V 800W Sine Wave Controller Brushless Motor for Electric Bike (Silent Version)
ข้อมูลสินค้า
ราคา
1,881.00 811.00 บาท
ขายแล้ว
2 ชิ้น
ร้านค้า
------------------------------------❀ Welcome Jupiter Home ❀ ------------------------------------
❀Always provide the best products & lowest price❀
✔Ready to sent ✔High quality ✔Best price
☛Free Gifts:Follow Shop
☞PS: If you want a free gift, please send me the screenshot that you follow my shop and leave a message on your order.
------------------------------------ * Product details* ------------------------------------
Feature:
1. Heat Dissipation Function: The controller shell is made of high quality aluminum alloy with groove design. Due to its good heat dissipation function, it can protect the internal circuit and avoid thermal overload.
2. Provide Stable Speed: The brushless motor sine wave controller can provide stable speed and sensitive braking and direction change control.
3. High Temperature Resistant Wires: All wires are made of high temperature resistant and flame retardant material, which are safer.
4. Applicable Model: The 48V 60V 800W brushless motor controlle ris suitable for electric vehicles, electric bicycles and electric tricycles.
5. Low Noise Design: 48V 60V 800W sine wave controller adopts quiet and low noise design, no noise pollution, safe and worry free.
6. Reinforced Screws: The reinforced screws are durable, and each screw is fixed with waterproof thermal conductive glue, and the waterproof effect is better.
Specification:
Item Type: Electric Vehicle 48V 60V 800W Sine Wave Controller
Product Material: Aluminum Alloy
Color: As Pictures Shown
Weight: Approx. 610g / 21.5oz
Voltage: 48V, 60V
Power: 800W
Current Limit: 30±1A
Phase Angle: 60°, 120°
Turning Voltage: 1.1-4.2V
Undervoltage: Automatic1 electric door lock line
2 positive and negative poles lines of the power supply
3 motor phase wires
1 anti theft alarm wire (red: positive, black: ground)
1 anti theft alarm line (orange: anti theft electric door lock, blue: anti theft signal, green: sensitivity line)
2 Three mode default pink line
1 high battery brake line (purple: high electric brake signal)
1 low battery brake line (yellow: level brake, black: ground wire)
1 button three speed cable (pink: button signal, black: ground)
1 reversing line (gray: reversing signal black: 1 ground wire)
1 motor hall line (red: 5V positive, black: ground, yellow: green and blue hall)
1 gear shift line (blue: low speed signal, brown: high speed signal, black: ground wire)
White line black head: 2 learning line
Orange line black head: 1 cruise line
Green wire transparent head: 1 meter wire
Blue and white line transparent head: 1 LCD instrument line
1 low battery brake cable (black: bottom wire, yellow: low battery brake signal)
Three wire handle (red: 5V positive, green: signal wire, black: ground wire)
Cruise line (1 white line black head + 1 orange line black head)
Pink line white head (dual mode three mode switching line)
Package List:
1 x Controller
