---------------------- ❤Product Introduction ❤-----------------------

1. Higher Accuracy: Wide in speed adjustment range, the DC speed controller ensures the stable working performance with high efficiency.
2. Standard Design: Supports 220V AC input and 90V DC output, the speed regulator enables direct start up when there is DC voltage.
3. Reversible Uses: To reverse the CW and CCW rotation direction of your DC , you can changing the wiring between M+ and M‑ terminals.
4. Wide in Fitting: Suits perfectly for 50W, 100W, 120W, 200W, 300W, 400W and so on, the speed control switch has flexible application.
5. Easy to Install: Compact in size and light in weight as well, the DC speed controller is very convenient to install within minutes.

Specification:

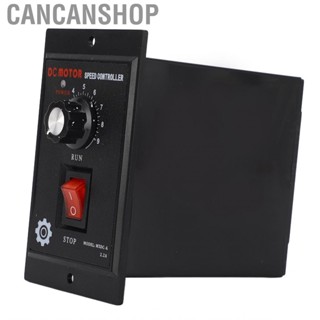

Item Type: DC Speed Controller
Input: 220V AC
Output: 90V DC
Overall Dimension: Approx. 100 x 60 x 114mm / 3.94 x 2.36 x 4.49in
Opening Size: Approx. 81 x 53mm / 3.19 x 2.09in
Installation Method: Panel Screw Installation

How to Use:
1. Before using, please adjust the external speed knob to 0 to avoid generating instantaneous large current and damaging the controller.
2. The rear wiring terminal AC indicates the AC input voltage, M+ and M‑ indicate that the DC power output is connected to the DC , and P1 and P2 indicate the emergency stop terminal. When P1 and P2 are shorted, the  stops running.
3. This product uses a built in safety fuse tube for overcurrent or short circuit protection. If it is fused, please replace it with a safety tube of the same specification. The panel action switch only controls the action or stop of the  and is not used in the power supply.

Package List:
1 x DC  Speed Controller
