-------------------------❤Product Introduction❤ -------------------------

1. Function: The wind solar controller is specially designed for wind and solar power generation systems, integrating wind and control, and can safely and efficiently control wind turbines and photovoltaic modules to charge batteries.
2. PWM Charging Technology: Solar charging uses PWM charging technology, which makes the power consumption of the controller smaller and the system more stable, and the power supply uses high quality imported components to ensure excellent controller performance and stability.
3. Safe and Dependable: At high wind speed or the wind power exceeds the and charging absorption range, the controller immediately starts the continuous discharge function, the equipment will protect the system.
4. LCD Display: The wind solar hybrid charge controller is designed with LCD screen, which can clearly display the voltage and power of the storage , more convenient for you to operate.
5. Settable Parameter: The wind and solar hybrid controller has humanized key operation function, all parameters can be adjusted according to your requirements to adapt to various use environments, and the of application is wider.

Specification:

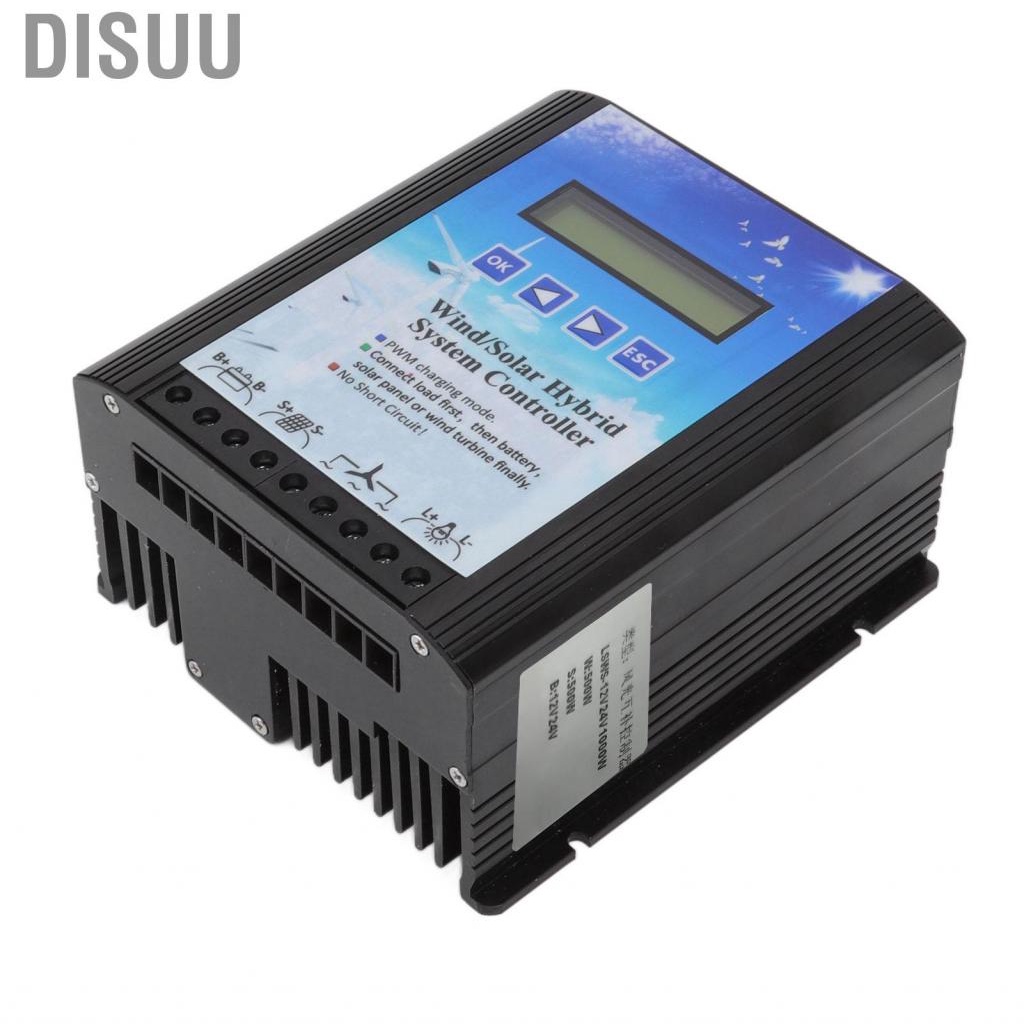

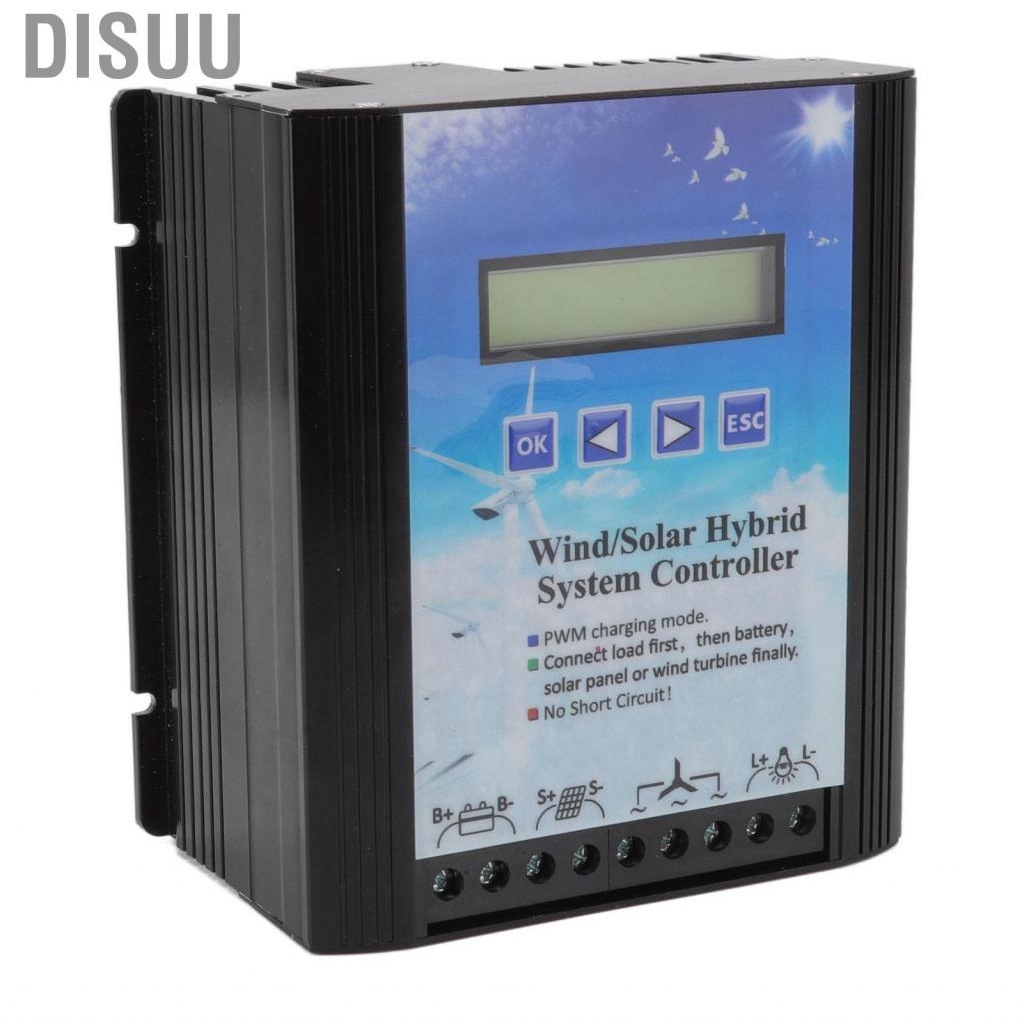

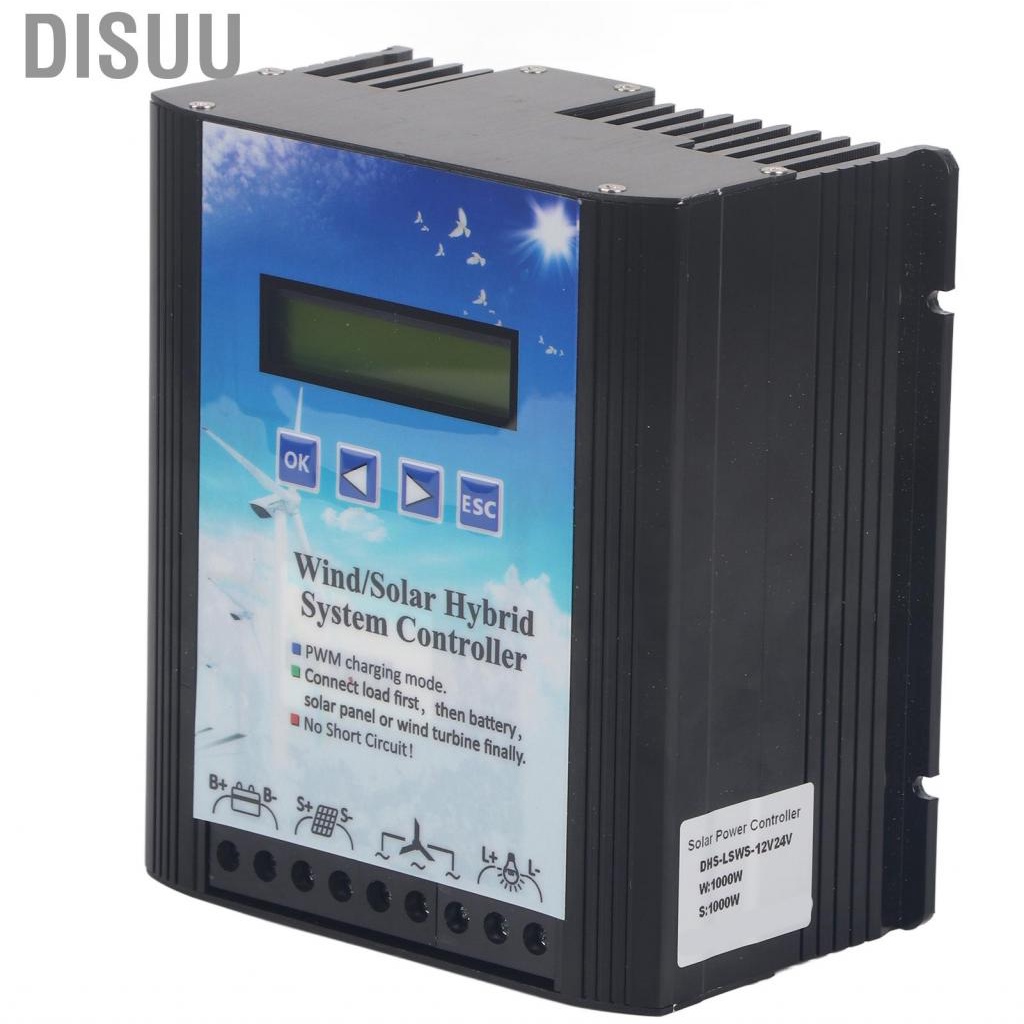

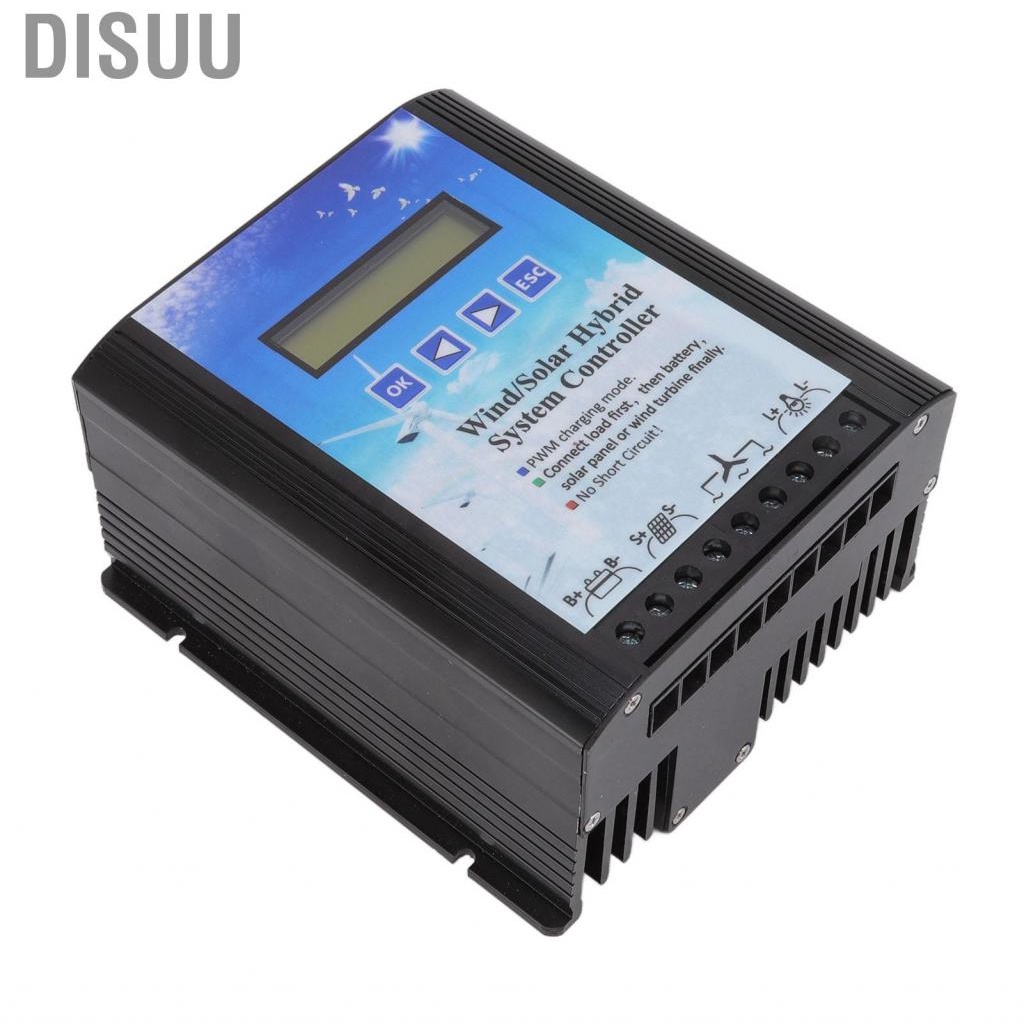

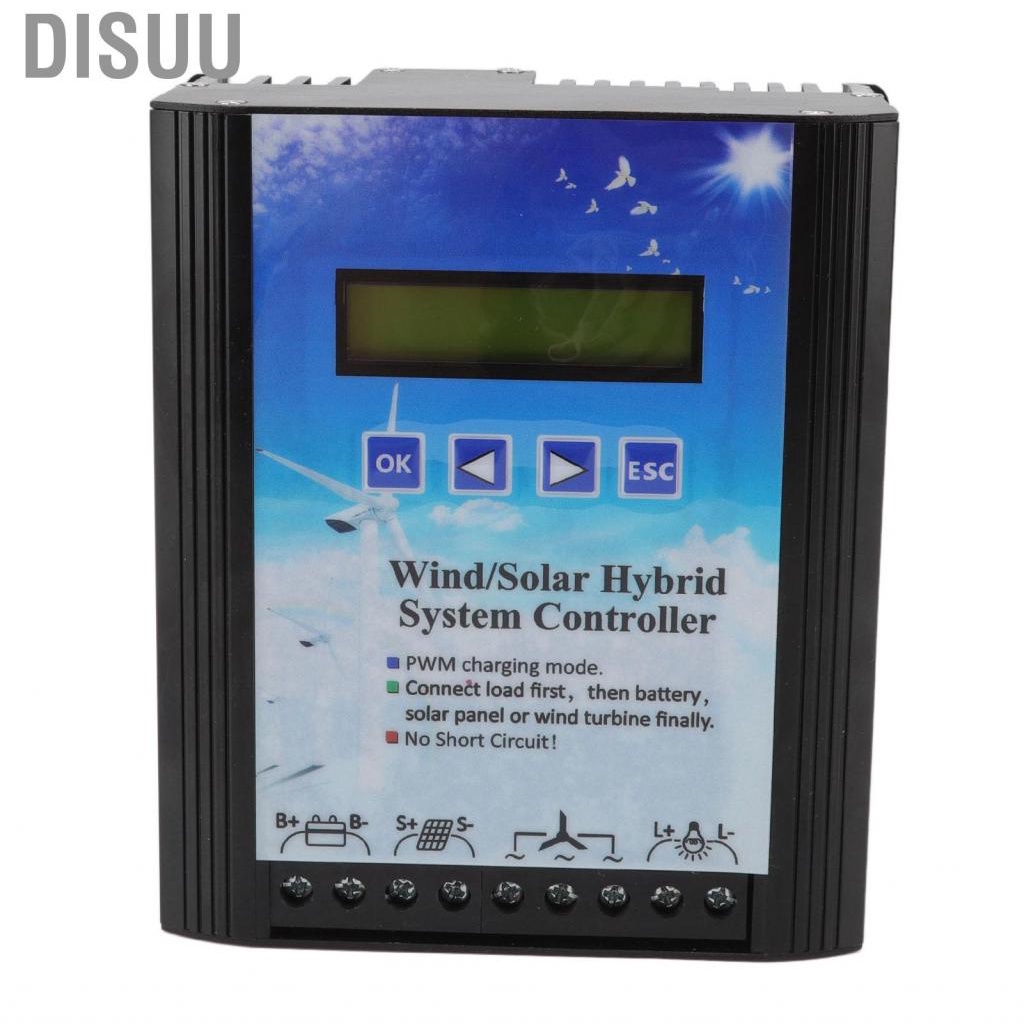

Item Type: Wind Solar Hybrid Controller
Material: Aluminium Alloy
Weight: Approx. 2006g / 70.8oz
Color: Blue
Size: Approx. 148 x 162  x 85mm / 5.8 x 6.4 x 3.3in
Product Introduction: This wind solar hybrid controller is specially designed for small off grid wind solar hybrid power generation systems. It is easy to operate, and can safely and efficiently control wind turbines and photovoltaic modules to charge batteries.
Function:
1. Fan overcurrent limit
This product provides the fan overcurrent limit. Once the fan exceeds the set upper limit current, the controller automatically starts PWM intelligent unloading to protect the fan.
2. Intelligent current limit of maximum current
You can manually set the upper limit of the on the controller based on the actual system conditions. The controller calculates the upper limit of the charging current (that is, 0.3 times the ) based on the upper limit of the to protect the .
3. Manual brake function
4. Fan and photovoltaic charging switch function
On the controller, you can manually set the fan and photovoltaic charging on or off.
5. Load output switch function
On the controller, the user can manually set the load side on or off.
6. The load output has 4 kinds of diversified working modes.
7. The load output has the functions of boost constant current source and buck constant current source for users to choose.
Electrical Parameters:
Fan Rated Power: 100W-1000W
Photovoltaic Rated Power: 100W-1000W
Rated System Voltage: 12V-24V automatic identification
Note: The above three parameters must meet the conditions: (rated power of fan and rated power of photovoltaic) / rated current of system ≤ 50A
Fan Maximum Access Voltage: 80V
PV Maximum Access Voltage: 80V
Fan Unloading Method: Built in electronic unloading
Fan Protection: Overcurrent protection unloading, manual brake unloading
Load Protection: Overvoltage protection, undervoltage protection, overcurrent protection
Fan Charging Method: PWM
Photovoltaic Charging Method: PWM
Display Mode: LCD display
Operating Temperature and Humidity Range: -20 to +55℃ / 35-85% RH (but no condensation)
Static Power Consumption: ≤1.2W
Load Parameters:
Photovoltaic Voltage (Lon): 6V (can be set)
Photovoltaic Voltage (Loff): 6V (can be set)
Common Load Maximum Output Current: 10A
Load Working Mode (Mode): Factory mode 1: light control on, light control off (can be set)

Package List:
1 x Wind Solar Hybrid Controller1 x Manual

Note:
1. It is recommended to connect the fan when there is no wind or breeze. The fan that rotates at high speed must be connected after the controller is started.
2. When the controller is working normally, it is strictly forbidden to disconnect the , this operation may cause unpredictable consequences
3. Do not use this product without a
4. To prevent water from entering the inside of the controller, please ensure that the cables used in the entire power generation system are firmly connected, well insulated and of suitable specifications
5. Before installation and maintenance, ensure that the controller is in a safe and uncharged state. Please install the controller in a dust free, dry and ventilated place, and avoid rainwater infiltration and direct sunlight.
