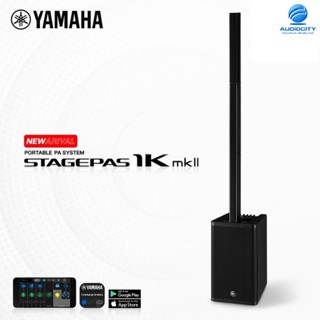

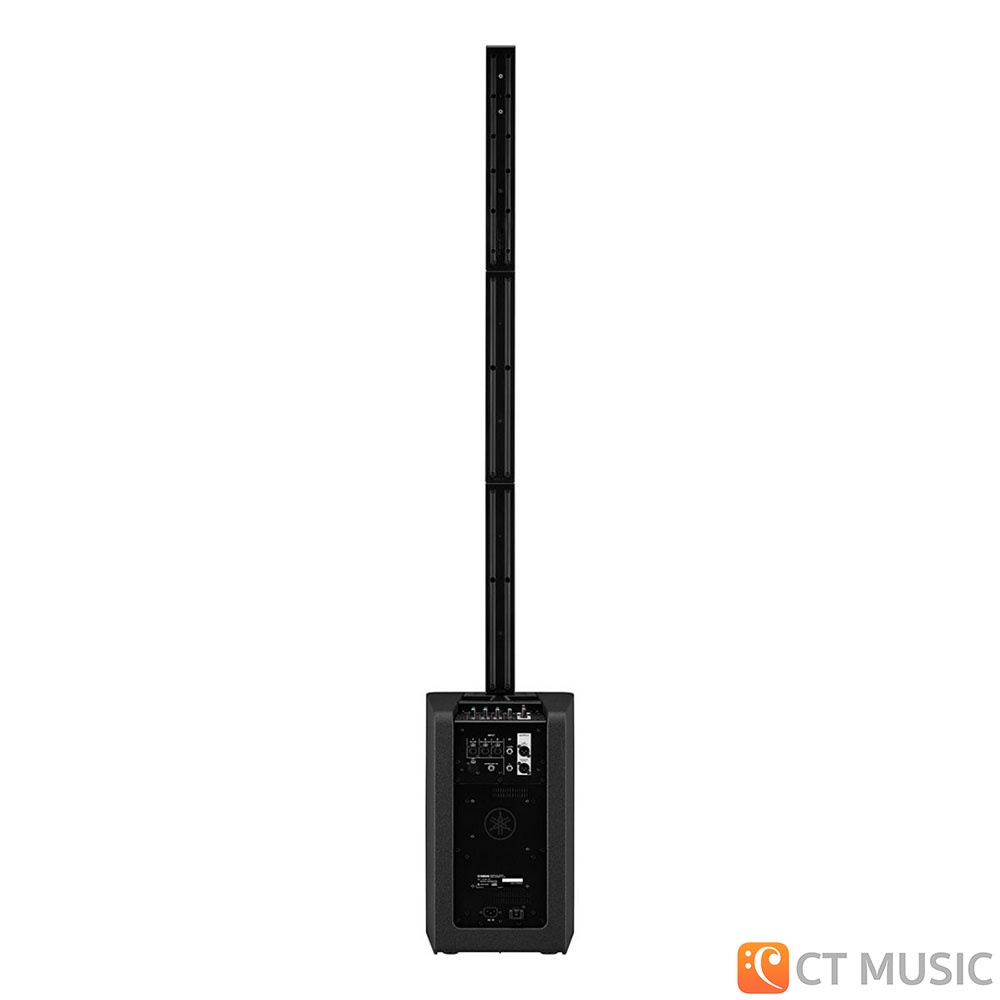

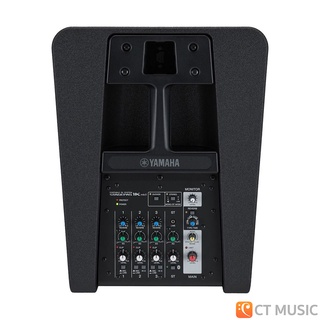

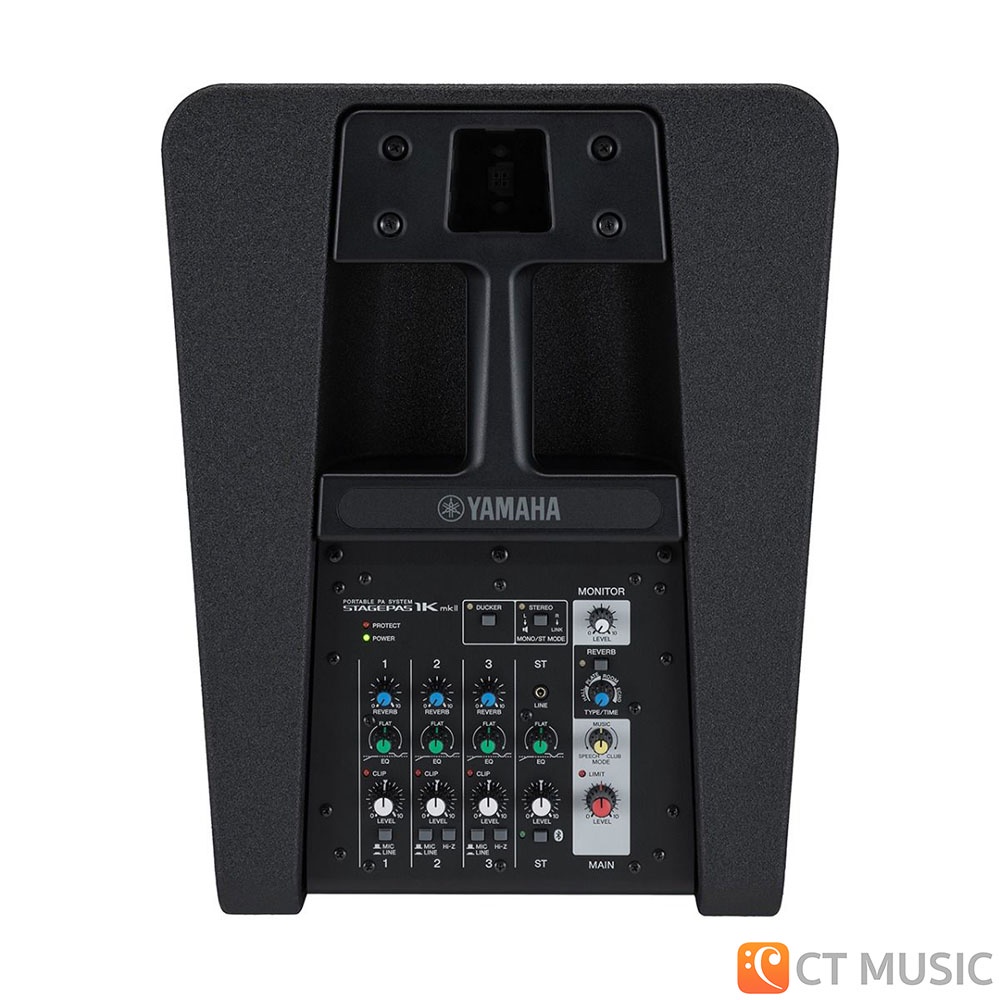

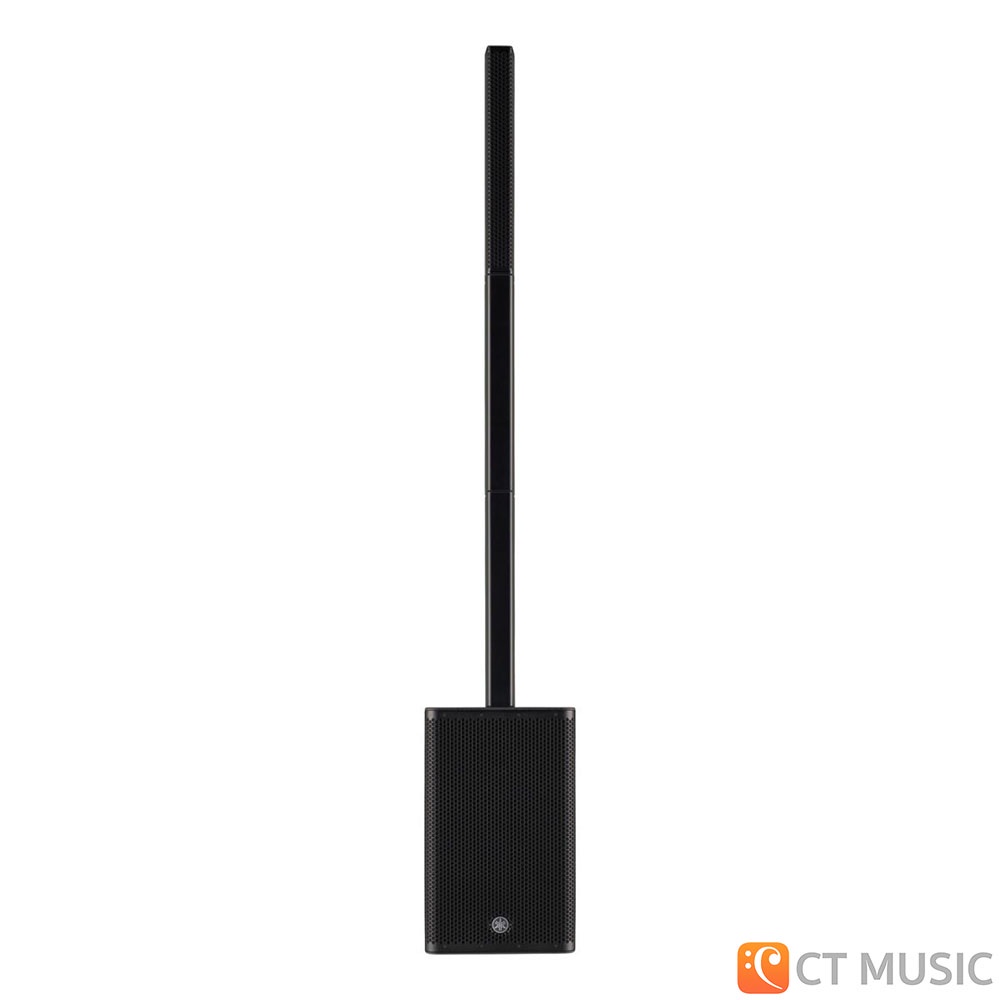

📮 โค้ดใช้ได้ตั้งแต่ 1 - 30 พ.ย. เท่านั้น!! The STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that enables aspiring artists to focus on their music and get the most out of their performances. Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII boasts the same combination of lightweight cabinet design, professional mixing functions, and simple operability, that has elevated the STAGEPAS all-in-one package above all other portable PAs. By adopting a concert-quality mixer and speaker, we have raised the bar for portable PA by utilizing Yamaha’s unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.

คุณสมบัติ
• 1100W power output
• Biggest in the class 12-inch subwoofer for low frequency
• 1.5-inch x10 slim line array speaker for high frequency
• Digital mixer (3 mono mic/line + 1 stereo line)
• Multi band comp “MODE” for master output
• 1-knob EQ per channel
• High resolution SPX digital reverb (4 types, parameter control)
• Priority Ducker for stereo channel
• 4 band PEQ per channel via remote control APP “STAEGPAS Controller”
• 2x Hi-Z (high impedance) inputs
• Link out and monitor out
• Dedicated cover included
• Optional reverb foot switch (FC5)
• Optional dolly (DL-SP1K) for more portability
สเปค
STAGEPAS 1K MKII
Outline
Type Powered subwoofer with a line array speaker
Mixing capability Mixing channels 5 (Mono x3 + Stereo x1)
Input channel functions Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
Output channel functions MODE (SPEECH/MUSIC/CLUB)
I/O Inputs Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1
Outputs Link out x1, Monitior out x1
Bluetooth Bluetooth Ver.5.0, A2DP (SBC, AAC)
Control and others Reverb foot switch, STAGEPAS Controller (iOS/Android app)
On-board processors DSP SPX digital reverb (4 program, parameter control)
General specifications
Speaker type Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed
Frequency range (-10dB) 37 Hz – 20 kHz
Coverage area H170ﾟ x V30ﾟ
Crossover 240 Hz
Maximum output level (1m; on axis) 125 dB SPL
Components LF Powered subwoofer: 12” (30 cm) Cone
HF Line array speaker: 1.5” (3.8 cm) Cone x 10
Amplifier class Class-D
Power rating Dynamic 1100 W
Power consumption 25 W (Idle), 91 W (1/8 power)
Power requirements Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz
Handle Top of powered subwoofer x1
Dimensions (W x H x D) System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)
Weight System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each)
Accessories Power cord x 1, Cover x 1
Options Yamaha DL-SP1K (Dedicated dolly), FC5 (foot switch for reverb ON/OFF)
