The 6000 counts digital automotive multimeter is well designed with convenient operation, accurate reading, true RMS, clear full symbol LCD display and complete functions. It can measure DC/AC voltage, DC/AC current, resistance, capacitance, frequency, temperature, speed, closing angle, lamp test, positive and negative pulse, crystal diode, triode parameters and circuit on and off, which is very suitable for vehicle maintenance and debugging.

Features:

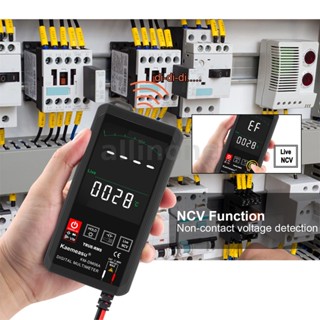

Multiple Measurement Functions: includes the measurement of dwell angle, rotational speed, duty cycle, DC/AC voltage, DC/AC current, resistance, capacitance, frequency, temperature, battery, positive and negative pulse, NCV measurement and test lamp measurement, and transistor hFE test, diode test, and on-off test.
Data Hold Function: locking the measured data for conveniently read and record.
More
Features: low battery indicator, 15 minutes auto-off function, probe pen slot designed and supporting bracket.
LCD Display with Backlight Function: 6000 counts clearly full symbol LCD displayed, manual on/off the backlight of the multimeter for easily check the readout in the dark environment.
Equipped with Protective Cover: in addition to the protection of the tester, but also can support the tester from multiple angles, convenient for observation.
Practical & Functional Tester: tester uses the latest software and technology,
Features of automatic calibration, high precision, and good stability, which can be widely used in the testing and maintenance on the vehicle.

Specifications:
Material: ABS
Maximum Display: 5,999 (6,000 display)
Dwell Angle Measurement Range: 1CYL: 0-180°, 4CYL: 0-90°, 6CYL: 0-60°, 8CYL: 0-45°
Accuracy: ±(1.2%+2)
Rotational Speed Measurement Range: 500~15000rpm
Rotational Speed Accuracy: ±(1.2%+2)
Duty Cycle Measurement Range: 0~100%
Duty Cycle Accuracy: ±(1.2%+2)
DC Voltage: 6V/60V/600V±(0.5%+3), 1000V±(0.8%+3)
AC Voltage(TRMS): 6V/60V/600V±(0.8%+3), 750V±(1.2%+3)
DC Current: 6mA/60mA/600mA±(1.2%+3), 20A±(2.0%+5)
AC Current(TRMS): 6mA/60mA/600mA±(1.2%+3), 20A±(2%+5)
Resistance: 600Ω±(0.8%+3), 6KΩ/60KΩ/600KΩ/6MΩ±(0.8%+2),60MΩ±(1.0%+5)
Capacitance: 6nF/60nF±(5%+3), 600nF/6uF/60uF/600uF±(3%+3), 6mF/60mF/100mF±(5%+3)
Temperature:
-40～400℃±(0.75%+4), 400～1000℃±(1.5%+15)
-40～752℉±(0.75%+4), 752～1832℉±(1.5%+15)
Frequency: 6Hz～10MHz±(5%+3)
Auto Power off: 15 minutes
Diode Test: Yes
hFE Test: Yes
Continuity Testing: Yes
Backlight: Yes
Data Hold: Yes
Range Select: Yes
Over Range Indication: Yes
Full Symbol Display: Yes
Full Automatic: Yes
RPM: 2 strokes, 4 strokes, the same function as MST-1000
True RMS: Yes
Flashlight: Yes
Working Environment: 0~40℃, <85%RH
Storage Environment: -10~50℃, <85%RH
Guaranteed Accuracy Environment: 23℃±5℃, <75
Power Supply: 1 * 9V 6F22 battery (NOT included)
LCD Size: 63 * 40mm

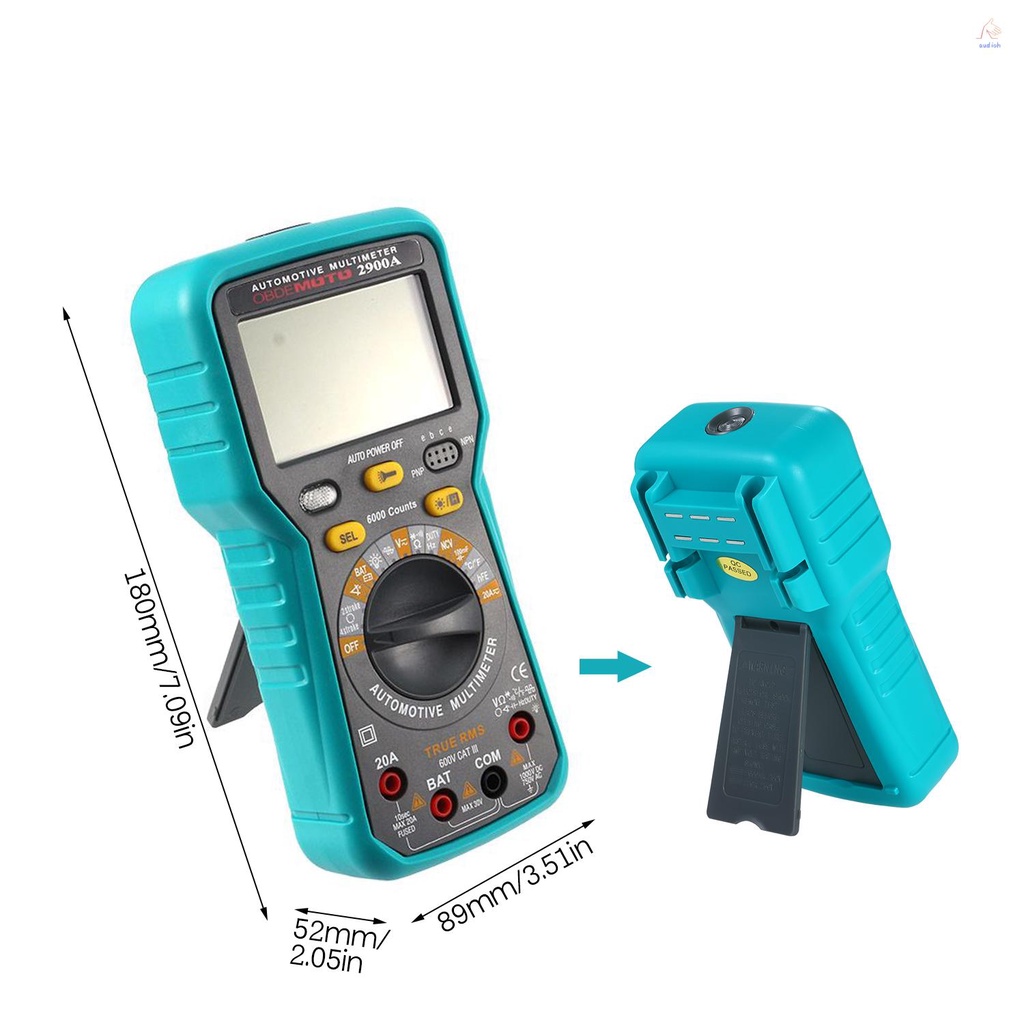

Item Size: 180 * 89 * 52mm / 7.09 * 3.51 * 2.05in
Item Weight: 306g / 10.79oz
Package Weight: 518g / 18.27oz
Package Size: 21 * 15
