Brand LONGWELL
Model H110-D4C (REV.2.0)

CPU Support Support for Intel Core i7 processors/Intel Core i5 processors/Intel
Core i3 processors/Intel Pentium processors/Intel Celeron
processors in the LGA1151 package L3 cache varies with CPU

CPU Brand INTEL

Socket 1151

Chipset Intel H110

Memory Support 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Due to a Windows 32-bit operating system limitation, when more than
4 GB of physical memory is installed, the actual memory size
displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules

Maximum Memory Bus 2400

Graphics Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Maximum shared memory of 512 MB

Multi Graphic Support None

Audio Audio Realtek ALC662 codec
High Definition Audio
2/4/5.1-channel

Expansion Slots 1 x PCI Express x16 slot, running at x16

Maximum PCIe Version Pcie 3.0

Storage 4 x SATA 6Gb/s connectors
1 x NVME M.2

M.2 Storage Type Support Pcie3.0

M.2 Slot 1

USB 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)

Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper

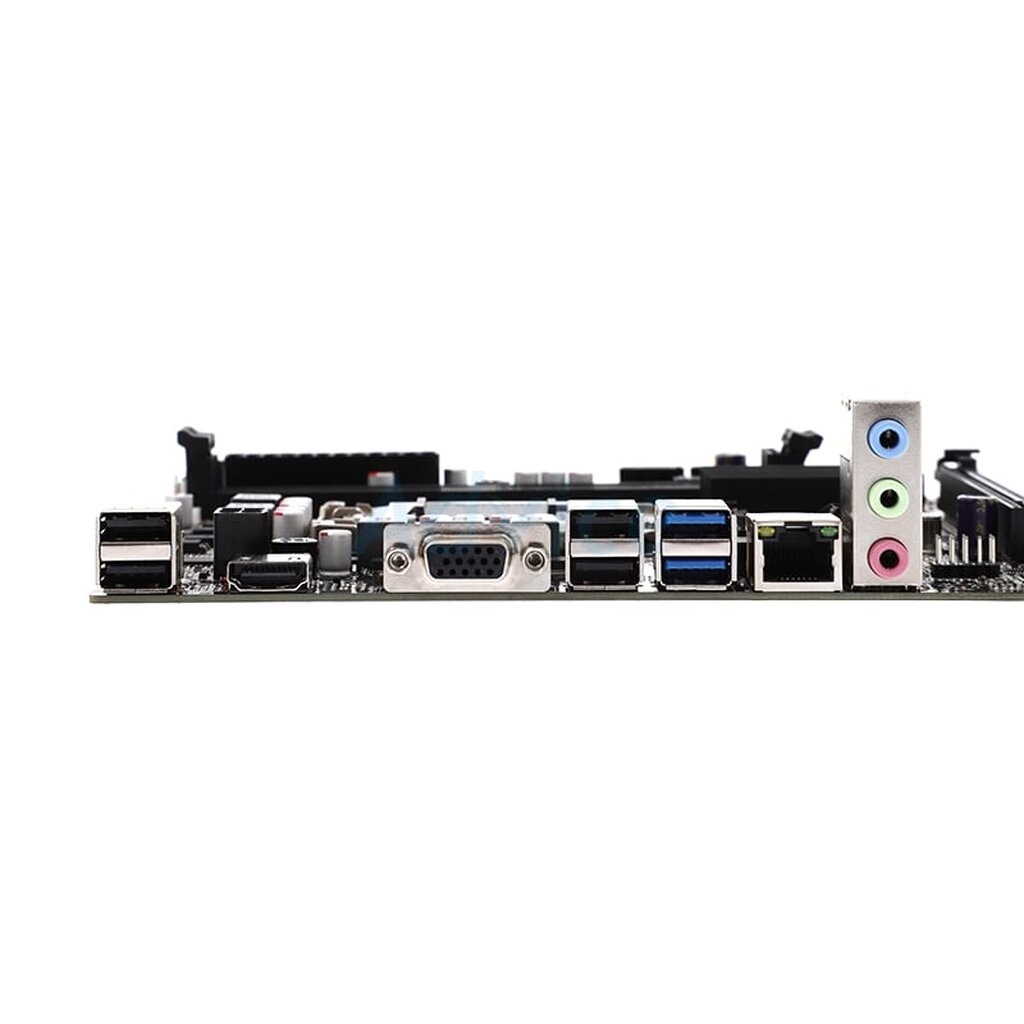

Back Panel Connectors 1 x USB2.0 mouse port
1 x USB2.0 Keyboard port
1 x VGA port
1 x HDMI port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

LAN Realtek LAN chip (10/100 Mbit)

Wireless Data Network None

Form Factor Micro ATX

H/W Monitoring N/A

BIOS N/A

Special Features N/A

Software Features N/A

Operating System Support N/A

Package Contents มีฝาหลัง+สายSata+Driver

Package Dimension (W x D x H) : 23.00 x 28.00 x 5.50 cm
Gross Weight 0.60 KG
Volume 0.00 cm3
รายละเอียดสินค้า MAINBOARD (1151) LONGWELL H110-D4C DDR4 (REV .2.0)
