Features:
Basic Functions: it can measure the thickness of the non-magnetic coatings (e.g. paint, zinc) on steel, the thickness of the insulating coatings (e.g. paint) on no-ferrous metals, and the no-ferrous metals coatings on insulating substrates.
Dual Working Principle: dual technology
Features automatic selection of magnetic induction or eddy current measurement techniques.
Four Calibrations: zero point calibration, one point calibration, two points calibration and basic calibration, you can choose the more proper calibrate method according to the the condition or the thickness of measured surface.
Direct Working and Group Working Two Modes: the DIR mode for a quickly and randomly measuring(the measured data are not saved after shutdown or working mode switching); the rest including 30 kinds of working mode, which can save 50 data of each mode(1500 totally).
High and Low Alarm for all Working Modes: once the measured data exceed the preset range, it will alarm you.

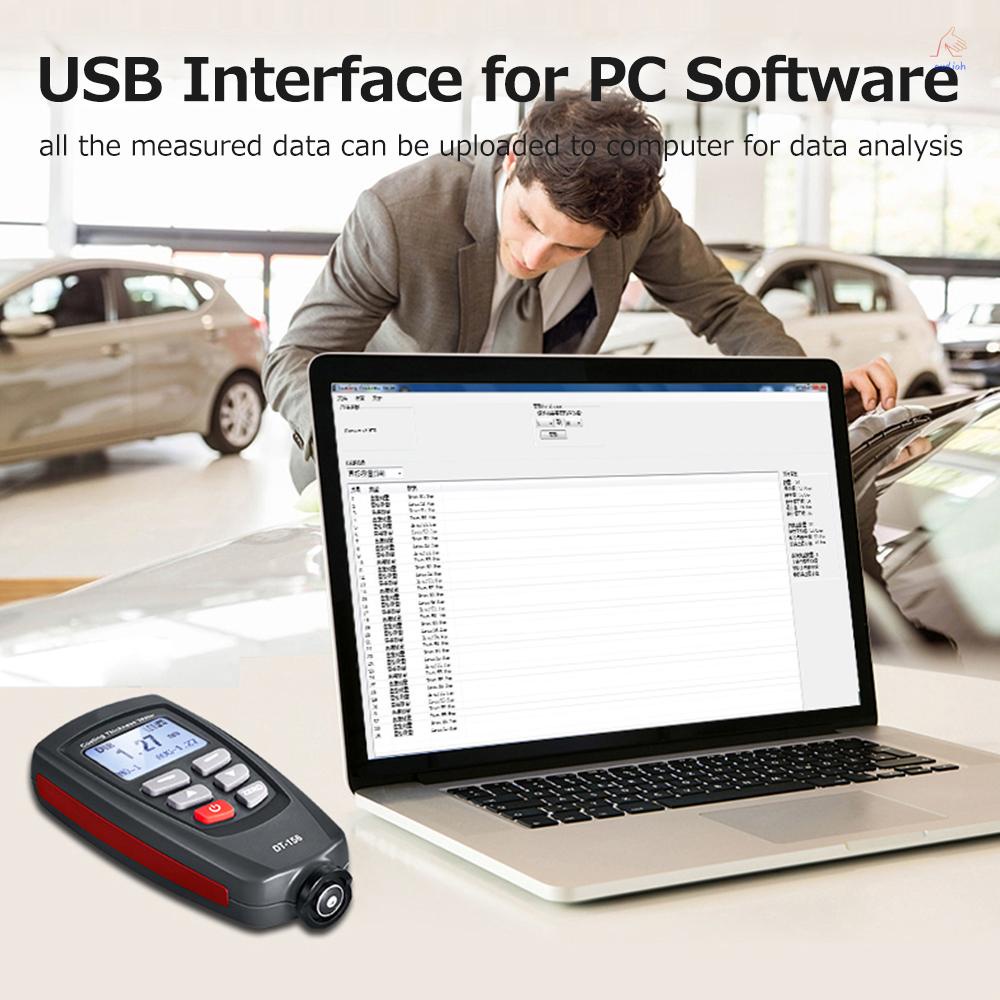

USB Interface for PC Software: all the measured data can be uploaded to computer for data analysis.
Other

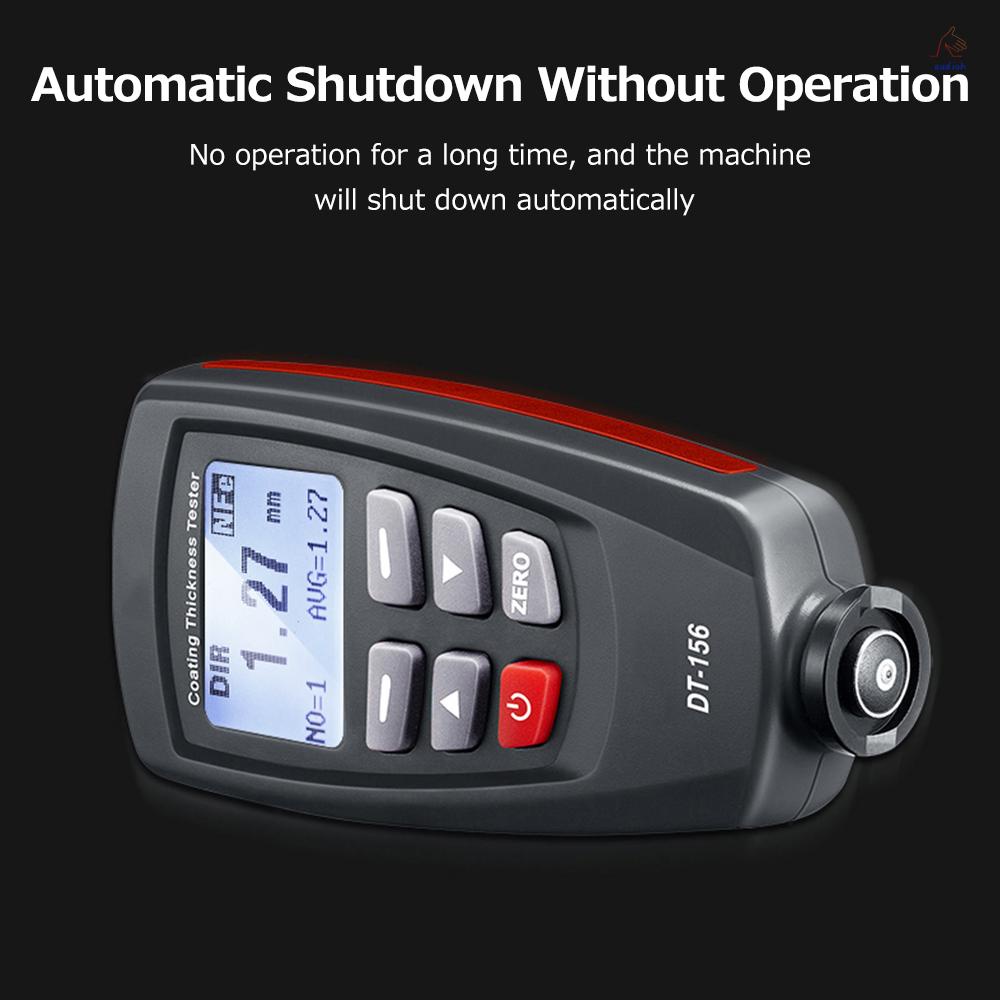

Features: AGV, MAX, MIN, NO., and S.DEV statistic display; Low battery, error indication; Delete single readings and all group readings easily; Automatic shutdown, etc.
Wide Applications: it is widely used in the inspection field of automobile manufacturing, metal processing industry, chemical industry, commodity inspection, etc.

Specifications:
Material: ABS
Sensor Probe: Fe/NFe
Working Principle: Magnetic induction/Eddy current principle
Minimum Curvature Radius: 1.5mm/3mm
Diameter of Minimum Area: 7mm/5mm
Basic Critical Thickness: 0.5mm/0.3mm
Measuring Range: 0~1800μm
Guaranteed Tolerance(of reading): 0~1000: ±(2.5%+2μm), 1000~1800: ±(3.5%)
Resolution: 0~100μm: 0.1μm, 100~1000: 1μm, 1000~1800μm: 0.01μm
Low Range Precision: 0.1μm
Operating Environment: 0~40℃(32~104℉), 20%~90%RH
Power Supply: 2 * 1.5V AAA battery (NOT included)
Item Size: 113.5 * 54 * 27mm / 4.47 * 2.13 * 1.06in
Item Weight: 185g / 6.52oz
Package Weight: 816g / 28.80oz
Package Size: 27.5 * 19 * 7.5cm / 10.83 * 7.48 * 2.95in
Packing List:
1 * Thickness Gauge
1 * USB Cable
1 * CD
1 * Calibration Iron
1 * Calibration Aluminum
5 * Calibration Coating Film
1 * Carrying Case
