This 16FE + 2GE POE Switch

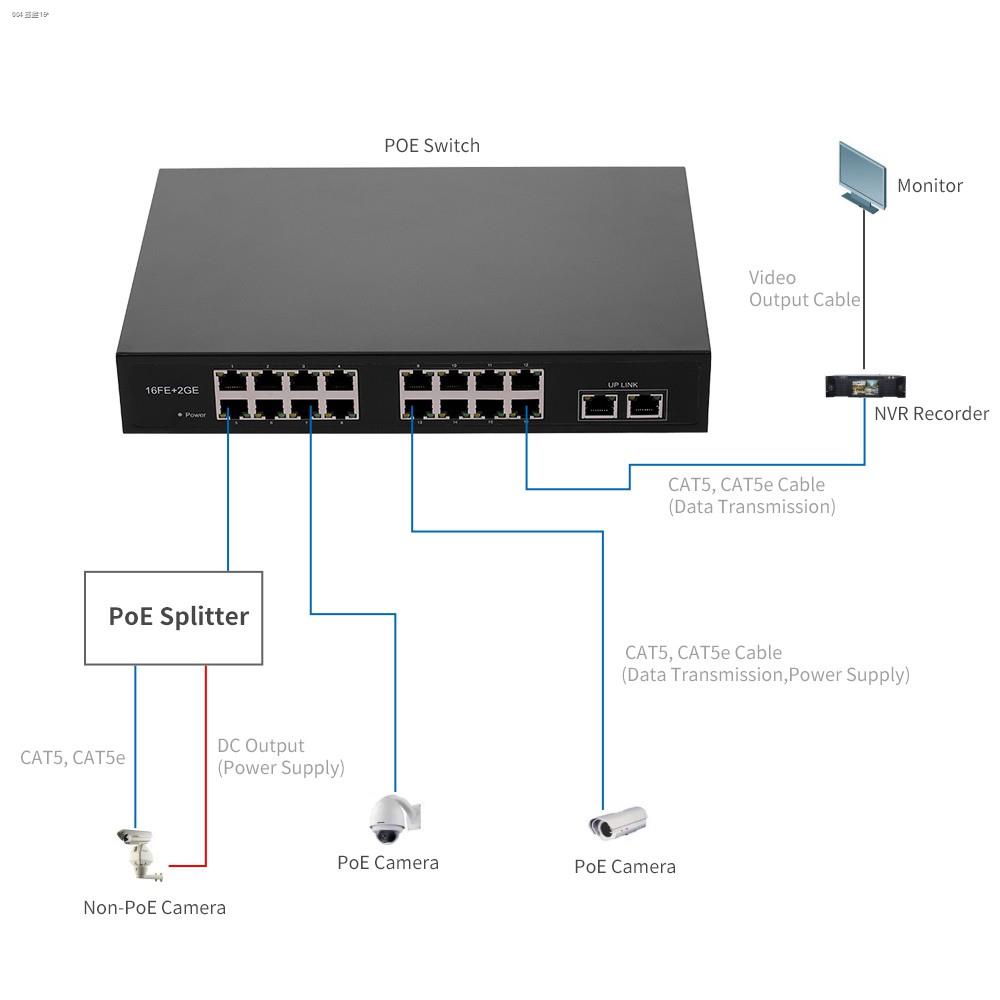

Features 16 10/100Mbps or 10/100/1000Mbps Ethernet Ports and 2 10/100Mbps or 10/100/1000Mbps Uplink Ethernet Ports and adopts high backplane bandwidth design, and has extremely fast data processing capability to improve smooth data transmission. It provides an easier installation way for PoE devices, such as IP cameras, wireless AP, network telephone transmission, intelligent house and home system, ITS, high-speed way supervisory, security protection system, TV medical treatment, long-distance broadcast television transmission system, etc.

Features:
Complies with the IEEE802.3af standard and automatically detects and identifies PD devices that comply with the IEEE 802.3af standard.
16 10/100Mbps or 10/100/1000Mbps Ethernet Ports and 2 10/100Mbps or 10/100/1000Mbps Uplink Ethernet Ports allows to connect with different devices, one button to achieve intelligent run.
The max transmission distance is 150 meters with 7.2Gbps.
Plug and play for very simple installation, no configuration required.
Supports MDI/MDIX auto-flip and auto-negotiation on each port.
Supports IEEE 802.3X full duplex flow control and Backpressure half duplex flow control.

Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall.
Strong compatibility, no burning equipment, high-speed transmission, no data loss, flexible expansion.
Specification:
Item: 16FE + 2GE POE Switch
Model: ZWD-16+2BZQN
POE Port: 1-4 Port Support IEEE 802.3af (15.4W) Network Power Supply
PoE Switch Output Power: 15.4W/IEEE802.3af
PoE Switch Wire Core: 1/2+, 3/6-
Port Description: 16 Ethernet Port, 2 Uplink Ethernet Port
PoE Switch Connection Standard: IEEE802.3af
PoE Switch Transmission Distance: ≤150m / 492.1ft
PoE Switch Type: End Bridging Method
Network Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af
Network Medium: 5 Category and above unshielded twisted pair
Network Signal Distance: Transfer ≤150m /492.1ft
Gbps: 7.2Gbps
Forwarding Way: Storage Forwarding
Forwarding Rate: 10Base-T:14880PPS/port, 100Base-TX:148800PPS/port, 1000Base-TX:1488000PPS/port
For MAC Address: 1KMAC
Port Function: Power supply priority mechanism, fast and forwarding, For MAC automatic learning and aging, IEEE 802.3X full duplex flow control and Backpressure half duplex flow control
Indicator: Each port has one Link/Act and PoE Switch indicator and each equipment has one Power indicator
Operating Temperature: -20℃～50℃
Storage Temperature: —40℃～70℃
Work Humidity: 10%-90%RH（no condensation）
Storage Humidity: 5%-90%RH（no condensation）
Power Supply: Power Adapter（AC100-240V input, 200W output）
Overall Power Consumption: ≤ 20W
Size: 27 * 18 * 4.4cm / 10.6 * 7.1 * 1.7inches
Weight: 1411g / 49.8oz
Package Size: 29 * 23.5 * 5.7cm / 11.4 * 9.3 * 2.2inches
Package Weight: 1676g / 59.1oz
Package Include:
1 * POE Switch
1 * Manual
1 * Power Adapter
1 * Bag of Accessory
