SPECIFICATIONS
DOWNLOAD SPECS SHEET$
Product Name HAF 700 EVO
Product Number H700E-IGNN-S00
Exterior Color Titanium Grey
Materials Exterior Mesh, Steel, Plastic
Left Side Panel Tempered Glass, STeel
Dimensions (L x W x H) Body size 556 x 279 x 540mm
incl. Protrusions 666 x 2941 x 626mm
Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, SSI-EEB
Expansion Slots 8
Drive Bays 5.25“ ODD N/A
3.5” / 2.5” Combo 12
2.5” SSD 12
I/O Panel USB Ports 1x USB 3.2 Gen2 Type-C
4x USB 3.2 Gen1 (3.0)
Audio In / Out 1x 3.5mm 4poles Audio Jack
1x 3.5mm Mic Jack
Other 1x LED Controller A1 (ARGB Gen2)
1x ARGB/PWM Hub
Pre-installed Fan(s) Front 2x SickleFlow PWM Performance Ed. 200mm
Rear 2x SickleFlow PWM ARGB 120mm
Bottom 1x SickleFlow PWM ARGB 120mm
Fan Support Top 2x 200mm, 3x 140mm, 6x 120mm
(Remove 480mm bracket)
Front 2x 200mm, 3x 120/140mm
Rear 2x 120mm
Bottom 3x 120/140mm
Side mount 4x 120mm, 3x 140mm

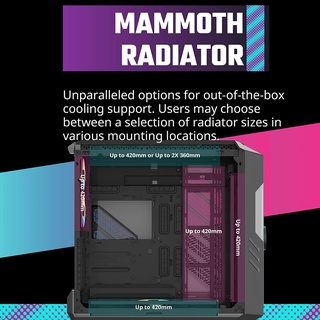

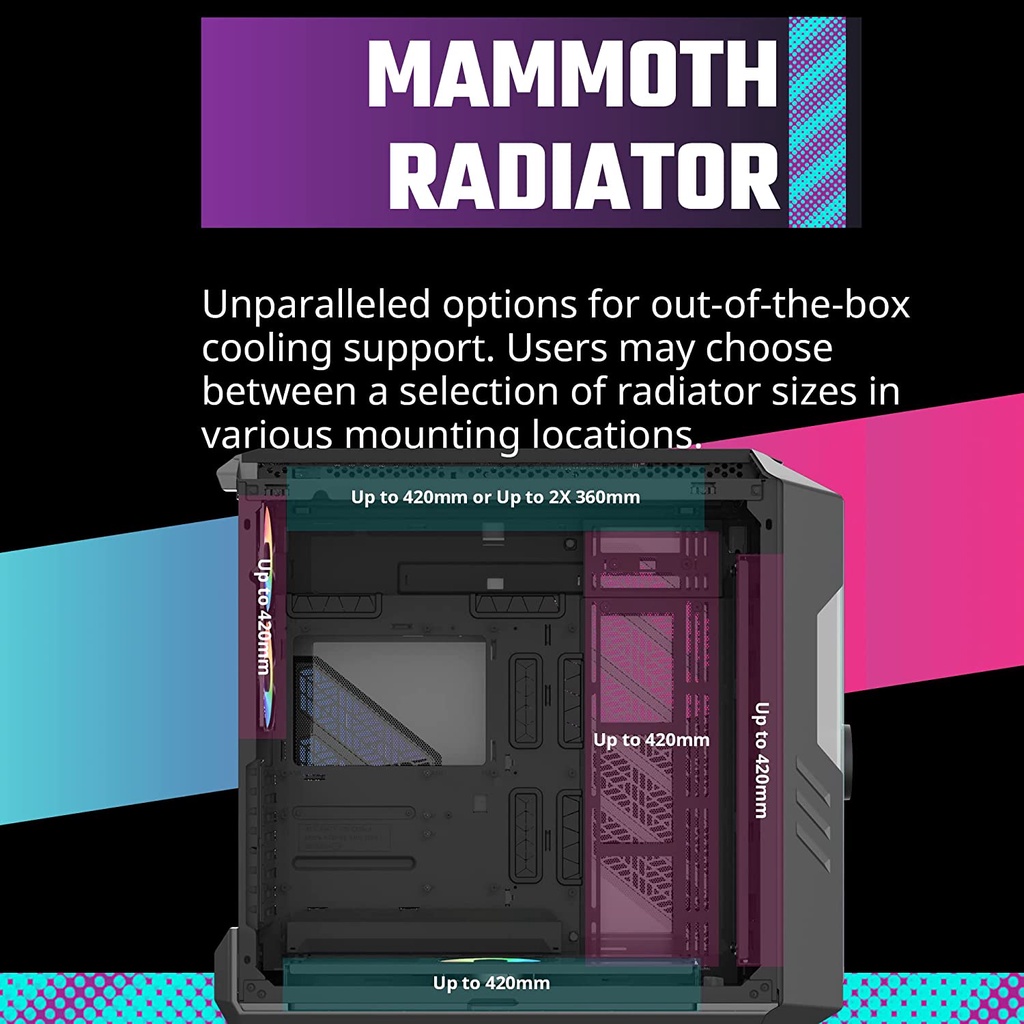

Radiator Support Top Up to 2x 360mm / 1x 420mm
Front Up to 420/360mm
Rear Up to 240mm
Bottom Up to 420/360mm
Side mount Up to 480/420mm
Clearances CPU Cooler 166mm / 6.53inch
Power Supply 200mm / 7.87inch
Graphics Card 490mm / 19.29inch
Cable Routing Behind MB Tray 90-101mm
Additional Included Accessories Universal Graphics Card Holder Kit V2
Dust Filters Front, Top, Bottom, Side
Power Supply Support Bottom mount, ATX
Warranty 2 Years
