Description:

The module is compact (size: 50*25*14mm) for easy carrying. It comes with screw holes for simple installation.

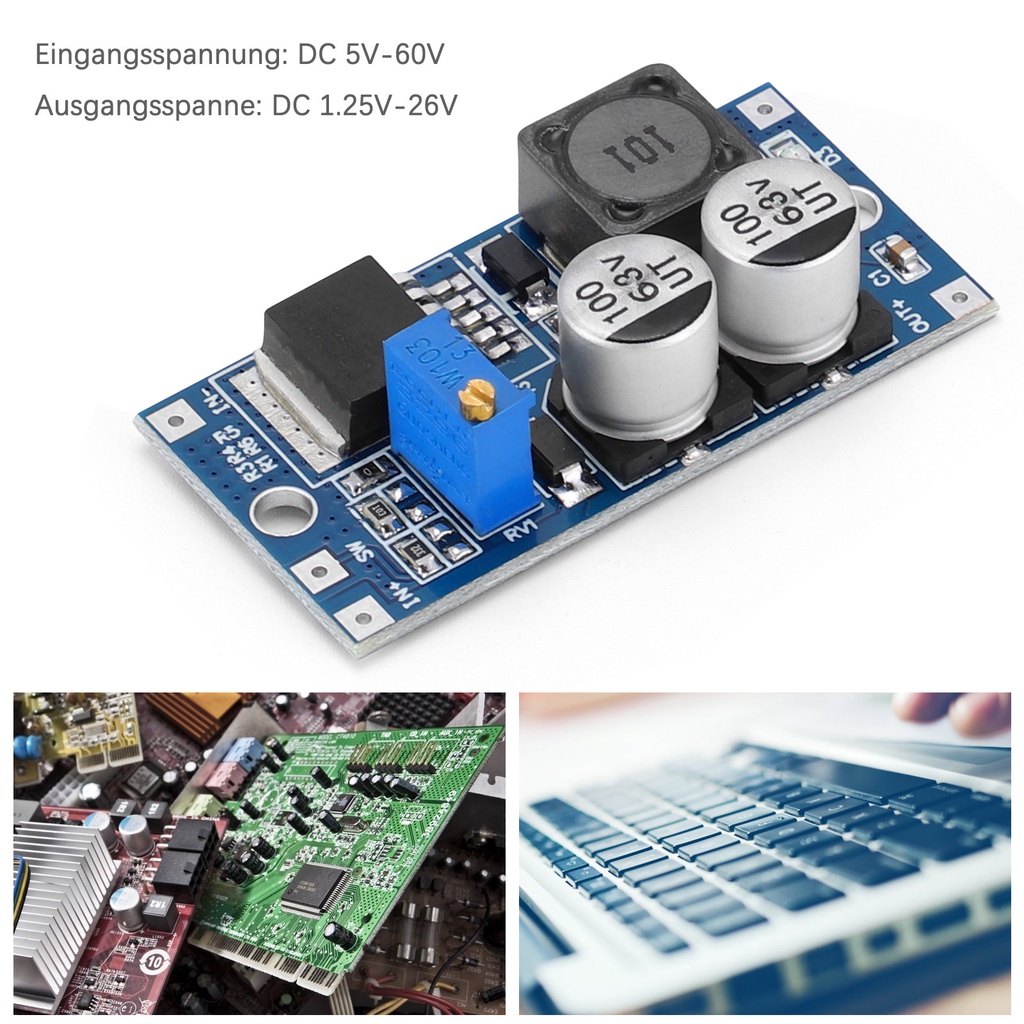

Input voltage range: 5V-60V (Maximum within 55V continuously). Output voltage range: 1.25V-26V( Continuous adjustable).

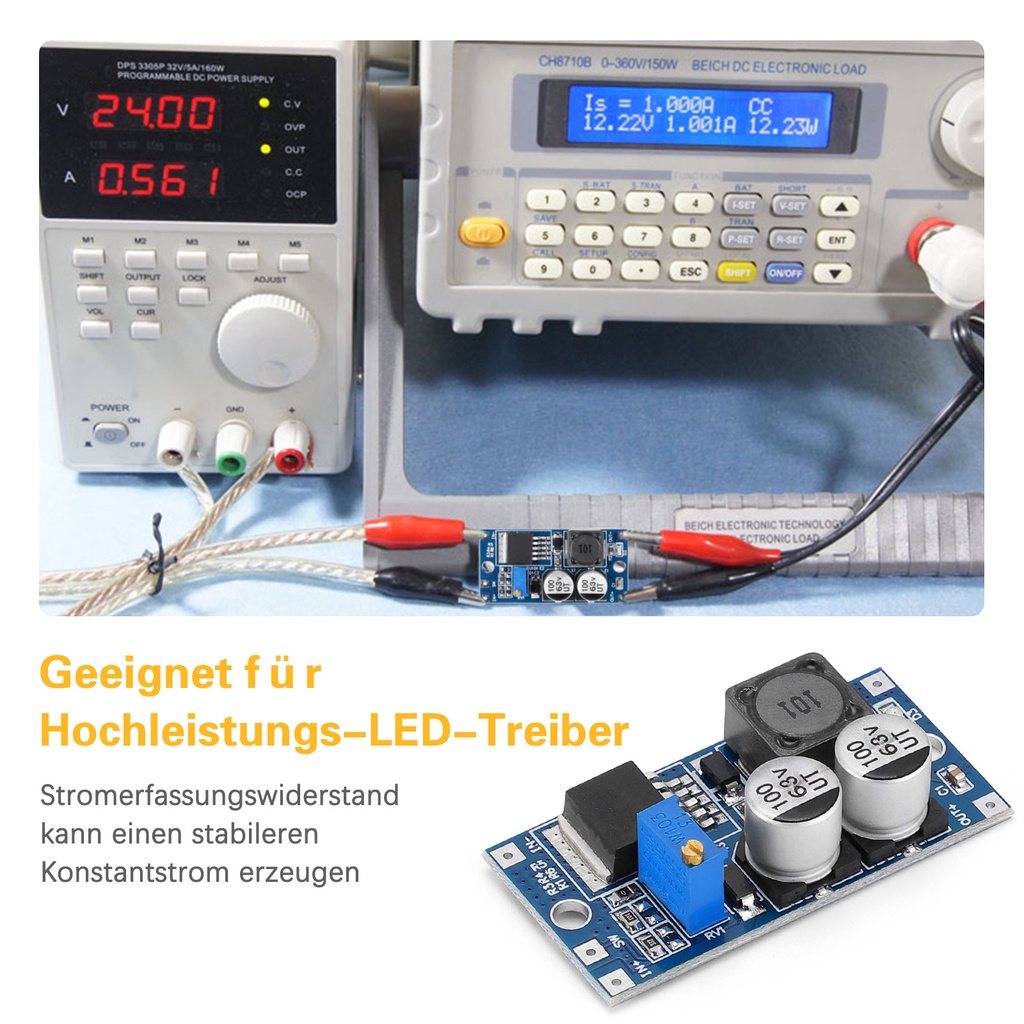

Suitable for high power LED drive, lithium or lead-acid battery, low voltage system power supply, and regulated power supply.

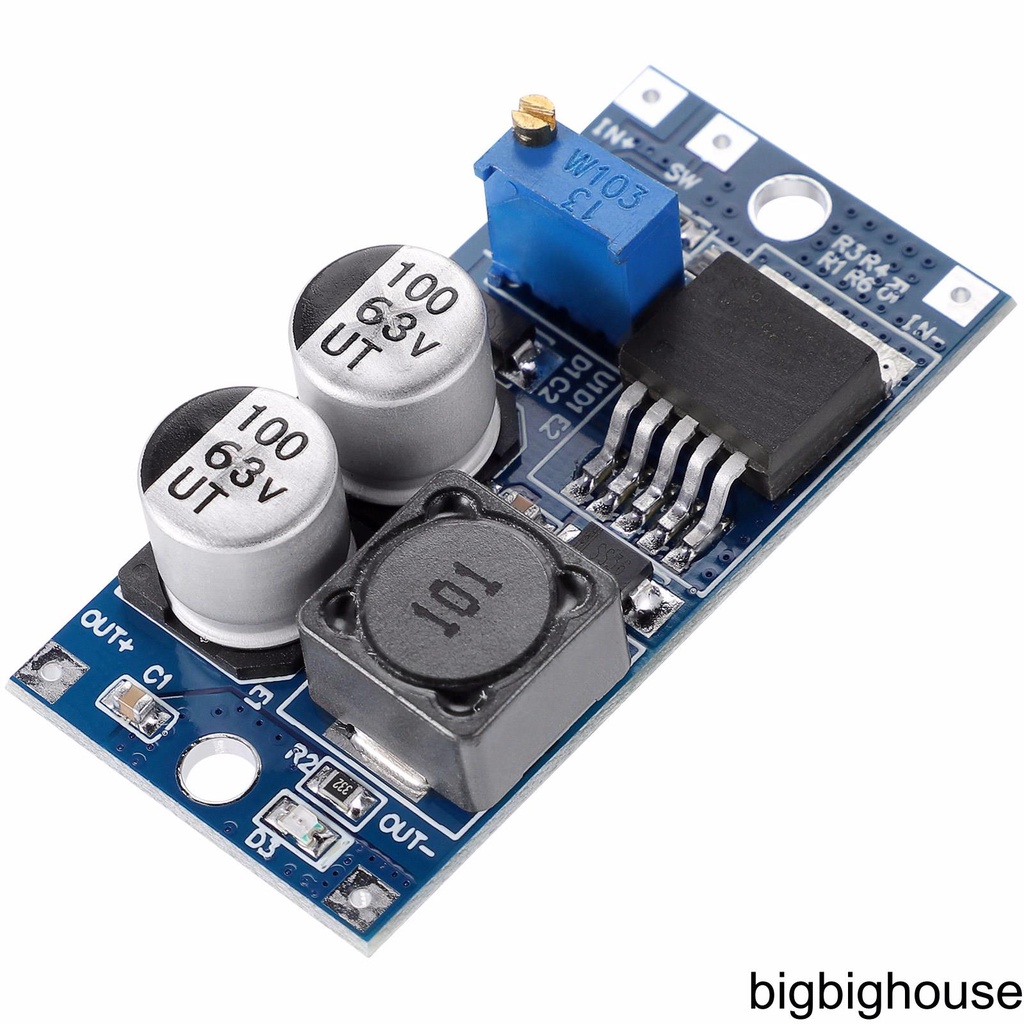

LM2596HV module come with reverse voltage protection, over-temperature and short-circuit protection, thus making it much safer to use.

48V to 3V/5V/12V voltage regulator uses a dedicated benchmark IC, and high-precision current sensing resistor, can make more stable constant current.

Specifications:

Material: metal.

Color: show as pictures.

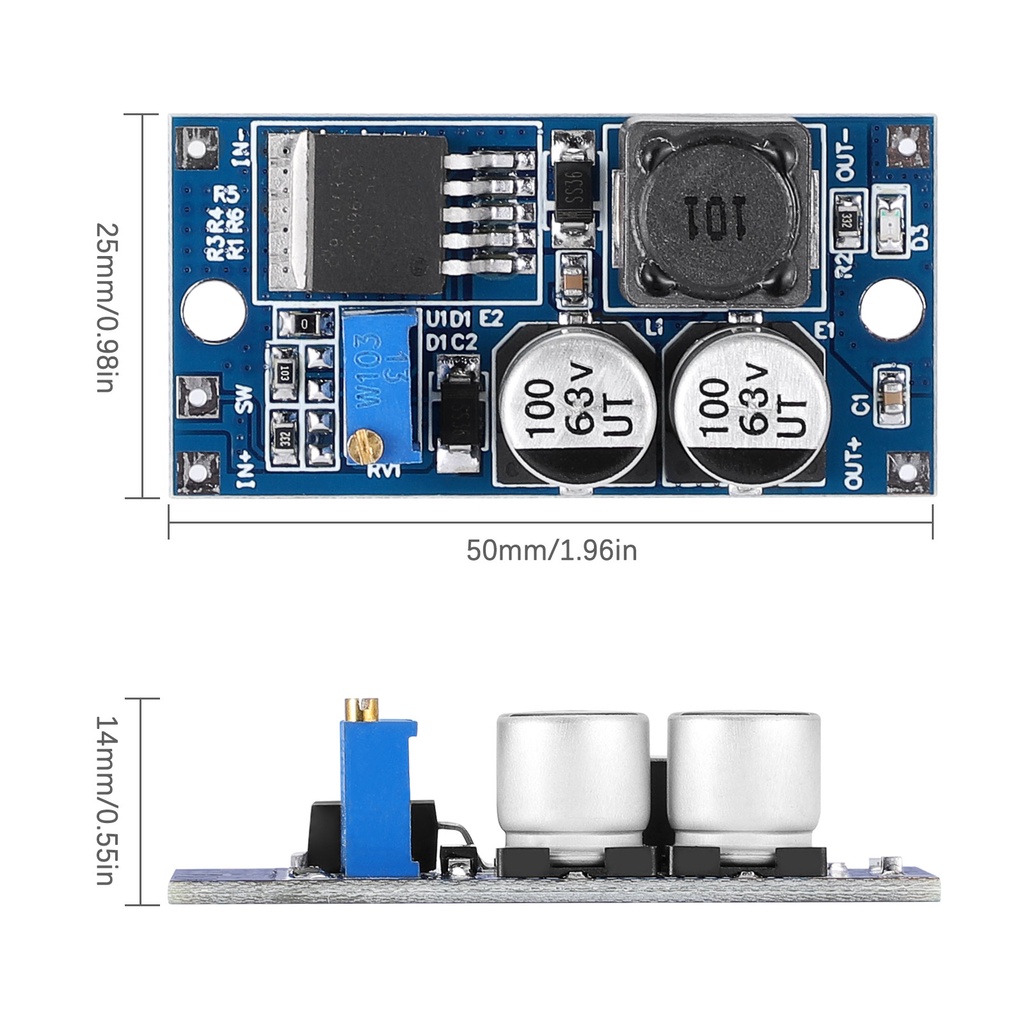

Size: 50*25*14mm.

Input voltage range: 5V-60V (Maximum within 55V continuously).

Output voltage range: 1.25V-26V( Continuous adjustable).

Maximum output current: 3A.

Continuously working current: 1.5A( Output total power within 20W).

Notes:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures.

Please allow slight dimension difference due to different manual measurement.

Package include:

1 * Step-down Module.
