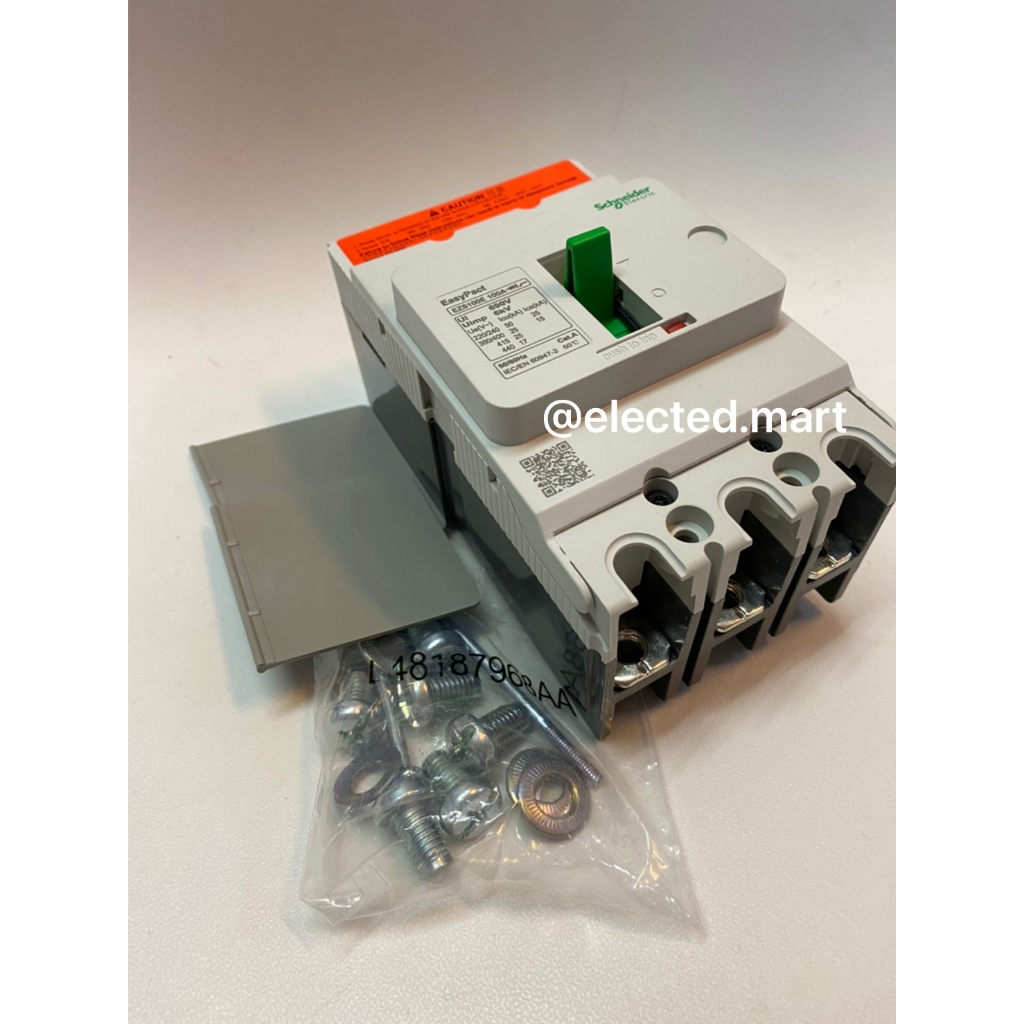

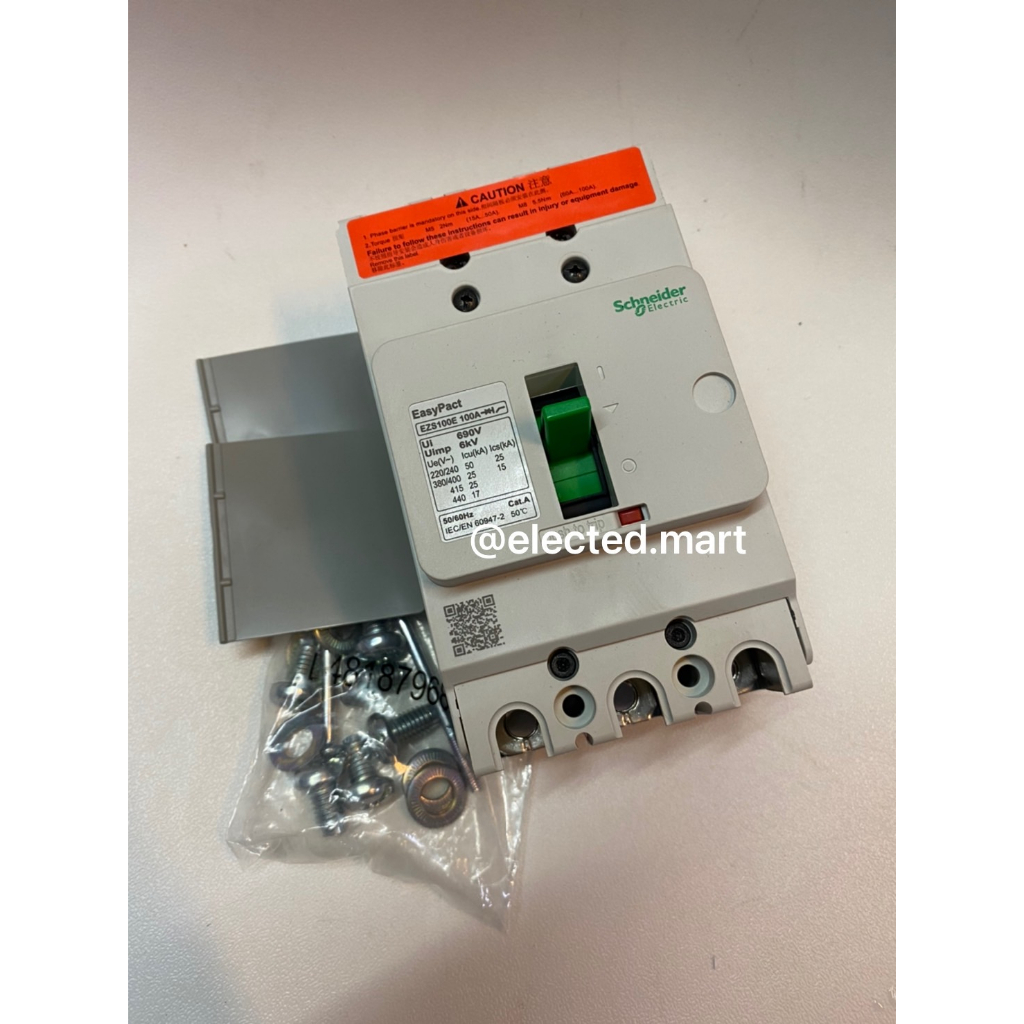

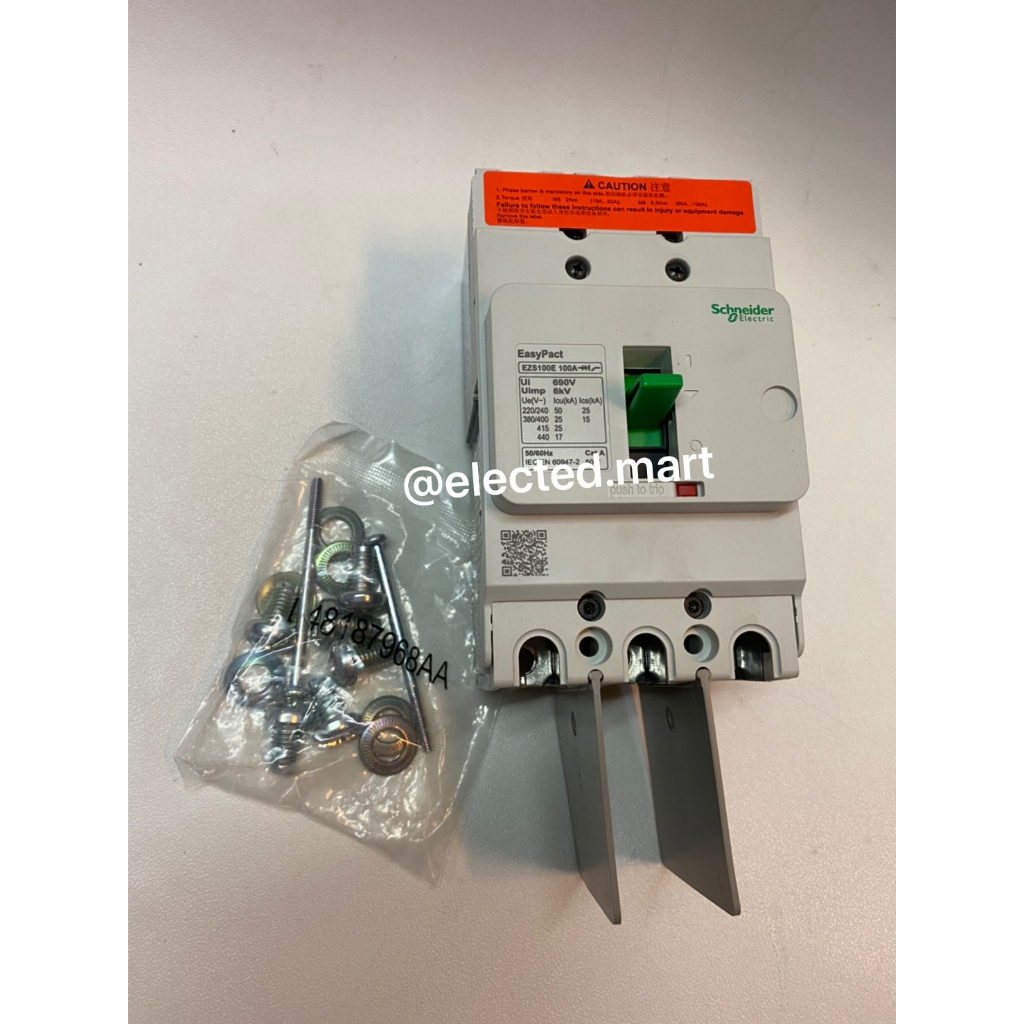

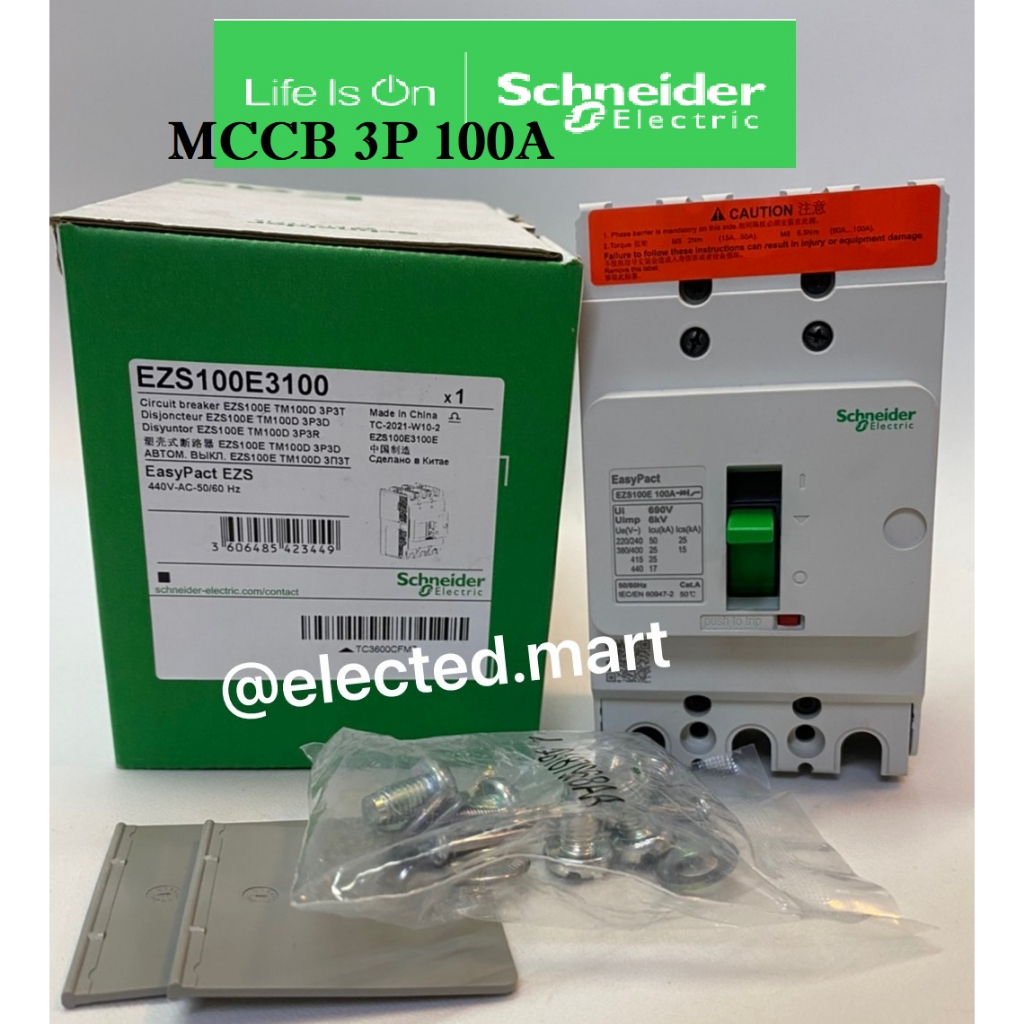

Range of product

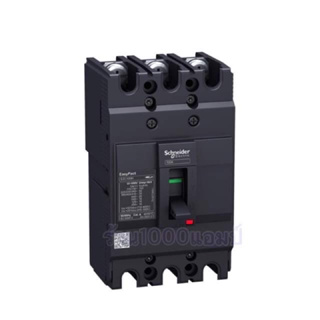

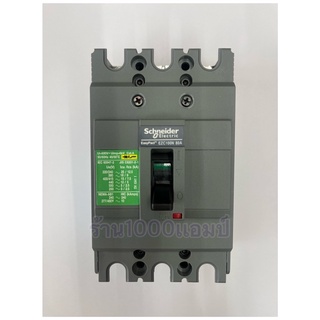

EasyPact EZS
Product or component type

Circuit breaker

Device short name

EZS100E

Circuit breaker application

Distribution

Poles description

3P

Protected poles description

3D

Breaking capacity code

E

Control type

Toggle

Network type

AC

Network frequency

50/60 Hz

upside connection

Front

Downside connection

Front

[In] rated current

100 A at 40 °C

[Ui] rated insulation voltage

690 V conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

[Ue] rated operational voltage

440 V AC 50/60 Hz conforming to EN/IEC 60947-2

400 V AC 50/60 Hz conforming to GB 14048.2

Neutral position

Left

Mounting mode

Fixed

Mounting support

Backplate

Connection pitch

25 mm

Breaking capacity

50 kA Icu at 220/240 V AC 50/60 Hz conforming to EN/IEC 60947-2

25 kA Icu at 380/400 V AC 50/60 Hz conforming to EN/IEC 60947-2

25 kA Icu at 415 V AC 50/60 Hz conforming to EN/IEC 60947-2

17 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2

40 kA Icu at 200/230 V AC 50/60 Hz conforming to GB 14048.2

25 kA Icu at 380/400 V AC 50/60 Hz conforming to GB 14048.2

[Ics] rated service breaking capacity

25 kA at 220/230 V AC 50/60 Hz conforming to GB 14048.2

13 kA at 380/400 V AC 50/60 Hz conforming to GB 14048.2

25 kA at 220/240 V AC 50/60 Hz conforming to EN/IEC 60947-2

15 kA at 380/400 V AC 50/60 Hz conforming to EN/IEC 60947-2

Suitability for isolation

Yes

Utilisation category

Category A

Mechanical durability

13000 cycles conforming to EN/IEC 60947-2

20000 cycles conforming to GB 14048.2

Electrical durability

4000 cycles 415 V In/2 conforming to EN/IEC 60947-2

8000 cycles 400 V In conforming to GB 14048.2

Protection type

Short-circuit protection (magnetic)

Overload protection (thermal)

Trip unit name

TM-D

Trip unit technology

Thermal-magnetic

Trip unit rating

100 A at 40 °C

Long time pick-up adjustment type Ir

Fixed

long time pick-up adjustment range

1 In

long time delay adjustment type

Fixed

Instantaneous pick-up adjustment type Ii

Fixed

Integral instant protection

1000 kA

Standards

IEC 60947-2

EN 60947-2

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Pollution degree

3 conforming to IEC 60947-1

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-50…85 °C

Height

130 mm

Width

75 mm

Depth

60 mm

Net weight

0.78 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

13.0 cm

Package 1 Width

7.5 cm

Package 1 Length

6.0 cm

Package 1 Weight

780.0 g
