315/433MHz Remote Control 4 Keys Copy Cloning Fixed Learning Code for Garage Door Gate Remote Controller Duplicator Key
Feature:
Using high-performance radio frequency chip, crystal oscillator frequency stabilization, accurate frequency point;
Long transmission distance, no directionality, high transmission sensitivity, no signal blocking;
It can copy most of the fixed code and learning code wireless remote control, the copy speed is fast, and the operation is simple;
After copying, it will not affect the original remote control;
Copy code automatically, use directly, no coding required;
Copyable chip models: For 1.PT2242, 2.PT2260, 3.PT2262, 4.EV1527, 5.527, 6.PT2240, 7.SMC 918, 8.HT-12E, 9.AX 5326-3, 10.AX 5326- 4. 11.AX 5026, 12.HT600, 13.HT680, 14.HT6207, 15.HT6010, 16.HT6012, 17.HT 6014, 18.MC 145026, 19.HT 640, 20.SMC 926, 21.HT12D Wireless remote control such as fixed code and learning code

Specification:
Model: AK-079A-KB
Item: Four Button Copy Remote Control

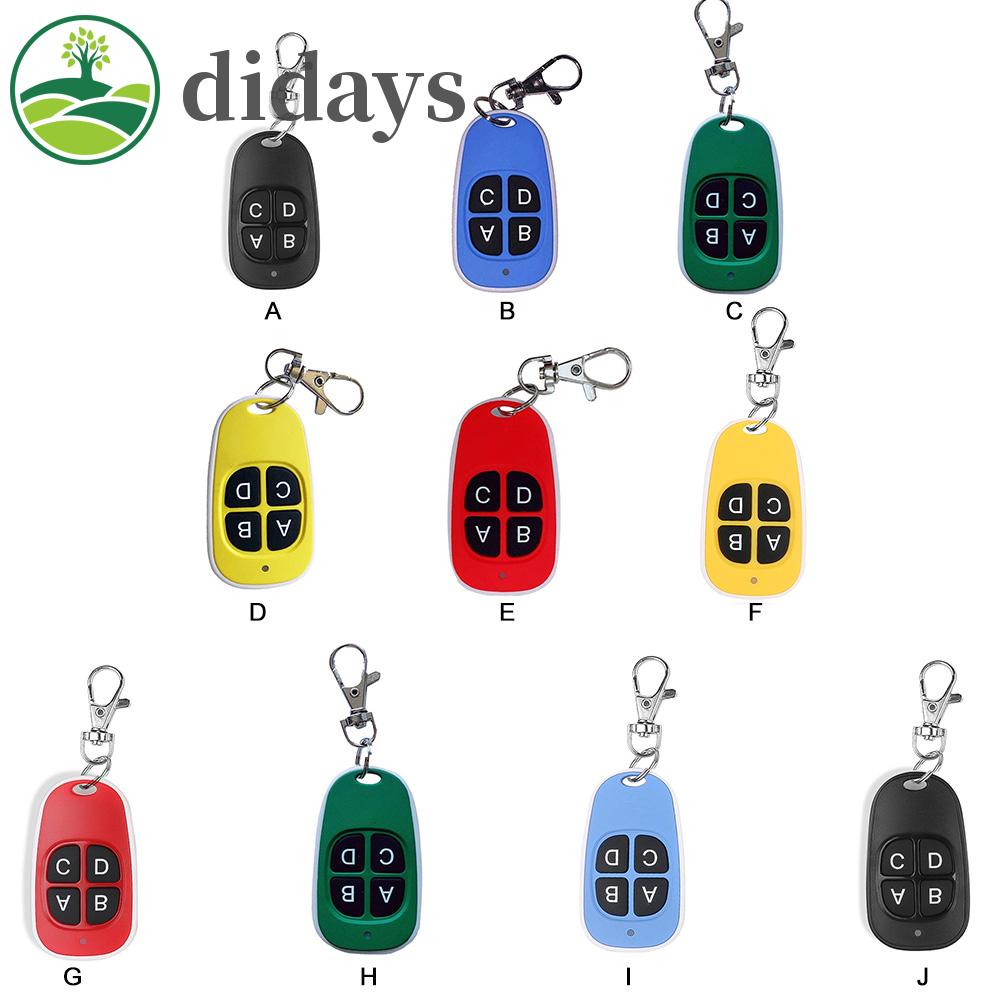

Color: Red, Yellow, Green, Blue, Black (optional)
Working voltage: 6V
Encoding type: copy
Working frequency: 433M/315M (optional)
Modulation method: ASK
Number of keys: Four keys (five colors are available)
Launch distance: 50m (in open environment)
Range of use: duplication and regeneration of wireless remote controls such as barriers, garage doors, cars/motorcycles, etc.
Size: 56*32*11mm/2.2*1.26*0.43
Weight: 25g

Operation Method:
1. Code pairing (learning):
Place the original remote control and the copy it as close as possible, first press a button of the original remote control, and immediately after the indicator light turns on, press and hold a button of the self-copy remote control for about 3s, the LED will flash 3 times and then quickly flashing, it means that the address code of the original remote control button has been learned successfully.
The other keys are operated in the same way for learning.
2. Clear code:
Press the unlock button and the lock button at the same time for 2s, the LED light starts to flash 3 times. At this time, keep the lock button pressed and release the unlock button.
Press the unlock button three or four times within 5s, and the indicator light flashes quickly. The code has been cleared.
Test whether the existing code of the remote control has been successfully cleared: When you finish the clearing action, you can press any button of the copy remote control. If the LED does not flash immediately at this time, it will flash after 2s, that means Copy the original code of the remote control has been completely cleared, if the LED still flashes quickly, it means that the code still exists and needs to be cleared again.
3. Restore the cleared code
The copy remote control has a recovery function. If you accily clear the address code of the normal copy remote control during use, you can press the start and mute buttons (the next two buttons) on the remote control at the same time.
After about 3s, the LED will flash 3 times. Start to flash quickly, which means that the cleared address code is successfully restored.

Precautions:
1. Before using our copy remote control to copy, first clear the existing code of the self-copy remote control.
2. The self-copy remote control cannot copy the rolling code, such as HCS301.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

Included:

1 x Remote Control
