เอ็กแปนซ์ชั่นวาวล์ อีเมอร์สัน ใช้กับน้ำยา R22/R407c

THERMAL EXPANSION VALVE "EMERSON"

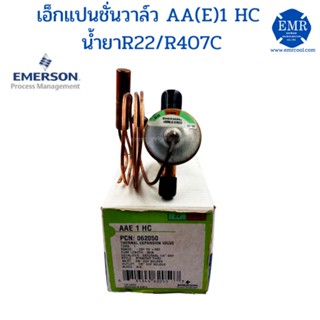

MODEL: AA(E) 1 HC PCN: 062050 TONS: 1
RANGE: -20F TO +50F TUBE LENGTH: 30IN EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 3/8" ODF SOLDER OUTLET: 1/2" ODF SOLDER
BLEED: N/A

MODEL: AA(E) 2 HC PCN: 058825 TONS: 2
RANGE: -20F TO +50F TUBE LENGTH: 5FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 3/8" ODF SOLDER OUTLET: 1/2" ODF SOLDER
BLEED: N/A

MODEL: AA(E) 3 HC PCN: 064700 TONS: 3
RANGE: -20F TO +50F TUBE LENGTH: 5FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 1/2" ODF SOLDER OUTLET: 5/8" ODF SOLDER
BLEED:

MODEL: AA(E) 5 HC PCN: 065334 TONS: 5
RANGE: -20F TO +50F TUBE LENGTH: 5FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 1/2" ODF SOLDER OUTLET: 5/8" ODF SOLDER
BLEED:

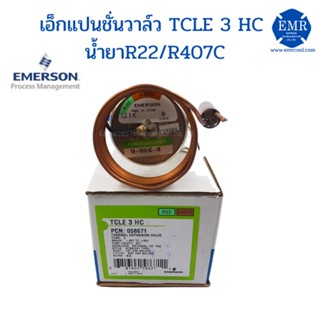

MODEL: TCLE 3 HC PCN: 058671 TONS: 3
RANGE: -20F TO +50F TUBE LENGTH: 5FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 1/2" ODF SOLDER OUTLET: 5/8" ODF SOLDER
BLEED: N/A

MODEL: TCLE 5 HC PCN: 058287 TONS: 5
RANGE: -20F TO +50F TUBE LENGTH: 5FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 1/2" ODF SOLDER OUTLET: 5/8" ODF SOLDER
BLEED: N/A

MODEL: TCLE 7-1/2 HC PCN: 054402 TONS: 7-1/2
RANGE: -20F TO +50F TUBE LENGTH: 5FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 5/8" ODF SOLDER OUTLET: 7/8" ODF SOLDER
BLEED: N/A

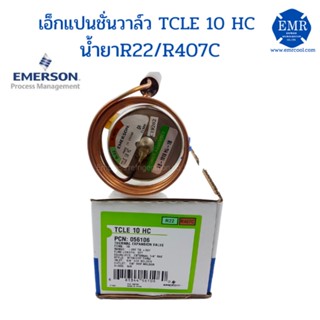

MODEL: TCLE 10 HC PCN: 056106 TONS: 10
RANGE: -20F TO +50F TUBE LENGTH: 5FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 5/8" ODF SOLDER OUTLET: 7/8" ODF SOLDER
BLEED: N/A

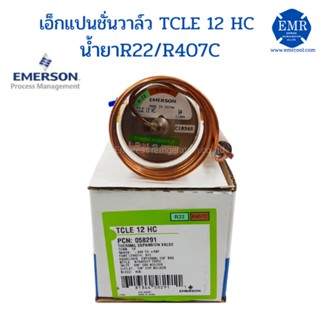

MODEL: TCLE 12 HC PCN: 058291 TONS: 12
RANGE: -20F TO +50F TUBE LENGTH: 5FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 5/8" ODF SOLDER OUTLET: 7/8" ODF SOLDER
BLEED: N/A

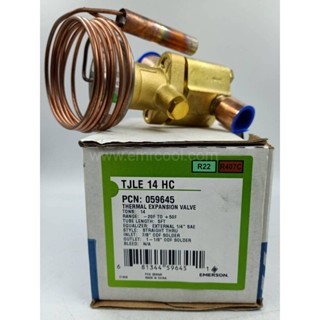

MODEL: TJLE 14 HC PCN: 059645 TONS: 14
RANGE: -20F TO +50F TUBE LENGTH: 5FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 7/8" ODF SOLDER OUTLET: 1-1/8" ODF SOLDER
BLEED: N/A

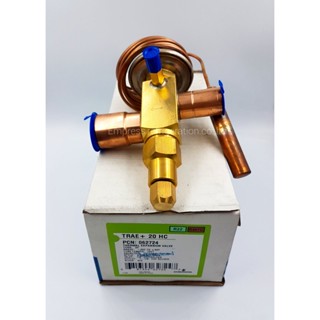

MODEL: TRAE+ 20 HC PCN: 062724 TONS: 20
RANGE: -20F TO +50F TUBE LENGTH: 10FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 7/8" ODF SOLDER OUTLET: 1-1/8" ODF SOLDER
BLEED: N/A

MODEL: TER 22 HC PCN: 059638 TONS: 22
RANGE: -20F TO +50F TUBE LENGTH: 10FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 7/8" ODF SOLDER OUTLET: 1-1/8" ODF SOLDER
BLEED: N/A

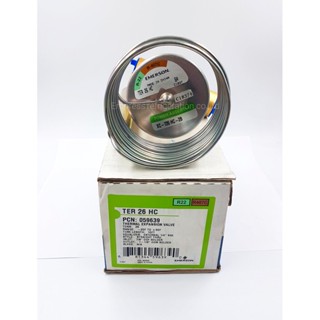

MODEL: TER 26 HC PCN: 059636 TONS: 26
RANGE: -20F TO +50F TUBE LENGTH: 10FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 7/8" ODF SOLDER OUTLET: 1-1/8" ODF SOLDER
BLEED: N/A

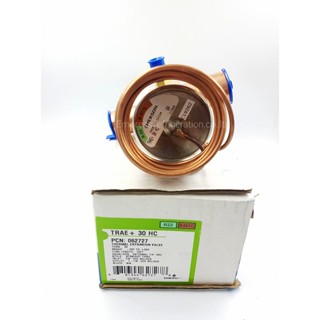

MODEL: TRAE+ 30 HC PCN: 062727 TONS: 30
RANGE: -20F TO +50F TUBE LENGTH: 10FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 7/8" ODF SOLDER OUTLET: 1-1/8" ODF SOLDER
BLEED: N/A

MODEL: TER 35 HC PCN: 061193 TONS: 35
RANGE: -20F TO +50F TUBE LENGTH: 10FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 7/8" ODF SOLDER OUTLET: 1-1/8" ODF SOLDER
BLEED: N/A

MODEL: TRAE+ 40 HC PCN: 063424 TONS: 40
RANGE: -20F TO +50F TUBE LENGTH: 10FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 7/8" ODF SOLDER OUTLET: 1-1/8" ODF SOLDER
BLEED: N/A

MODEL: TER 45 HC PCN: 059641 TONS: 45
RANGE: -20F TO +50F TUBE LENGTH: 10FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 7/8" ODF SOLDER OUTLET: 1-1/8" ODF SOLDER
BLEED: N/A

MODEL: TER 50 HC PCN: 051700 TONS: 50
RANGE: -20F TO +50F TUBE LENGTH: 10FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 1-1/8" ODF SOLDER OUTLET: 1-3/8" ODF SOLDER
BLEED: N/A

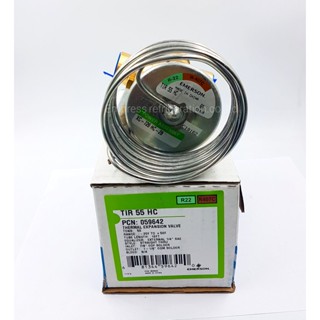

MODEL: TIR 55 HC PCN: 059642 TONS: 55
RANGE: -20F TO +50F TUBE LENGTH: 10FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 7/8" ODF SOLDER OUTLET: 1-1/8" ODF SOLDER
BLEED: N/A

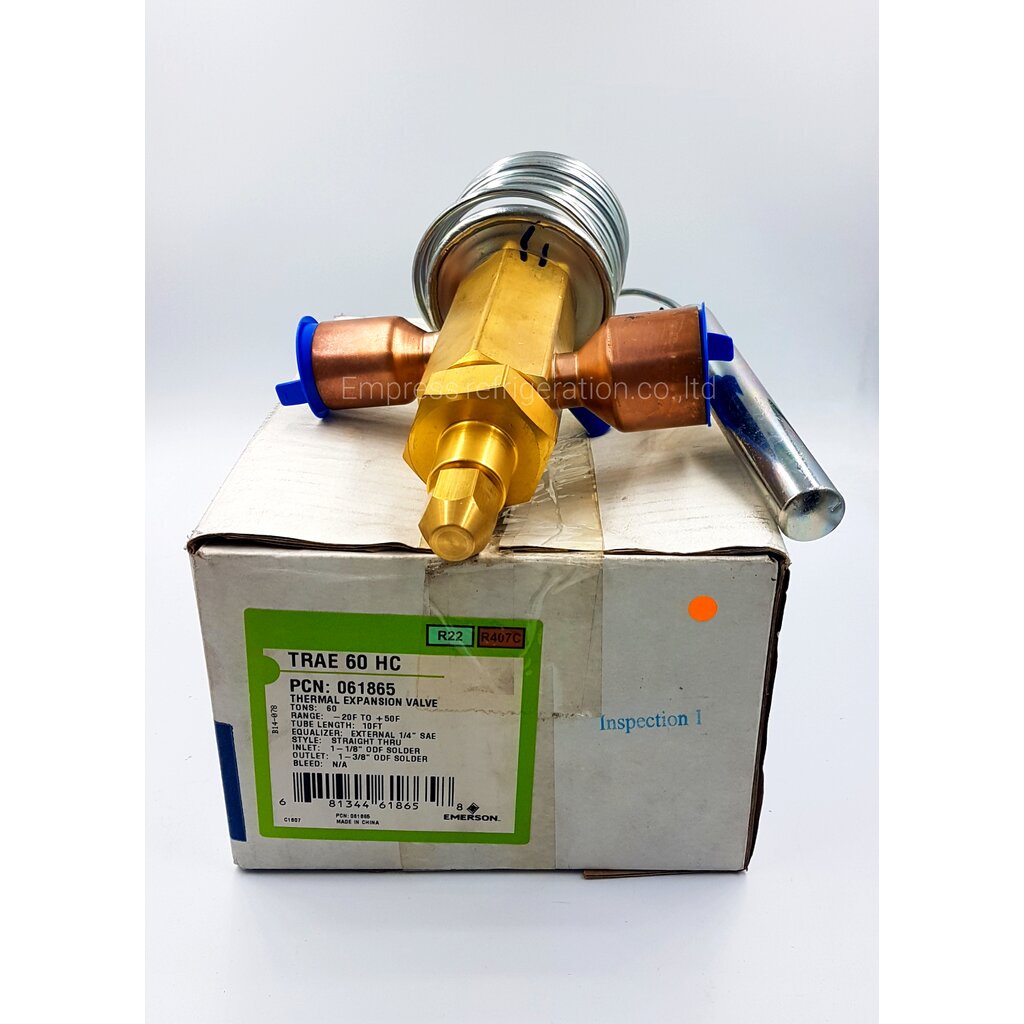

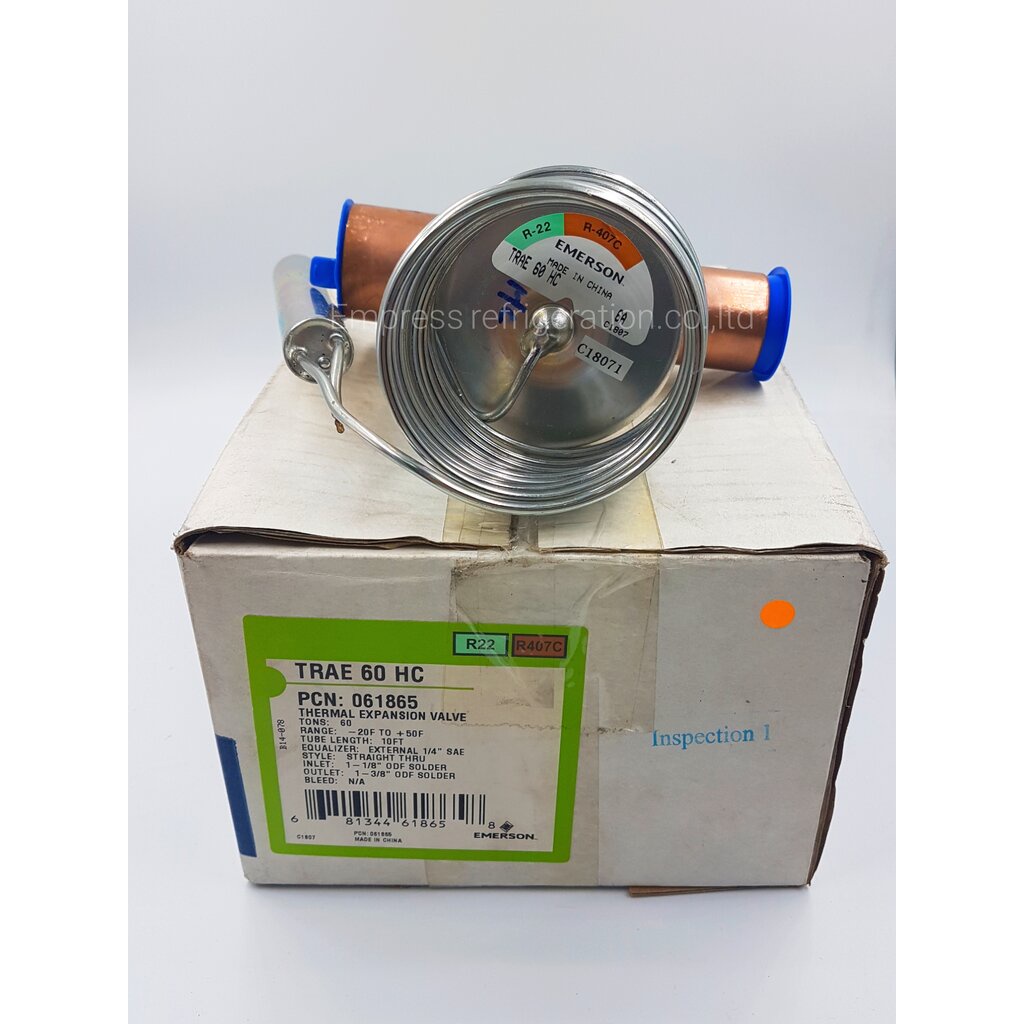

MODEL: TRAE 60 HC PCN: 061865 TONS: 60
RANGE: -20F TO +50F TUBE LENGTH: 10FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 1-1/8" ODF SOLDER OUTLET: 1-3/8" ODF SOLDER
BLEED: N/A

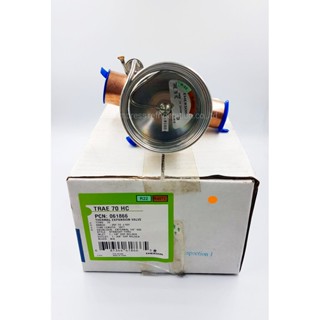

MODEL: TRAE 70 HC PCN: 061866 TONS: 70
RANGE: -20F TO +50F TUBE LENGTH: 10FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 1-1/8" ODF SOLDER OUTLET: 1-3/8" ODF SOLDER
BLEED: N/A

MODEL: THR 75 HC PCN: 059643 TONS: 75
RANGE: -20F TO +50F TUBE LENGTH: 10FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 1-1/8" ODF SOLDER OUTLET: 1-1/8" ODF SOLDER
BLEED: N/A

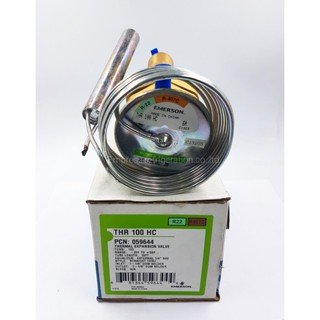

MODEL: THR 100 HC PCN: 059644 TONS: 100
RANGE: -20F TO +50F TUBE LENGTH: 10FT EQUALIZER: EXTERNAL 1/4" ODF
STYLE: STRAIGHT THRU INLET: 1-1/8" ODF SOLDER OUTLET: 1-1/8" ODF SOLDER
BLEED: N/A
