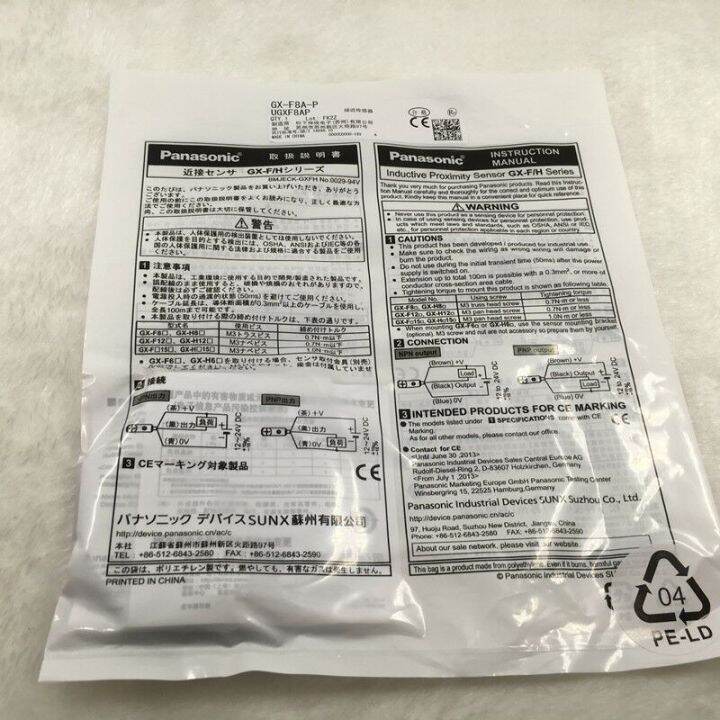

PANASONIC GX-F8A inductive proximity sensor, rectangular shape, 2,5mm, NO, NPN, cable 1m
ข้อมูลสินค้า
ราคา
2,600.00 1,650.00 บาท
แบรนด์
Panasonic
ร้านค้า
- Product NumberGX-F8APart NumberGX-F8AProductRectangular-shaped Inductive Proximity SensorDetailsNPN outputProduct nameRectangular-shaped Inductive Proximity Sensor GX-F/H ItemSpecificationsProduct NumberGX-F8APart NumberGX-F8ACE marking directive complianceEMC Directive, RoHS DirectiveMax. operation distance2.5 mm 0.098 in plus or minus 8 %(Note) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object.Stable sensing range0 to 2.1 mm 0 to 0.083 in(Note) The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation.Standard sensing objectIron sheet 15 × 15 × t 1 mm 0.591 × 0.591 × t 0.039 inHysteresis20 % or less of operation distance(with standard sensing object)RepeatabilityAlong sensing axis, perpendicular to sensing axis: 0.04 mm 0.002 in or lessSupply voltage12 to 24 V DC +10/-15 % Ripple P-P 10 % or lessCurrent consumption15 mA or lessOutputNPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 100 mA sink current)Output:Output operationNormally openOutput:Utilization categoryDC-12 or DC-13Max. response frequency500 HzOperation indicatorOrange LED(lights up when the output is ON)ProtectionIP68 (IEC), IP68g (JEM)(Note) Panasonic Electric Works SUNX's IP68 test method1. Immerse at 0 m below 0 ℃ +32 ℉ water surface and leave for 30 min. Then, immerse at 0 m below +70 ℃ +158 ℉ water surface and leave for 30 min.2. Regard the heat shock test in 1 as one cycle and perform 20 cycles.3. Leave in water at a depth of 1 m 3.281 ft in water for 500 hours.4. After tests 1 to 3, insulation resistance, voltage withstandability, current consumption, and sensing ranges must meet the standard values.(Note) If using the sensor in an environment where cutting oil droplets splatter, the sensor may be deteriorated due to added substances in the oil.Ambient temperature-25 to +70 ℃ -13 to +158 ℉ , Storage: - 40 to +85 ℃ - 40 to +185 ※Ambient humidity45 to 85 % RH, Storage: 35 to 95 % RHVoltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosureInsulation resistance50 MΩ , or more, with 500 V DC megger between all supply terminals connected together and enclosureVibration resistance10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (Max. 20 G) in X, Y and Z directions for two hours eachShock resistance10,000 m/s2 acceleration (1,000 G approx.) in X, Y and Z directions three times eachSensing range variation:Temperature characteristicsOver ambient temperature range -25 to +70 ℃ -13 to +158degrees Fahrenheit: Within plus or minus 8 % of sensing range at +23 ℃ +73 ℉Sensing range variation:Voltage characteristicsWithin plus or minus 2 % for +10/-15 % fluctuation of the supply voltageMaterialEnclosure: PBTIndicator part: PolyesterCable0.15 mm2 3-core oil, heat and cold resistant cabtyre cable, 1 m 3.281 ft longCable extensionExtension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.Net weight15 g approx.
