Ternary lithium battery L measurement: L03 string to L07 string (power-off memory)
Lead-acid battery P measurement: DC12V, DC24V (power-off memory)
Iron-lithium battery F measurement: F03 series to F08 series (power-off memory)
Custom setting high and low voltage range: DC8-30V. The front is the on/off button, the back is the setting button, please set the parameters before installing and using
Voltage detection range: DC8-30V. Working current: Less than 15mA (without charging function). Display mode: LCD screen. USB output: QC2.0, QC3.0, maximum output 18W (5V-3.4A, 9V-2A, 12V-1.5A). Typec output: QC2.0, QC3.0, maximum output 18W (5V-3.1A, 7V-2.4A, 9V-2A, 12V-1.5A)
Detection accuracy: ±1%
Refresh speed: 500ms/time
Installation size: 58.5mm x 36.5mm
Appearance size: 61mm x 40mm x 22mm
Mode description On the main page, press and hold the on/off button for 2 seconds to enter the mode setting page, and then press and hold the back setting button for 2 seconds to exit the setting page and return to the main page.
Mode 1 -- lead acid P setting;
Mode 2 -- Ternary Lithium L setting;
Mode 3 -- FeLiF setting;
Mode 4 -- custom high and low voltage settings;
Mode 5 -- low voltage alarm setting (alarm when the voltage is lower than this parameter);
Mode 6 -- backlight time setting;
Notice:
There are two kinds of lithium batteries (ternary lithium L and iron lithium F), let me tell you the difference; first, fully charge the battery first, the saturation voltage of a series of ternary lithium batteries is DC4.2V, and the saturation voltage of a series of iron lithium batteries is DC4.2V. It is DC3.6V; for example: the saturation voltage shows 29.4V (7 strings), this is the ternary lithium battery, and then select the parameters according to the setting mode of the ternary lithium battery.
Screen color:green/Blue/White
Colour:black
Material:plastic
Package Contents:

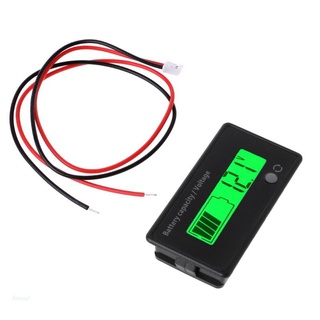

1 X Battery power detector
1 X line
Only the above package content, other products are not included.
