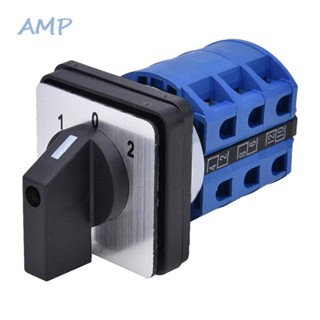

Product Name: Changeover Switch
Material: Plastic, Metal
Net Weight: 110g
Plastic external material, 3 positions , momentary action type, 8 screw terminals, fit for 1cm panel thickness.
Changeover switch mainly suitable for electrical wiring in the power switch and Squirrel cage type asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit.
Model: LW28-25
Main Color: Blue, Black
Ui: AC 660V
Ith: 25A
Ue: AC 440V/240V
Poles: 2 Poles
Positions: 3 Positions (ON-OFF-ON)
Panel Size: 50 x 50 x 10mm/2" x 2" x 0.4"(L*W*T)
Total Size: 50 x 50 x 80mm/2" x 2" x 3.1"(L*W*H)
Screw Hole Dia: 3mm/0.12"
Screw Hole Center Distance: 37 x 37mm/1.5" x 1.5"(L*W)
Screw Terminals: 8 Screw Terminals
Contact Type: Momentary
Package Content:
1 x Changeover Switch
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
