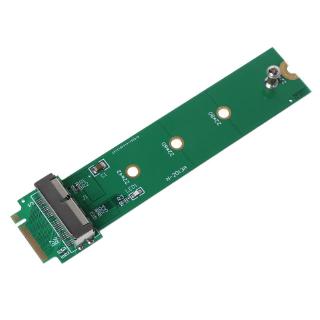

Adapter Card To 64G 128G 256G 512G M.2 Ngff Ssd For 2012 Macbook Air A1466 A1465
adapter-card-to-64g-128g-256g-512g-m-2-ngff-ssd-for-2012-macbook-air-a1466-a1465
ข้อมูลสินค้า
ราคา
297.00 99.00 บาท
แบรนด์
No Brand
ร้านค้า
  • Adapter Card To 64G 128G 256G 512G M.2 Ngff Ssd For 2012 Macbook Air A1466 A1465



The product only support 2012 version Apple MacBook Air model is A1465 A1466 (MD223 MD224 MD231 MD232).The speed and other properties is not changed,only form conversion interface.
Adapter card + M.2 NGFF SSD can replace original hard disk,also installed the MAC OS or Windows operating system.
PCB size(L*W):10.80*2.40cm/4.25*0.94 inch
Notice:The adapter card only support 22*42 mm,22*60 mm and 22*80 mm size of M.2 NGFF (SATA) SSD,it does not support PCIe X2 or PCIe X4 transfer mode of solid state drives.This product is not supported on both sides have electronic components solid-state drives.
Some of M.2 NGFF SSD is not compatible with apple laptop,Such as the use Sand-Force main control chip of solid-state drives, If it is installed on the Apple computer, The computer will be crashed,or cant install the operating system, or unable to format the hard disk failure, etc.Please open the trim function after Mac OS installed, it does not need to manually open if install Windows operating system.
Colour: Black
Material: PC
Quantity:1Pc
Package Contents: 1 * Converter(The SDD is not include)
About M.2 NGFF SSD interface standard:
Socket 2(B +M key):there are SATA(such as THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCIe X2(such as PX-AG128M6E/PX-AG128M6E/SD6PP4M models of SSD) two different transfer mode.
Socket 3(M key):PCIe X4(such as MZHPU128HCGM and MZHPU512HCGL models of SSD) transfer mode.
About MacBook Air SSD interface standard:
2010 and 2011 version MacBook Air SSD is 6+12 pin, only one side have  contact,size is 109 mm*24 mm.Its SATA interface.
2012 version MacBook Air SSD is 7+17 pin,size is 109 mm*24 mm.2012 version MacBook Pro SSD is 7+17 pin, size is 89 mm*33 mm.Its SATA interface.
2013 and 2014 and 2015 version MacBook Air SSD is both side have contact,one sid
