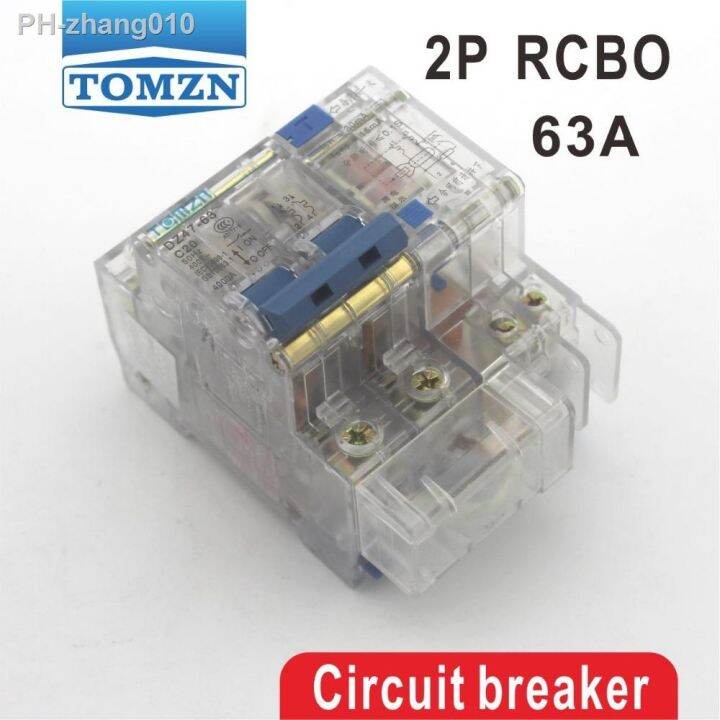

Transparent DZ47LE 2P 63A 230V 50HZ/60HZ Residual current Circuit breaker with over current and Leakage protection RCBO
ข้อมูลสินค้า
ราคา
603.00 314.00 บาท
แบรนด์
No Brand
ร้านค้า

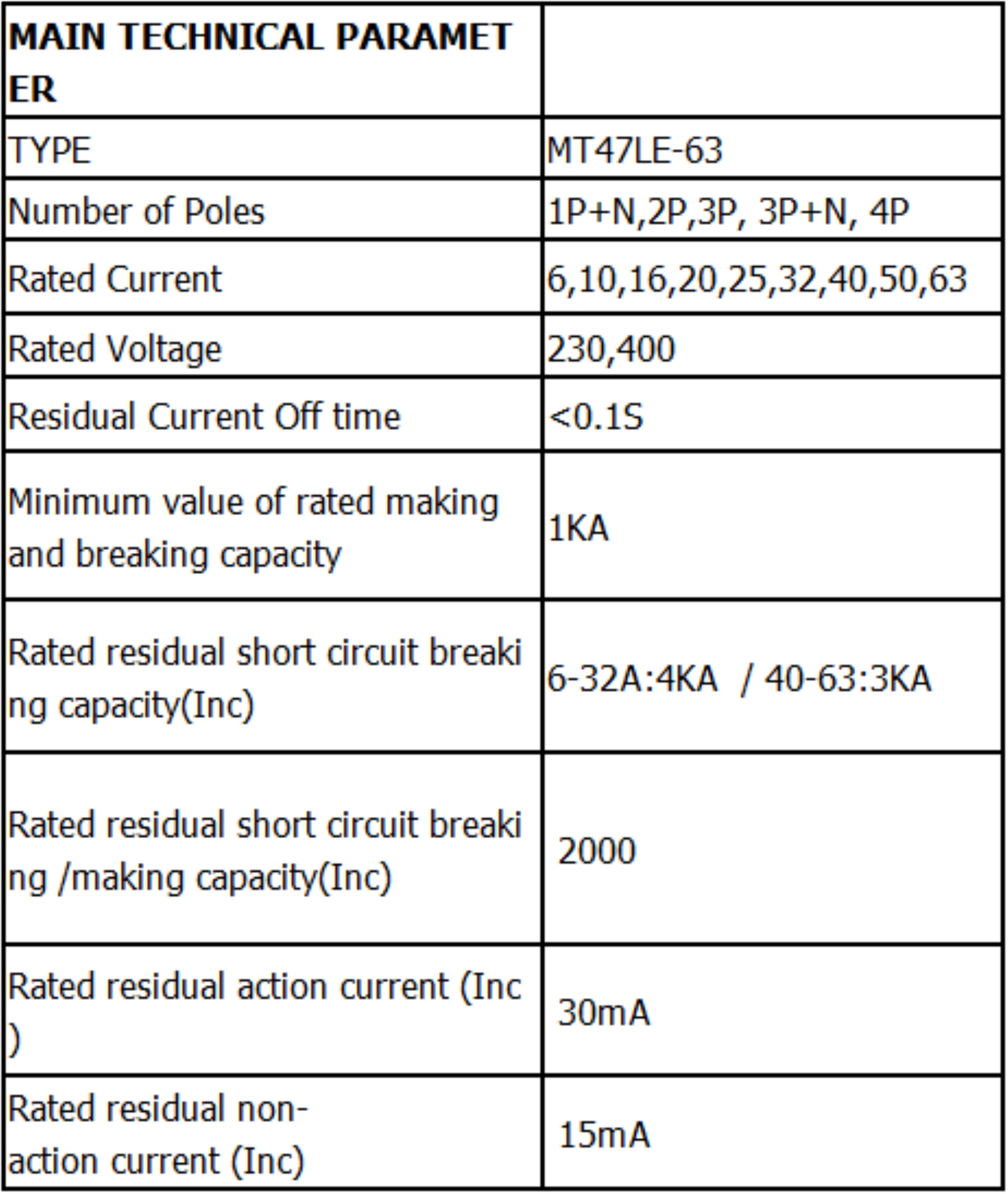

- is-customized：Yes
- Model Number：DZ47LE
- Type：Residual Current
- Brand Name：TOMZN
- Standard：IEC619009 GB6829
- Rated Voltage：230V-
- Rated current：63A

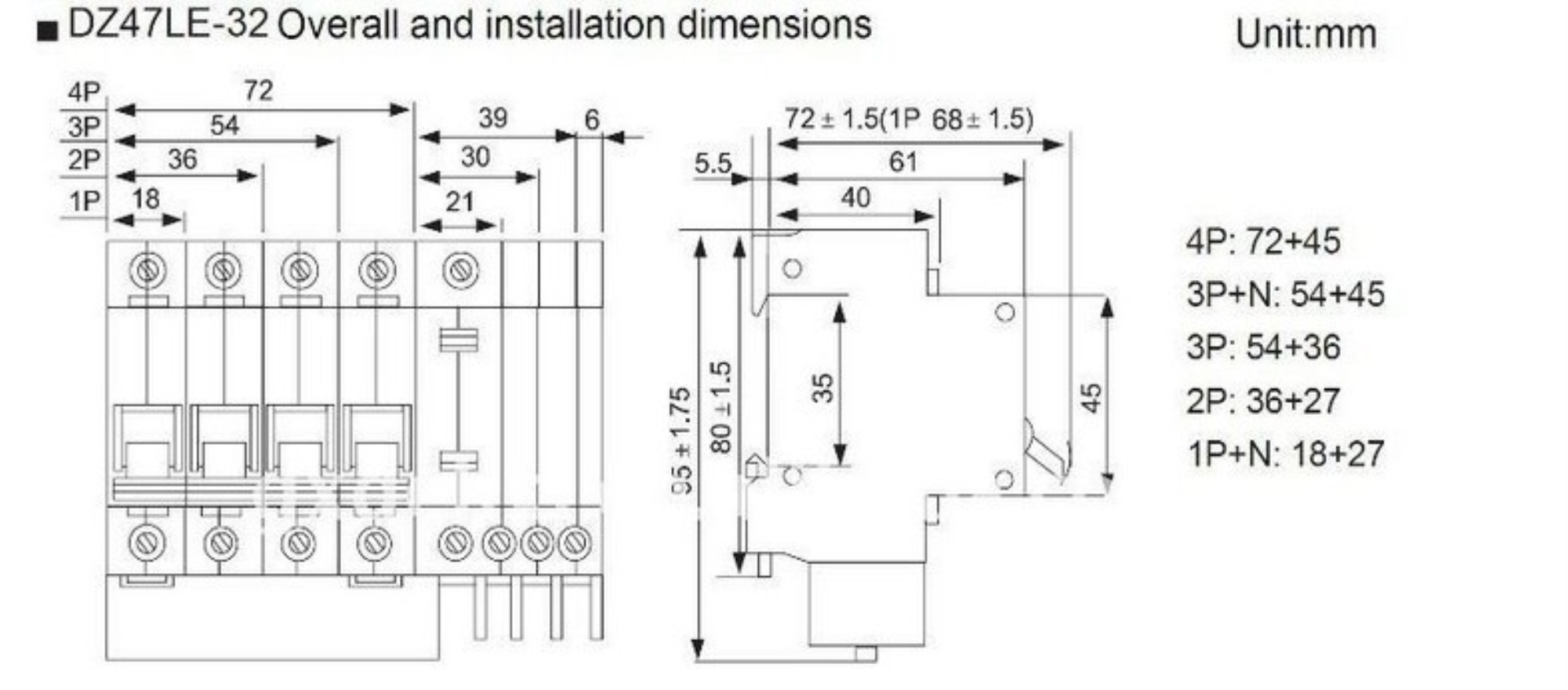

- Mounting：35mm din rail
- Breaking Capacity：4KA
- Charcteristic Curve：C Type
- Please noted there are Chinese on the circiut breaker!!!!!
- This link only for 2P 63A C type.
- Residual current type: AC type

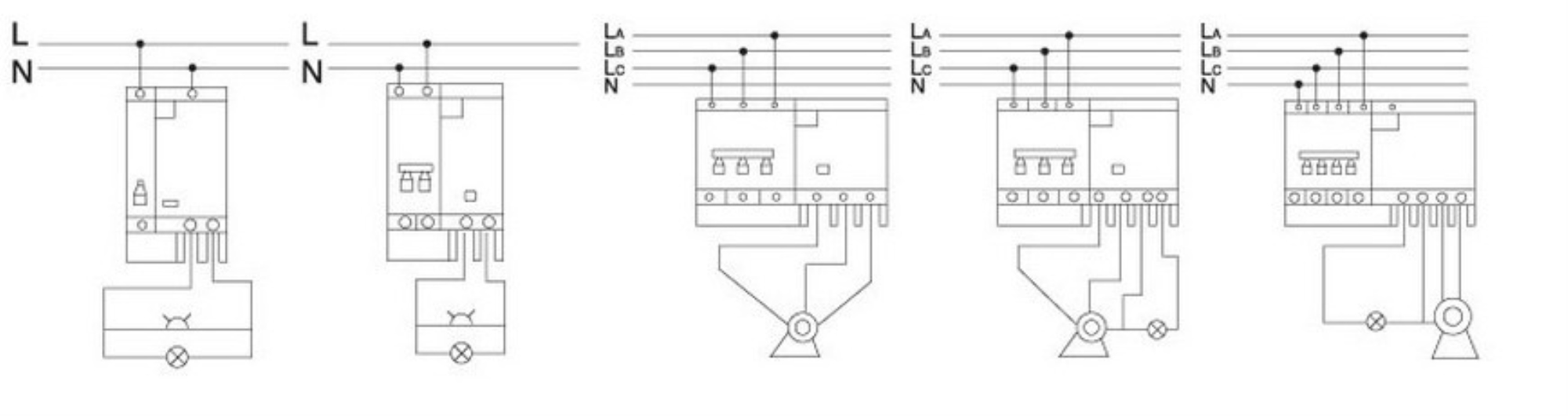

- DZ47LE applicable to a line of AC 50/60Hz rated voltage 230V for single pole two wire 2 pole or 400V for 3 pole 3 pole 4 wire. 4 pole and rated current up to 63A. It can protect the line and motor from overload and short circuit It can also be used for infrequent line conversion and infrequent motor start.It conforms with the standards of IEC61009
- DZ47LE Residual Current Operated Circuit Breaker with over-current protection (Electronic)
- 1. Application
- Personnel and fire protection
- Cable and line protection against overload and short-circuits
- 2. General rules for choosing RCBO:
- a.Rated residual operating current
- In ≤ 30 mA: additional protection in the case of direct contact In ≤300 mA: preventative fire protection in the case of ground fault currents
- b.Tripping class
- AC class - Tripping is ensured for sinusoidal alternating currents whether they be quickly applied or slowly increase.

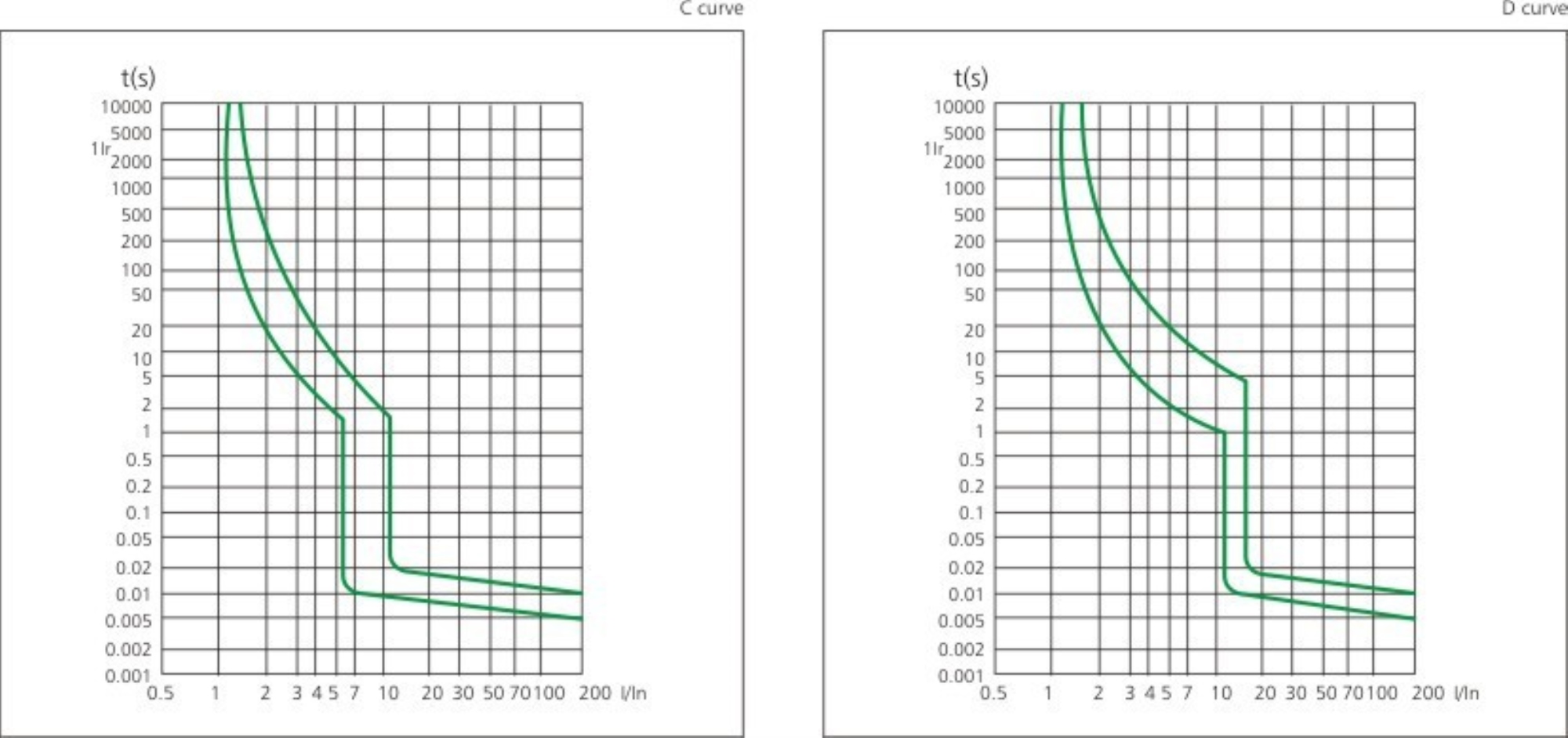

- c.Tripping curve
- C curve (5-10 In) protection and control of the circuits against overloads and short-circuits; protection for resistive and inductive loads with low inrush current.
- D curve (10-14 In) protection and control of the circuits against overloads and short-circuits; protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers breakdown lamps).
