433Mhz DC 3.7V 5V 12V Wireless Rf Remote Control Switch Relay Driver on Off LED Light Strip Remote Switch

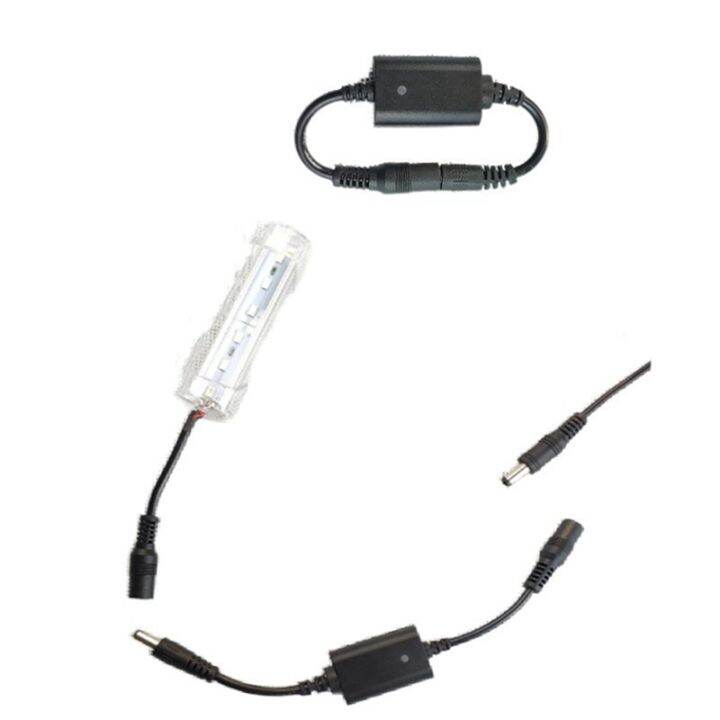

This is a receiver with its own male and female cable, which can be directly connected to the male connector of the power supply and the female connector of the device, eliminating the trouble of wiring. Wide voltage DC3.7V-12V can be used. Input DC3.7V-12V, output DC3.7V-12V,
input DC5V, output DC5V,
input DC12V, output DC12V
Working voltage: DC3.7V-12V wide voltage (DC3.7V 4.5V 5V 6V 7.4V 9V 12V are all possible)

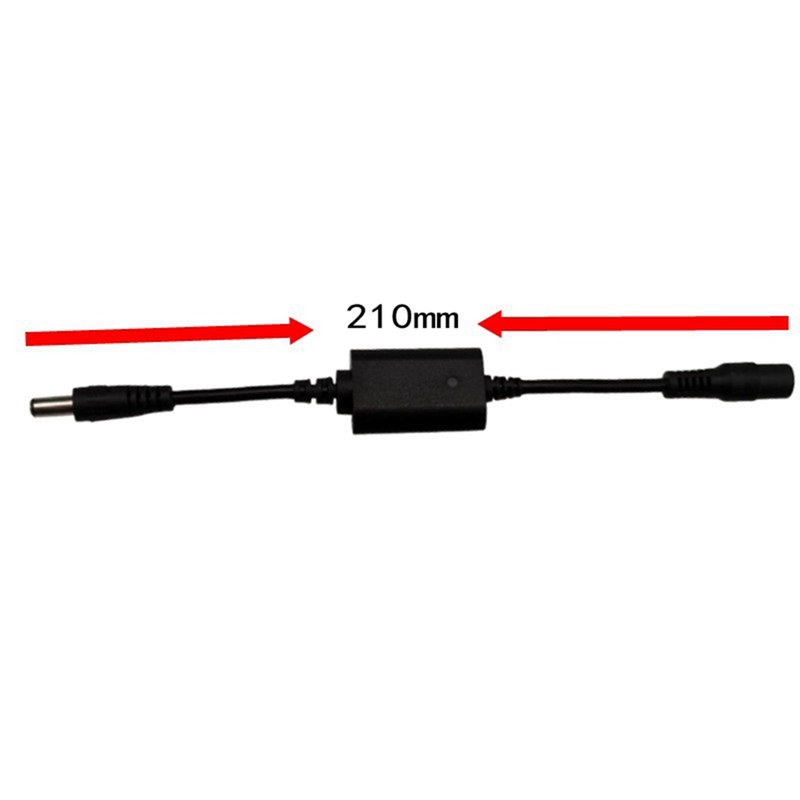

Length: 210mm
Color: black
Material: plastic+metal

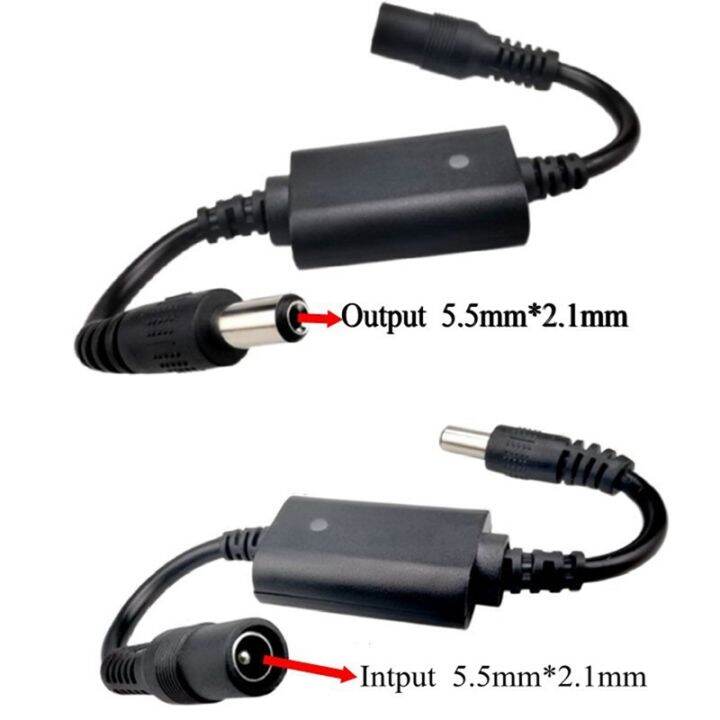

Connector size: male and female 5.5 x 2.1mm
Working mode: MOS tube SCR silent and non-contact (control the on and off of the positive electrode VCC + )
Frequency: 433MHZ
Standby & working current: 6mA
Load capacity: 3A
Weight: 20g

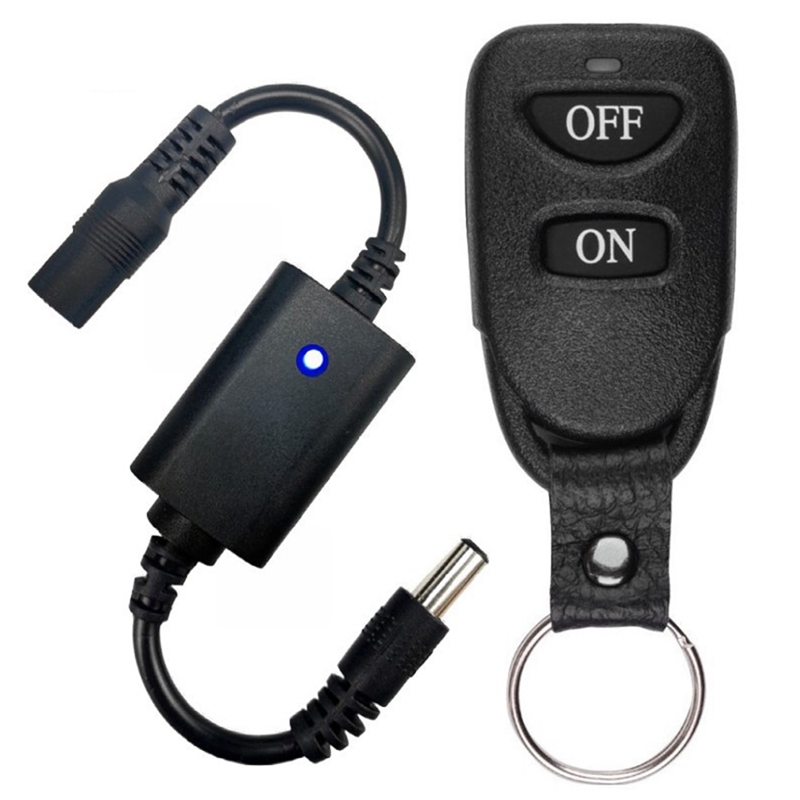

Code pairing method: The receiver has a learning function, can be equipped with a remote control, and can be set for multiple sets of universal
Package Contents:
1 x Receiver A
1 x Remote (2 CR2016 button batteries not included)
