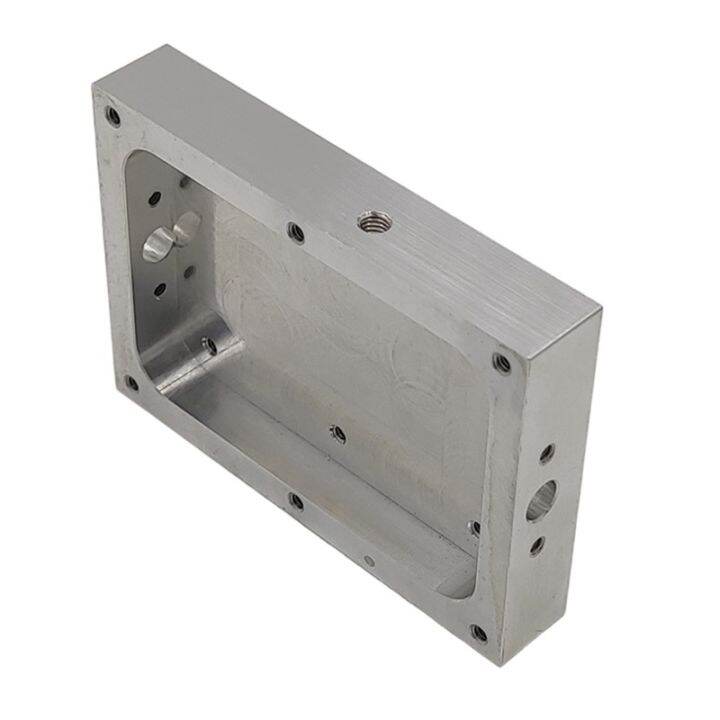

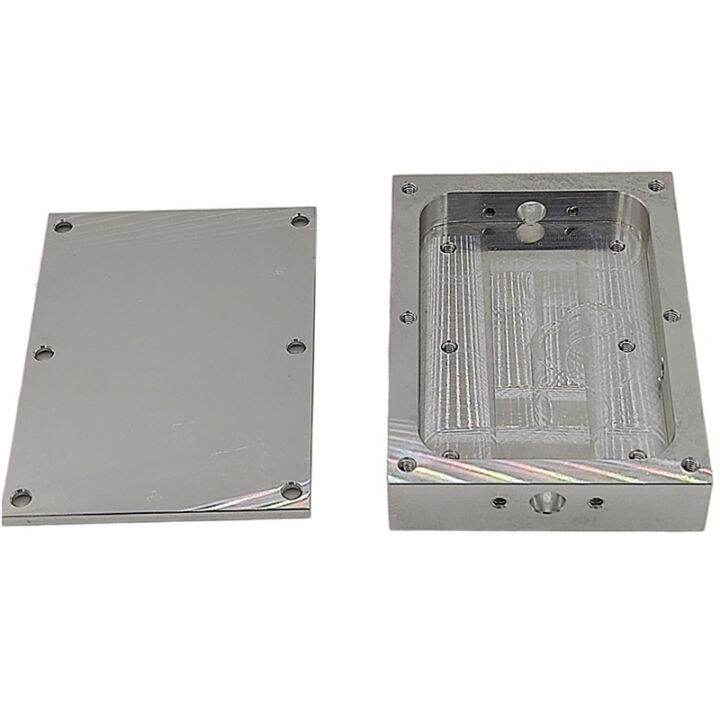

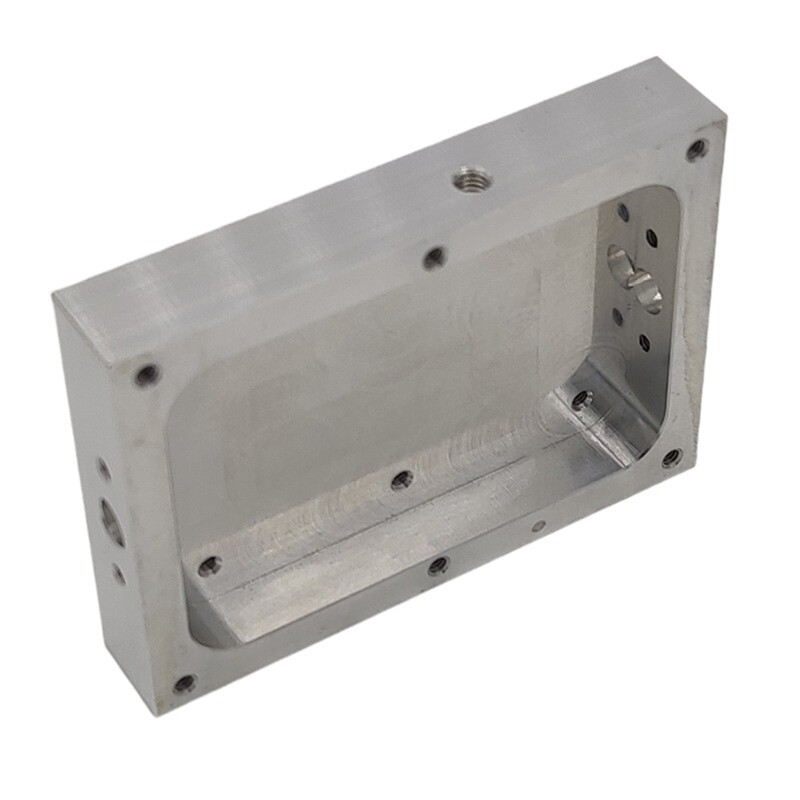

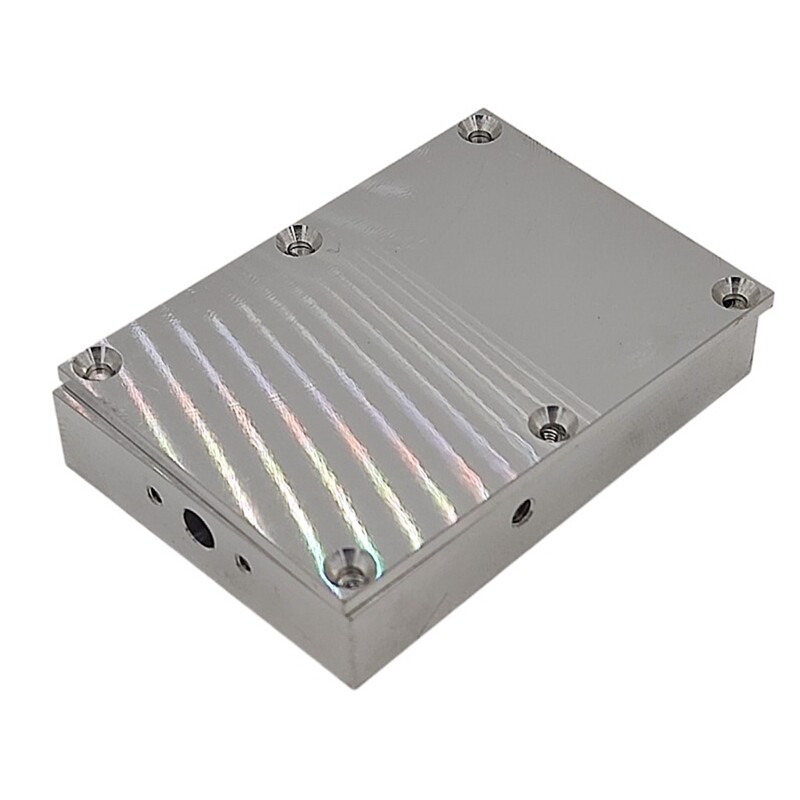

Shielding Case Amplifier Housing Die Cast Aluminum Box Low Noise Amplifier Case CNC
1. Boundary dimension (excluding connector): 56 x 40 x 12mm (box cover 2mm)
2. Chamber size (mainly based on PCB version): 48 x 32 x 6mm, internal chamfer of chamber R=5mm
3. Recommended size of the circuit board: 0.2mm smaller than the size of the cavity (thickness ≤ 1mm)
4. Shell weight: 47g
5. Connector model: SMA-KFD4
Material: PCB
Color as shown
Package Contents:
1 x shielding case
