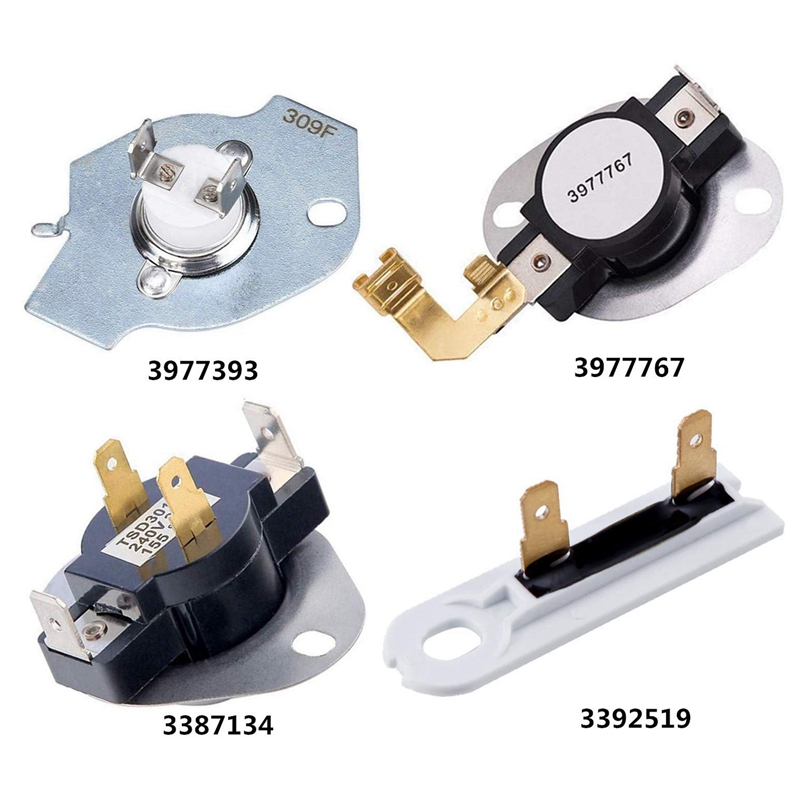

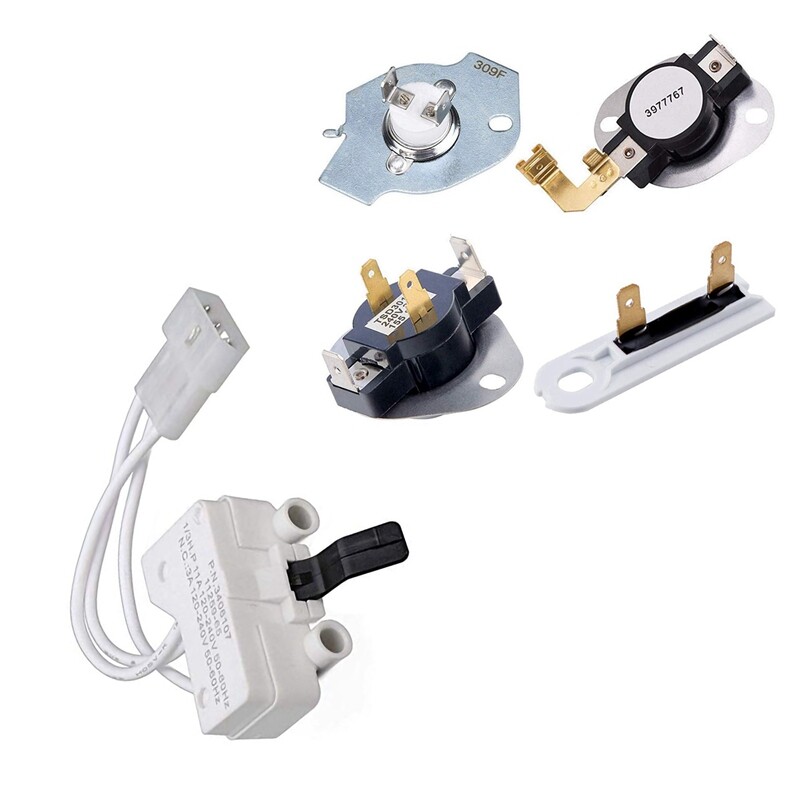

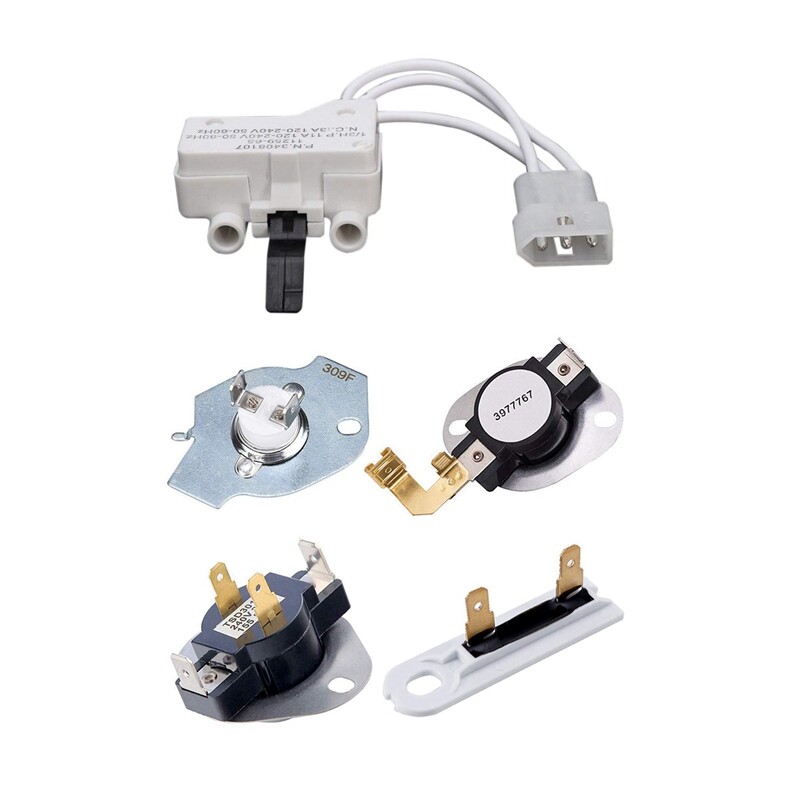

set2: 1 * 3977767 Dryer Thermostat + 1 * 3387134 Dryer Thermostat + 1 * 3392519 Dryer Thermal Fuse + 1 * 3977393 Dryer Thermal Fuse & 1 * Dryer Door Switch

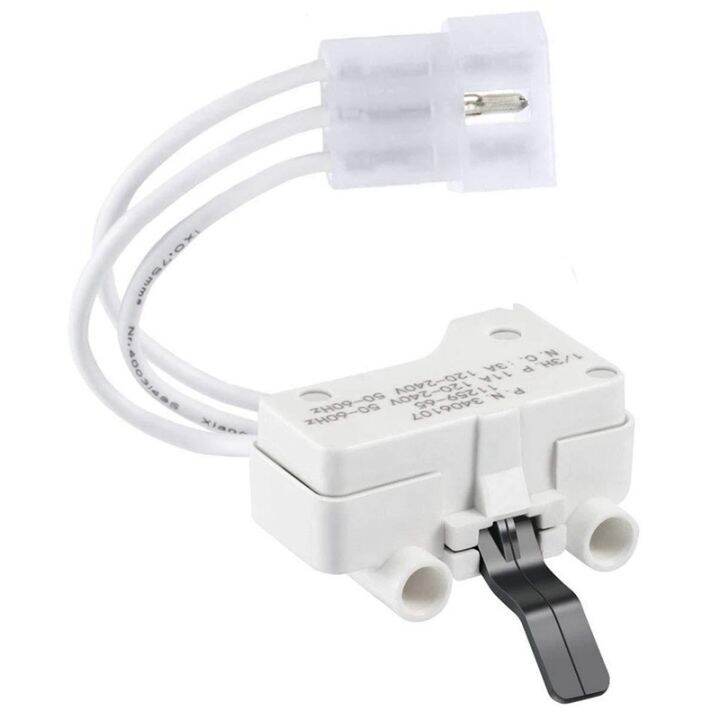

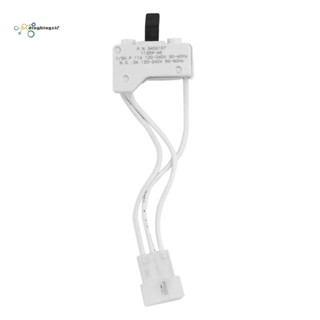

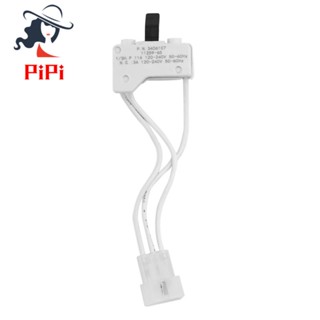

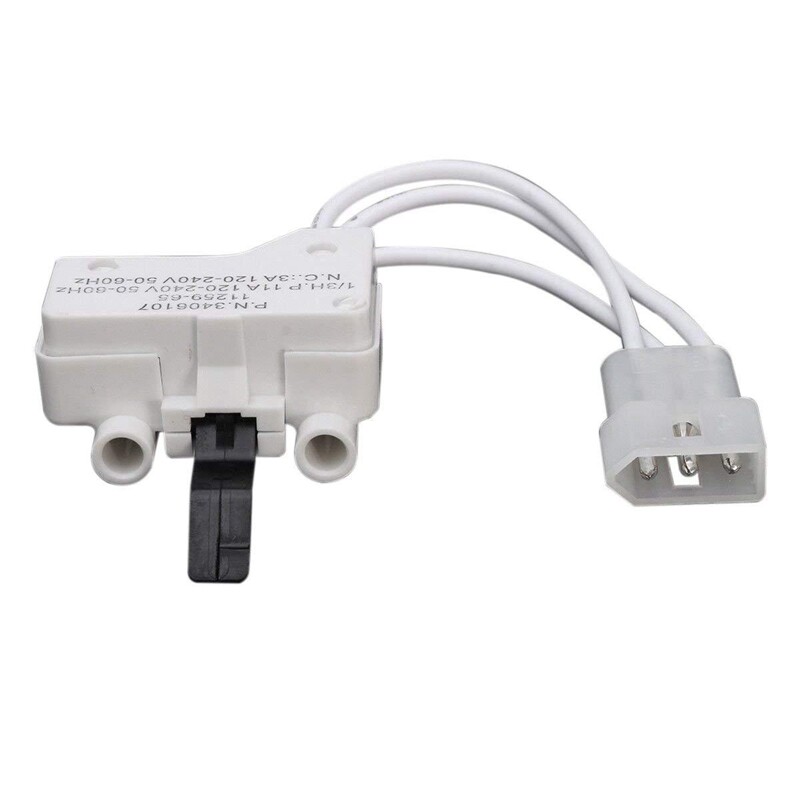

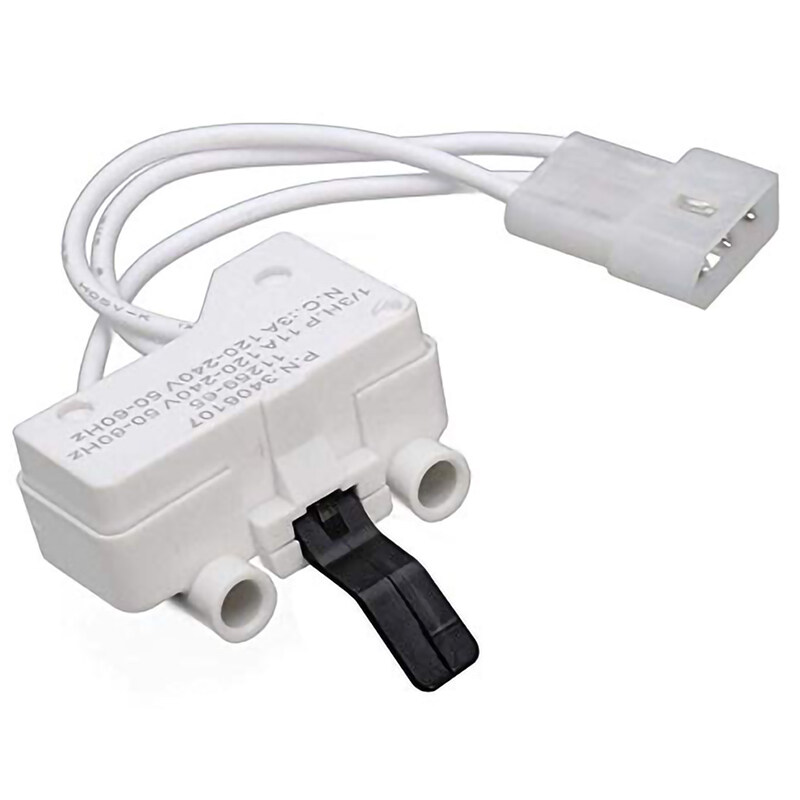

This is a NON-OEM replacement part. A door switch is a simple on/off mechanism that prohibits the dryer from operating when the door is open.Compatible with some Admiral, Amana, Crosley, Estate, Inglis, Kenmore, KitchenAid, Magic Chef, Maytag, Roper, Whirlpool Clothes dryer(s).
It replaces 3406107, 3406105, AP3132865, 3405100, 3405101, 3406100, 3406101, 3406109, 528948, AH346704, EA346704, PS346704, AP2976041, 3406104, 3405104, 3405105, 528947, AH346703, EA346703, PS346703.

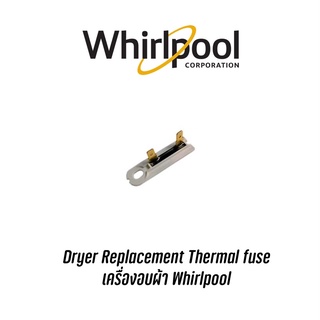

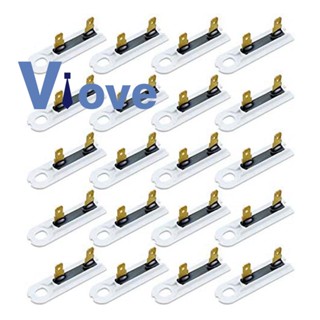

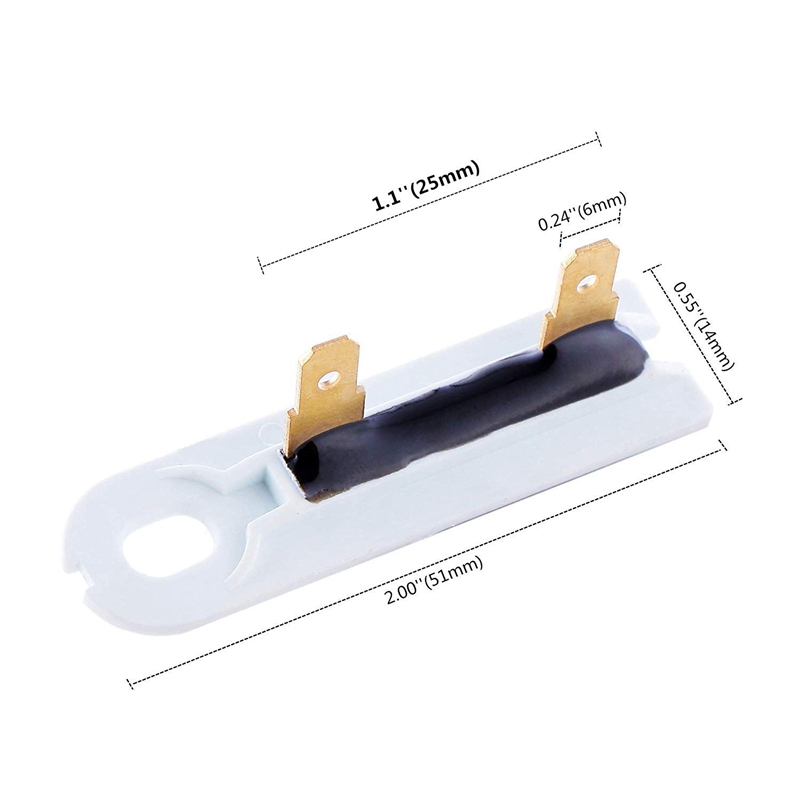

3387134 High limit thermostat when the cycle thermostat temperature failure,the temperature can not be adjusted, when the temperature reaches 155 degrees Celsius, the high limit thermostat will cut off the current. 3392519 The dryer thermal fuse USES the dryer as a safety mechanism that prevents current from flowing to the motor
circuit when the dryer overheats.The hot fuse is disposable and cannot be reused. When your dry thermal fuse helps
you solve the high temperature risk, please replace it in time.
We recommend that you check the vent before replacing it.
Clogged dryer vent can cause fuse damage.

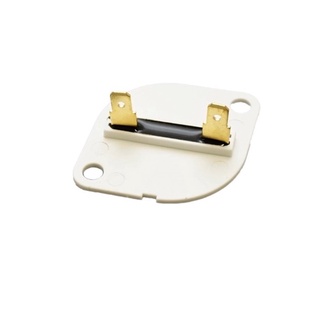

3977393 Tthermal cut-off switch safety assembly is 309F, Compatible if your existing fuse is 325F.
3977767 Cycling Thermostat- It acts as as safety mechanism that keeps the dryer from overheating. Once the dryer temperature reaches 221 degrees Farenheit, this piece will shut down power to the heating elements until it drops by 80 degrees Farenheit.
Note:
Take a picture before removing any parts, so you know how to restore everything at the end;
Before installing this part, unplug the dryer;
Wear work gloves to protect your hands;
The designation of the brand name or model of thi
