หัวต่อลดทอนสัญญาณ

เป็นตัวลดทอนสัญญาณแบบ LC ซึ่งจะใช้ในกรณีที่สัญญาณแรงเกินไป และต้องการลดเพื่อให้เหมาะสมกับการใช้งาน

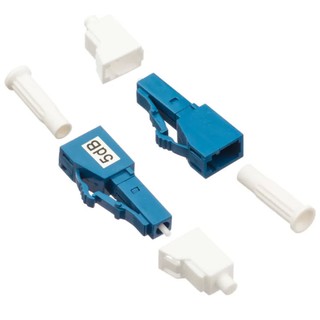

LC/UPC male-LC Female 5dB Attenuator for 1310/1550nm

fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. This is often a requirement in Dense Wave Division Multiplexing (DWDM) and Erbium Doped Fiber Amplifier (EDFA) applications where the receiver cannot accept the signal generated from a high-power light source.

Features

• Metal Ion Doped Fiber

• High-power Light Source Durability

• Wavelength Independence / Precise Control of Attenuation Range

• High Attenuation for Connector & In-line Type Attenuators

• Attenuation Levels Ranging from 1dB to 30dB

• Standard and Premium Tolerances, plus Custom Configurations.

• 1310nm, 1550nm, 1250-1625nm and 1350/1550nm Dual Wave Lengths

Application

• Fiber optical CATV

• Fiber optical telecommunication system

• Fiber optical sensor

• Fttx

• Idea for WDM Application

• Dynamic Power Leveling in Optical

• Dynamic Power Balancing in DWDM Systems

Specification

Connector: LC/UPC male-LC Female

Mode: Single-Mode

Wavelength: 1310/1550nm

Attenuation: 5dB

Return Loss UPC type: 55dB

Polarization Dependent Loss: 0.2dB

Durability: 500 Cycles

Operating Temperature: -40 C - 75 C

Humidity: 75 C 95% RH
