Description:
Digital LCD display for easy readings, can display measured data and graphics.
Rotary switch control, a key measurement for convenient use.
Main chip is the DIP, easy for electronic enthusiasts to DIY or update the main chip.
Use 9V battery(not included), can also use DC power(DC 6.8-12V).
Automatic shutdown, shutdown current is only about 20nA.
Automatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout.
Test NPN and PNP transistor common-emitter current amplification factor, the base-emitter threshold voltage, off the collector - emitter leakage current.
Support 2 resistors measurement, show its positive and negative, on-state voltage.
Resistance measurement maximum resolution 0.01ohm, can be measured up to 50Mohm.
Automatically test the pins of a component and show on the display.
Measure FET gate threshold voltage and gate capacitance.
For the following 2100Ω resistor while measuring its inductance measuring range from 0.01mH - 20H.
Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHz and can generate 1%-99% PWM(pulse width modulation) signals.
Notice:
Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.
Specifications:
Display: 160*128 LCD
Power Supply: 1 * 9V Battery(not included); DC 6.8-12V
Current: Approx. 30mA
Resistance Measurement: Max. 50Mohm
Resistance Resolution: 0.01ohm
Capacitance Measurement: 25pF~100mF
Capacitance Resolution: 1pF
DC Voltage Measurement: Up to 50V
Screen Size: 3.7 * 3cm / 1.45 * 1.18in
PCB Size: 7.8 * 6.2cm / 3.1 * 2.44in
Package Included:

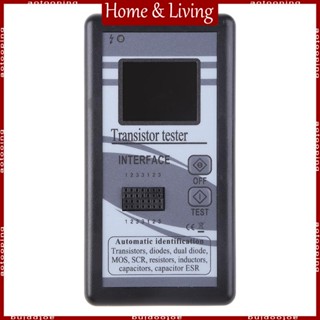

1 x GM328 Mega328 Transistor Tester
1 x Acrylic Case
