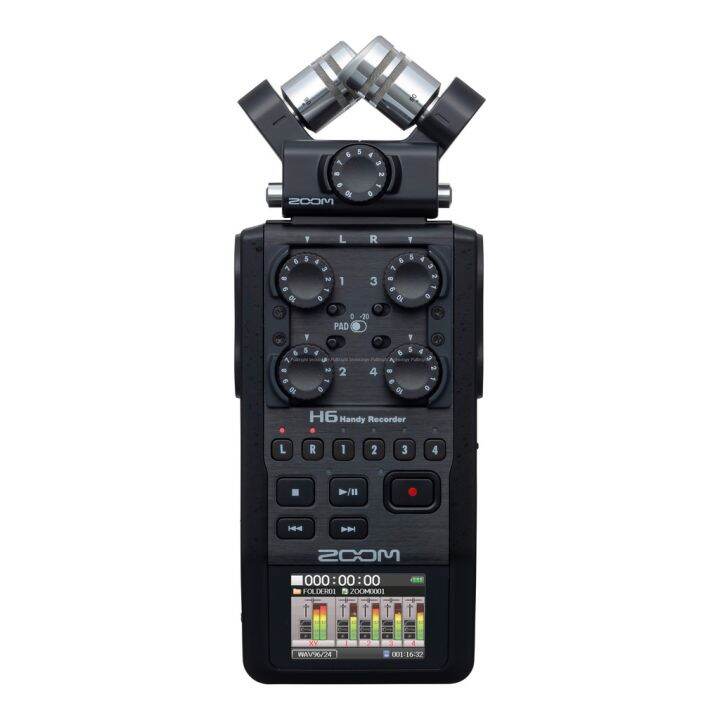

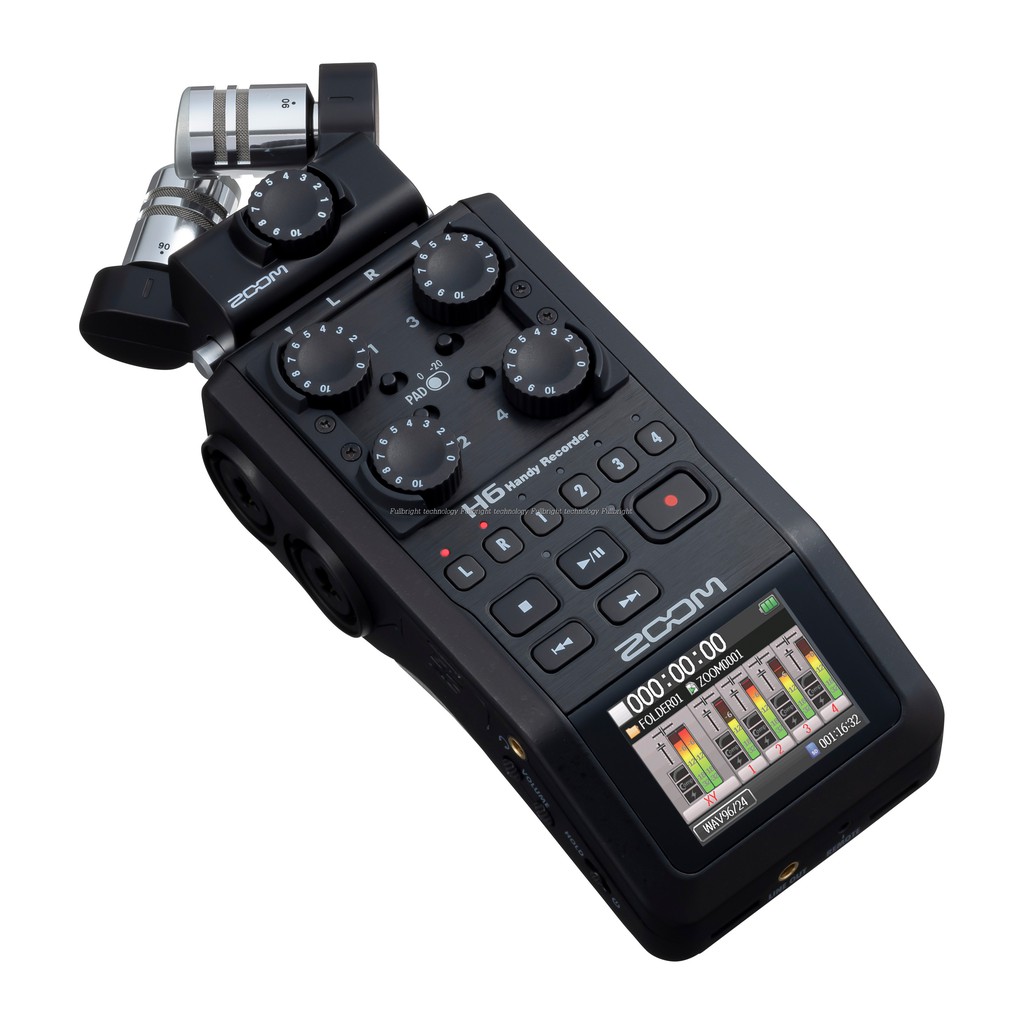

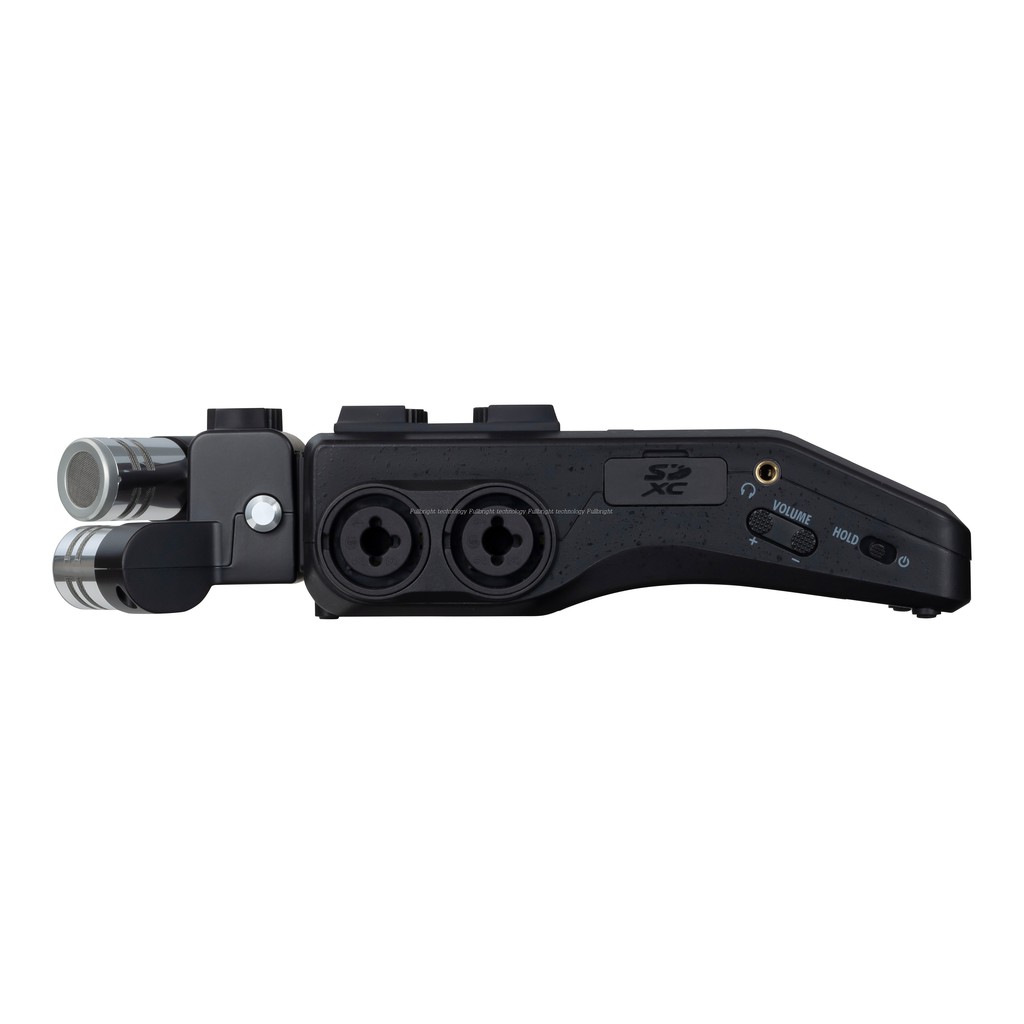

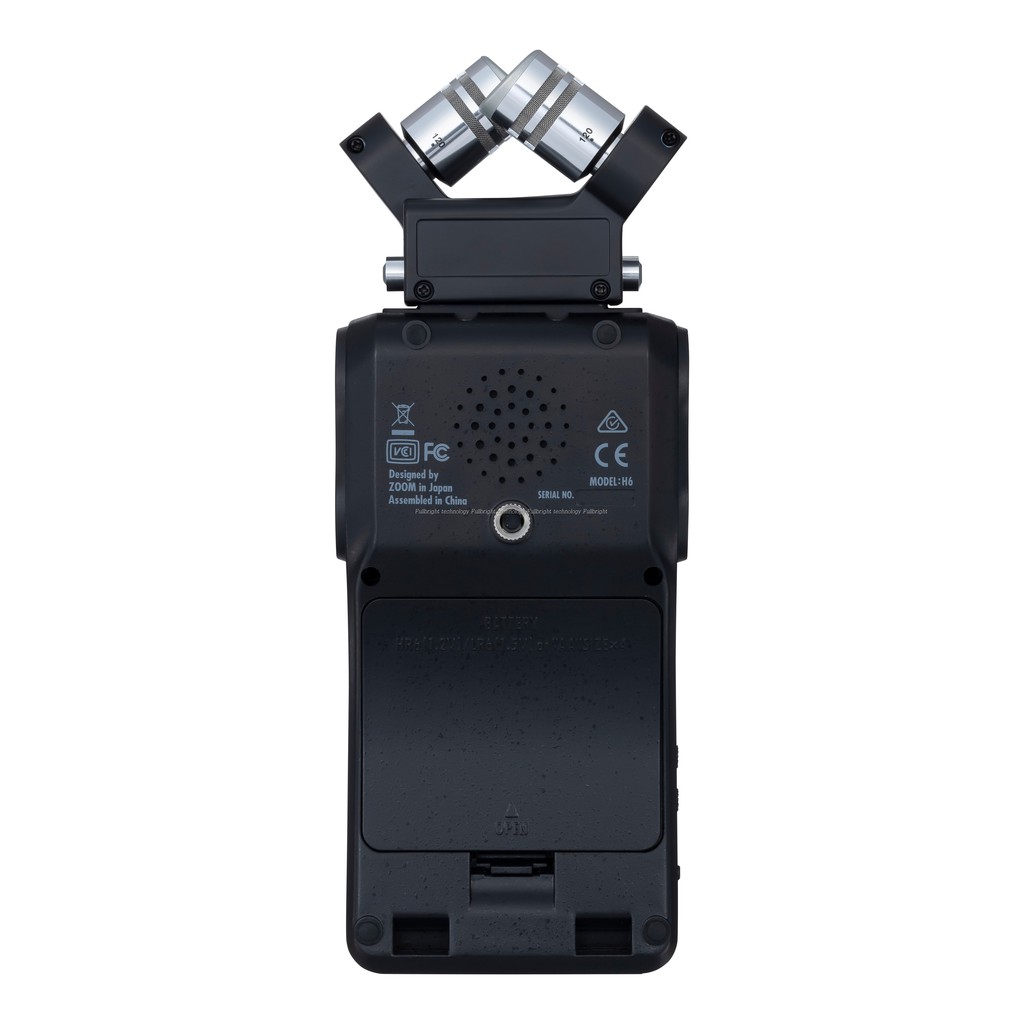

เครื่องบันทึกเสียง Zoom H6 Recorder หัวไมค์เปลี่ยนได้หลายรูปแบบ มีไมค์สเตอริโอ และ Mid-Side ให้ในชุด รองรับสัญญาณ XLR/TRS 4 แชนแนล บันทึกพร้อมกันได้สูงสุด 6 แชนแนล ความละเอียดสูงสุด 24 บิท 96 kHz สามารถใช้เป็น USB Audio Interface ได้ บันทึกลง SDXC Card Interchangeable input capsules Six-track simultaneous recording Four mic/line inputs with XLR/TRS combo connectors Gain control knobs and -20dB pads for each input Supplied XYH-6 X/Y capsule provides secondary input via a stereo ⅛” Mic/Line In mini phone jack Phantom power for all main inputs: +12/+24/+48V Large full-color, angled LCD display Records directly to SD, SDHC and SDXC cards up to 128GB Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats Auto-record, Pre-record and Backup-record functions mean that youll never miss that perfect take Built-in effects, including low-cut filtering, compression, and limiting Multichannel and stereo USB audio interface for PC/Mac/iPad Accepts standard AA alkaline or NiMH rechargeable batteries Over 20 hours of operation with 4 AA alkaline batteries Heres what comes included with the H6. •H6 Handy Recorder •XYH-6 X/Y mic capsule •4x AA batteries •Quick Guide RECORDER Recording Media SD card: 16 MB to 2 GB SDHC card: 4 GB to 32 GB SDXC card: 64 GB to 128 GB Input Connections 4 x XLR/TRS combo jacks; XLR: Pin 2 hot; TRS: Tip hot 1x 1/8″ stereo mini jack (XYH-6 MIC/LINE IN) Input Gain -? to 55.5 dB (PAD OFF) -? to 35.5 dB (PAD ON) Input Level -? to 46.5 dB (XYH-6 MIC/LINE IN) Input Impedance 6.8 k? (INPUTS 1 to 4) 2 k? (XYH-6 MIC/LINE IN) Maximum Input Level +22 dBu, PAD ON (INPUTS 1 to 4) Phantom Power +12V /+24V /+48V, independent (INPUTS 1 to 4) 2.5V plug-in power, (XYH-6 MIC/LINE IN) Equivalent Input Noise -120 dBu or less Output Connections 1x 1/8″ stereo mini jack (LINE OUT) 1x 1/8″ stereo mini jack (PHONE OUT) Output Level -10 dBu when output load impedance is 10 k? or more (LINE OUT) 20 W +20 W into 32 ? load (PHONE OUT) Built-in Speaker 400mw 8 ? mono speaker Recording Formats WAV, MP3 Sample Rate 44.1/48/96 kHz (WAV) 44.1 kHz (MP3) Bit Depth 16, 24 (WAV) Bit Rate 48/56/64/80/96/112/128/160/192/224/256/320 kbps (MP3) Max Simultaneous Recording 8 (L/R + INPUT 1 to 4 + L/R backup), backup recording: -12dB lower than set L/R input gain (WAV) -or- 2 (MP3) Recording to SD Card With 2 GB card: 03:08:00 (44.1 kHz / 16-bit WAV) 34:43:00 (128 kbps MP3) Display 2.0-inch full color LCD (320 x 240 pixels) USB Port Mass Storage Class operation: USB 2.0 high speed -or- Audio Interface operation, multi-track mode: USB 2.0 high speed, multi-track or stereo modes Power Requirements AA size (LR6) battery x 4 AC adapter: AD-17 (DC5V/1A/USB-type) (optional) USB bus power Battery Life Over 20 hours (with alkaline battery, continuous recording) Dimensions 3 x 6 x 1.9″ (77.8 x 152.8 x 47.8 mm) Weight 9.9 oz (280 g) MICROPHONE Type XYH-6 X/Y: Unidirectional MSH-6 MS: Unidirectional and bi-directional Sensitivity XYH-6 X/Y: -41 dB, 1 kHz at 1 Pa MSH-6 MS: -37 dB, 1 kHz at 1 Pa (unidirectional); -39 dB, 1 kHz at 1 Pa (bi-directional) Input Gain XYH-6 X/Y: -? to 46.5 dB MSH-6 MS: -? to 42.5 dB Maximum SPL XYH-6 X/Y: 136 dB SPL MSH-6 MS: 120 dB SPL (unidirectional) 122 dB SPL (bi-directional) Dimensions XYH-6 X/Y: 3.1 x 2.4 x 1.8″ (78.9 x 60.2 x 45.2 mm) MSH-6 MS: 2.3 x 2.66 x 1.65″ (58 x 67.6 x 42.1 mm) Weight XYH-6 X/Y: 4.6 oz (130 g) MSH-6: 3 oz (85 g)
